Description

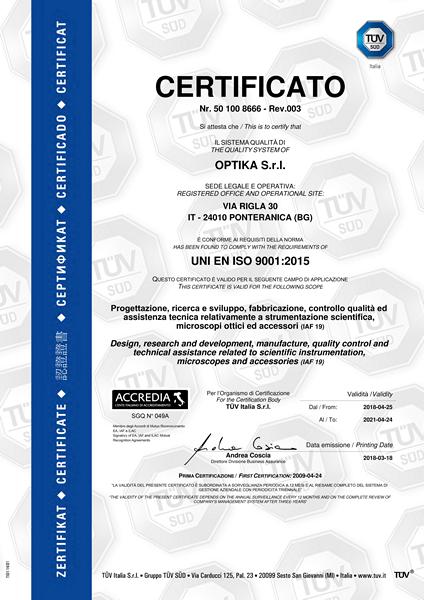

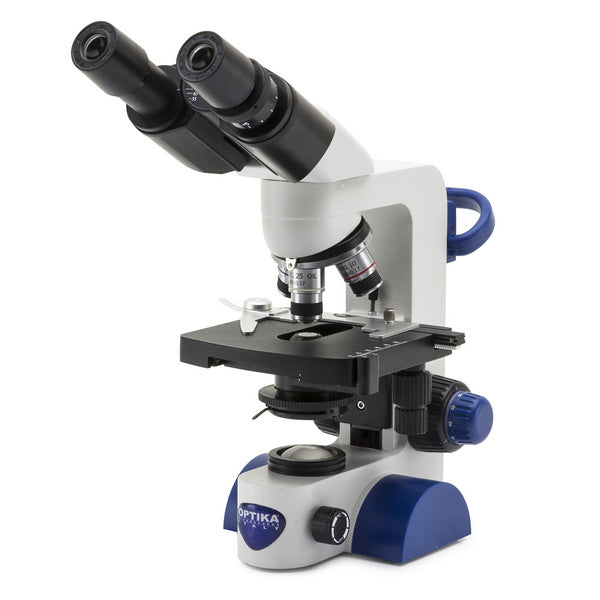

The Optika B-60 series of microscopes is represented by a wide range of optical devices intended primarily for students and laboratory assistants of higher educational institutions. The presence of special hand rests and a carrying handle indicates special attention to the ergonomics of the microscopes. The innovative protective coating of the StagErase™ stage, energy-efficient LED illumination and reliable mechanics and a cast metal body will allow you to regularly use Optika B-60 microscopes for a long time. The characteristics and design features of the Optika B-69 40x-1000x Bino binocular microscope allow you to use this model for professional activities. Like all professional devices, this model has coarse and fine coaxial focusing, an Abbe condenser with an iris diaphragm, and dioptric adjustment is implemented on each of the eyepiece tubes. The microscope has the ability to operate autonomously from a built-in battery. Control of materials and production process complies with the requirements of the ISO 9001:2008 quality system.

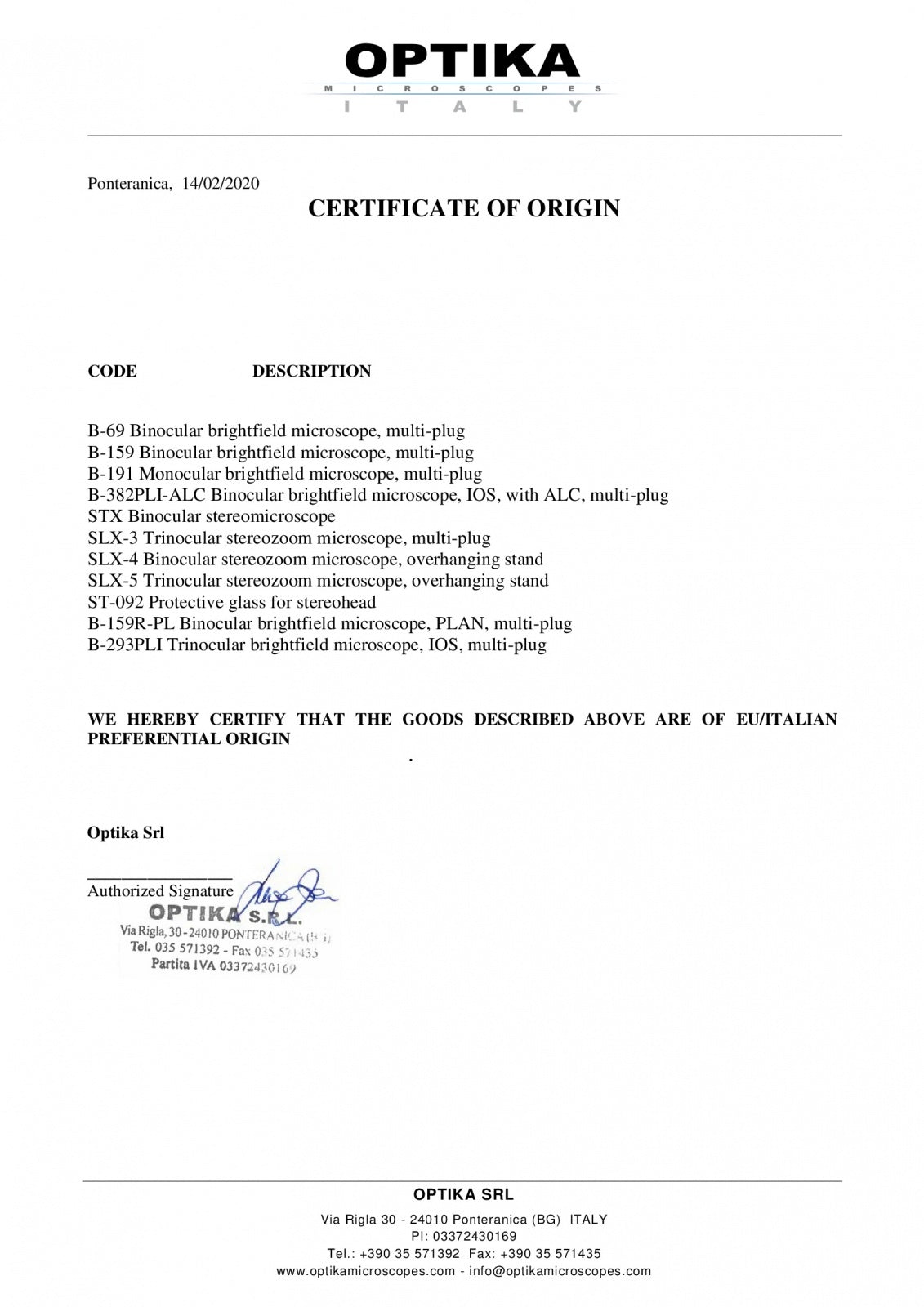

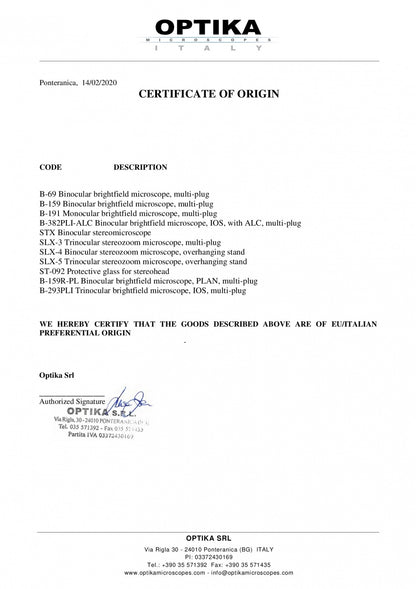

All Optika SRL products are made in Italy. Optika microscopes are developed, manufactured and assembled in the small town of Ponteranica (Bergamo province). Each microscope is accompanied by an individual serial number indicated on the body and in the warranty card, as well as a mark on the final quality control. All products comply with the basic requirements of the relevant European EU directives and European Union standards.
LED illumination: Correct color rendering of the image is one of the two most important factors in light microscopy. The Optika B-69 40x-1000x Bino microscope is equipped with focused LED illumination. The LED has a color temperature of 6300K, which corresponds to natural daylight. Thus, the image is devoid of excessively yellow coloring caused by the light of a halogen lamp. An undeniable advantage is its economy: the energy consumption of the LED is only 10% of that of a halogen lamp of similar brightness. The LEDs have a color temperature of 6300K, which corresponds to natural daylight. Thus, the image is devoid of excessively yellow coloring caused by the light of halogen lamps. The service life of the LEDs is 65,000 hours, which is 22 years with daily 8-hour use (which is 20 times more than the most efficient halogen lamps).
Classification:
- Type: optical
- Classification: biological
- Microscopy method: bright field
- Purpose: professional, educational
Optical characteristics:
- Magnification: from 40x to 1000x
- Objective magnification: 4x, 10x, 40, 100x
- Eyepiece magnification: 10x
Design features:
- Attachment: binocular (360º rotation, 30º tilt)
- Interpupillary distance adjustment, mm: 55-75
- Diopter adjustment: ±5 on both eyepieces
- Revolving head: for 4 lenses
- Lenses: DIN, with multi-layer anti-reflective and anti-fungal coating
- Lens correction degree: achromat
- Eyepieces: wide-angle (linear field of view 18 mm) with anti-reflective coating
- Eyepiece mounting diameter, mm: 23.2
- Object stage: StagErase™ movable 125x125 mm, with specimen guide and vernier (division value 0.1 mm, movement range 62x24 mm)
- Body: aluminum alloy
- Focusing: coaxial, coarse and fine (division value 0.012 mm)
- Backlight: LED transmitted light (SMD LED 1W, 6300K)
- Brightness control: smooth
- Condenser: Abbe, 1.25 NA, height adjustable
- Aperture diaphragm: iris
- Filter holder, mm: 32
- Possibility of autonomous operation: from a rechargeable battery
Equipment:
- Microscope: 1pc
- Objectives: DIN Achromatic (4/0.10 160/0.17, WD10.46 mm; 10/0.25 160/0.17, WD7.00 mm; 40/0.65 160/0.17, WD0.5 mm; S100/1.25 160/0.17, WD0.13 mm OIL): 4 pcs.
- Eyepieces: WF10x/18mm: 2 pcs.
- Eyepiece covers: 2 pcs.
- Immersion oil: 1 bottle (10 ml)
- Protective case: 1pc
- Network adapter: (Input: 100-240V, 0.3A; Output: 5V, 500mA, length: 1.6m): 1pc
Additional recommended accessories:
- Eyepiece M-001 H5x
- Eyepiece M-003.2 WF15x/12mm
- Eyepiece M-004.2 WF10x/18mm (23 mm) micrometr
- Eyepiece M-004.2 WF10x/18mm (23 mm) pointer
- M-133 20x/0.40 Achromatic Lens
- M-136 60x/0.85 Achromatic Lens
- Polarization kit (analyzer, polarizer) M-155.2
- Immersion oil 15008 (10ml)
- Micrometer object M-005 (0.1mm/0.01mm)
- Cleaning kit 15104
Nutrition:
- AC power supply: 220/240V
- Battery: 1.2V NiMh 800 mA (3 x AAA) included
- Full charge time: 8 hours
- Maximum battery life: 14 hours
Dimensions and weight:
- Linear dimensions of the microscope, mm: 320x225x160
- Dimensions in packaging, mm: 390x285x210
- Weight of microscope, kg: 2.9
- Weight in packaging, kg: 4.06

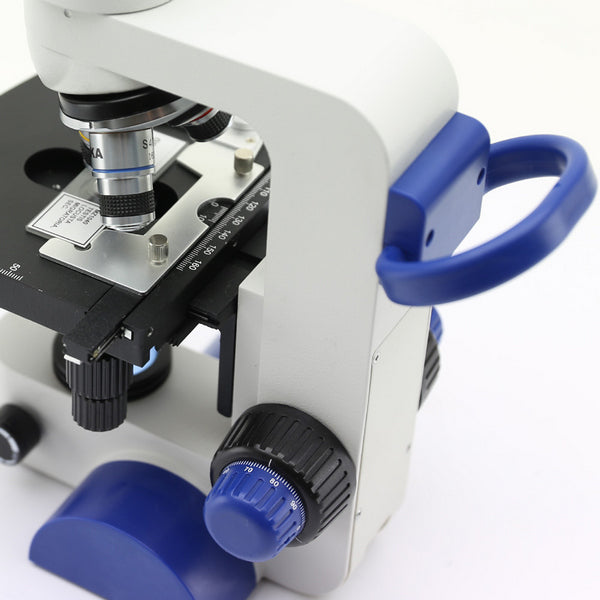

Despite the fact that the Optika B-69 40x-1000x Bino microscope belongs to the budget line of the manufacturer, the model has certain design features inherent only to the B-60 series microscopes. Special attention should be paid to the special hand rests, which allow you to remove tension from your wrists during long routine observations. In addition, the body is equipped with a handle located at such an angle that when carrying the microscope, the eyepieces do not fall out of the binocular attachment. The sole of the microscope has silicone inserts that prevent slipping.
Convenient observation is ensured by the tilt of the binocular attachment at an angle of 30º. The fully rotating attachment allows observation through the microscope from any convenient position without changing the position of the device in space. Image sharpness is achieved using coaxial fine and coarse focusing screws.
It is worth noting that diopter correction is provided for each eyepiece separately. Thanks to this, additional microfocusing can be performed, as well as the microscope can be adjusted to individual vision characteristics.
The LED illumination is smoothly adjusted in brightness using a brightness regulator and in intensity using an iris aperture diaphragm. The diaphragm is equipped with a filter holder with a diameter of 32 mm. A movable Abbe condenser with a numerical aperture of 1.25 makes it possible to accurately transfer the light projection to the plane of the observed sample and effectively use a 100x objective without loss of image resolution.

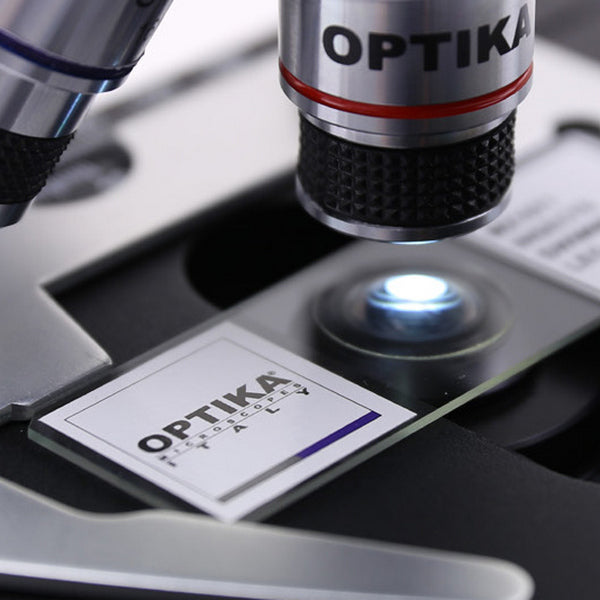

The innovative StagErase™ coating protects the stage from scratches. The stage itself is equipped with a movable specimen guide with a vernier scale and micrometer screws.
The microscope provides a wide range of magnifications from 40x to 1000x. The 40x and 100x objectives have a spring-loaded design that prevents damage to the objective or sample when the stage is raised excessively. The 100x OIL objective is recommended to be used only as an immersion objective. To increase resolution at high magnifications, the condenser can also be used as an immersion objective. The surface of the eyepiece tubes is covered with a black anodized Type III coating that reliably resists abrasion and corrosion on the outside and does not allow unwanted reflections on the inside.
It is intended for entry-level laboratory research in various fields of science and medicine. It is ideal as a teaching device for students of specialized educational institutions, as a professional device for university teachers. It is recommended for educational and scientific laboratories.
The Italian company OPTIKA SRL has been one of the leaders in the production of professional microscopes and accessories covering almost all areas of microscopic research for 50 years. The company constantly strives for innovation and cares about its customers, not forgetting about the high quality of the product, convenience and ease of use. With proper use, Optika microscopes are designed for many years of operation.
Manufacturer: Optika (Italy)
| Manufacturer code: 927601 Parameters: Warranty: 10 years Country of brand registration: Italy Country of origin: Italy Package contents: Microscope: 1 pc;Objectives: DIN Achromatic (4/0.10 160/0.17, WD10.46 mm; 10/0.25 160/0.17, WD7.00 mm; 40/0.65 160/0.17, WD0.5 mm; S100/1.25 160/0.17, WD0.13 mm OIL): 4 pcs;
Eyepieces: WF10x/18mm: 2 pcs;
Eyepiece covers: 2 pcs;
Immersion oil: 1 bottle (10 ml);
Protective cover: 1pc;
Network adapter: (Input: 100-240V, 0.3A; Output: 5V, 500mA, length: 1.6m): 1pc Power supply: battery 220/240 V Backlight: LED (transmitted light) Focusing: Coaxial Coarse Fine with tension control and locking mechanism Object table: Movable with specimen guide and vernier Tilt: 30º Rotation: 360º Head: Binocular Eyepiece magnification: 10x Lens magnification: 4x, 10x, 40x, 100x Microscope magnification: 40x - 1000 Class: Biological Type: Optical Type: Microscopes
