Description
The B-510 series microscopes have replaced the well-proven 500 series. The class of the optical system has not changed and the microscopes still meet the high standards of laboratory optics for daily routine observations. At the same time, improvements are present everywhere. The design has been completely changed, which has led to improved ergonomics. The transverse drive of the stage has been improved, and the stage itself has been enlarged. LEDs with an extended service life are used for illumination. The optical design of the immersion objective allows using ordinary water as an immersion liquid without losing resolution. Based on the B-510 series, a wide range of brightfield, darkfield, fluorescence, polarization, metallographic and phase-contrast microscopes for single and group observations is offered. All B-510 series microscopes use an effective X-LED3 LED illumination system, which is Optika's own development. The microscopes have a 10-year warranty!

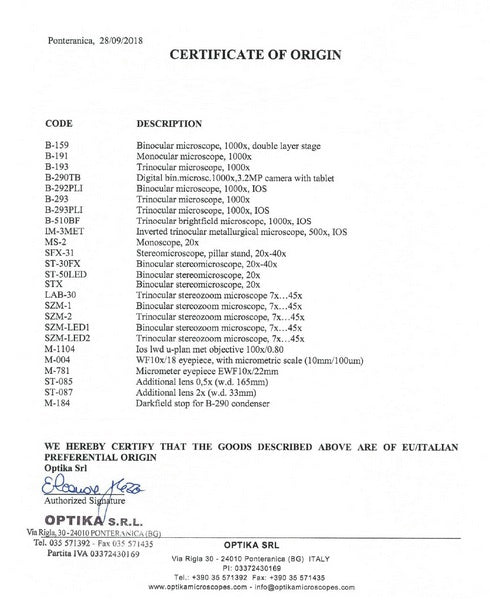

All Optika SRL products are made in Italy. Optika microscopes are developed, manufactured and assembled in the small town of Ponteranica (Bergamo province). Each microscope is accompanied by an individual serial number, indicated on the body and in the warranty card, as well as a mark on the final quality control. All products comply with the basic requirements of the relevant European EU directives and European Union standards.
Optical resolution largely depends on the correct illumination. Modern microscope optics are so perfect that it is difficult to invent something revolutionary new, while the leap in the development of LED technologies opens up wide opportunities in microscopy. Optika presents the next step in improving lighting - professional subject LED illumination X-Led3. A highly efficient 3.6W LED creates the necessary luminous flux for full illumination of contrast samples at maximum magnification (equivalent to a 50W halogen lamp). The LED is combined with a reflector of complex geometry and a specially designed optical lens, which allows to significantly improve the intensity, homogeneity and direction of the produced light. Unlike traditional halogen lamps, the luminous flux obtained when using the X-Led3 system has a bright white glow with a color temperature of 6300K, which corresponds to natural daylight. Thus, the image is devoid of excessively yellow coloring from the light of a halogen lamp. At the same time, the LED is extremely economical compared to a halogen lamp of similar brightness, both in terms of energy consumption (it consumes 90% less energy) and in terms of service life (65,000 hours compared to 1,500 hours of operation).
Köhler illumination is currently the most advanced serial illumination scheme in modern microscopy. The main components of Köhler illumination are: collector lens, field diaphragm, aperture diaphragm, and movable condenser. The main advantages of Köhler illumination are: extremely uniform illumination of the sample over the entire field, projection of illumination precisely onto the plane of the sample, adjustment of depth of field, contrast, maximum achievable resolution, absence of artifacts (re-reflections of illumination elements).
A planachromat is an objective lens that has corrected field curvature, chromatic aberration, and chromatic difference in magnification. This design allows for the production of objectives of different magnifications with equally well-corrected aberrations using the same design. Such objectives produce a sharp and clear image across the entire field and are ideal for photomicrography. Wide-field eyepieces also work well with such objectives.
In the IOS infinity-corrected optical system, the light waves that form the image of the object pass from the objective to the tube lens in a strictly parallel beam. This optical design offers two main advantages. First, it allows the addition of special optical components (polarizers, spectrum splitters, vertical illuminators) between the objective and the tube without changing the optical path of light. Consequently, the magnification and parfocal properties of the objectives do not change, and no additional aberrations are introduced from the correcting elements. Second, the residual geometric aberrations of the objective are corrected by the optical tube lens. The image is clear and has the correct ratio of geometric dimensions. The microscope can be modified for the required studies without loss of image quality.
Classification:
- Type: optical
- Classification: biological
- Microscopy method: bright field
- Purpose: professional
Optical characteristics:
- Magnification: from 40x to 1000x
- Objective magnification: 4x, 10x, 40, 100x
- Eyepiece magnification: 10x
Design features:
- Nozzle: trinocular (360º rotation, 30º tilt)
- Interpupillary distance adjustment, mm: 50-75
- Diopter adjustment: ±5 on the left eyepiece
- Revolving head: for 5 lenses
- Lenses: Infinity, with multi-layer anti-reflective and anti-fungal coating
- Lens correction level: planachromat corrected to infinity
- Eyepieces: wide-angle (linear field of view 22 mm) with increased pupil relief and multi-layer anti-reflective coating
- Eyepiece landing diameter, mm: 30
- Object stage: movable 190x140 mm, with specimen guide and vernier (division value 0.1 mm)
- Body: metal
- Focusing: coaxial, coarse and fine (division value 0.002 mm) with tension control and locking mechanism
- Backlight: LED X-Led3 with transmitted light (SMD LED 3.6W, 6300K)
- Brightness control: smooth
- Köhler illumination
- Condenser: Abbe, 0.2/0.9 NA, with hinged lens, adjustable height and centering option
- Aperture diaphragm: iris
- Field diaphragm: iris, with the possibility of installing 45 mm filters
- Possibility of installing a digital camera or PC micro-eyepiece
Equipment:
- Microscope: 1pc
- Objectives: Planachromatic, infinity-corrected (4/0.10 ∞/-, WD17.3 mm; 10/0.25 ∞/0.17, WD10 mm; 40/0.65 ∞/0.17, WD0.54 mm; 100/1.25 ∞/0.17, WD0.13 mm OIL/WATER): 4 pcs.
- Lens flasks: 4 pcs.
- Eyepieces: WF10x/22mm High Point with rubber eyecups blocking side light: 2 pcs
- Protective eyepiece covers: 2 pcs.
- Focusing Screw Tension Adjustment Key: 1 pc
- Hexagon: 1 pc
- Immersion oil: 1 bottle
- Protective polypropylene cover: 1 pc
- Non-woven fiber protective cover: 1 pc
- Network adapter (Input: 100-240V, 50/60Hz, 0.5A; Output: 6V, 2.5A, length: 1.5m): 1 pc.
Additional recommended accessories:
- Eyepiece M-1001 PL 10x/22 mm High Point
- Eyepiece M-1003 PL 15x/16 mm High Point
- Eyepiece M-781 PL 10x/20 mm (30 mm) 10mm/0.01mm micrometr
- M-1049 IOS W-Plan 2x/0.08 Lens
- M-1127 IOS W-Plan 20x/0.40 Lens
- M-1129 IOS W-Plan 60x/0.80 Lens
- M-1131 IOS W-Plan POL 4x/0.10 Lens
- M-1132 IOS W-Plan POL 10x/0.25 Lens
- M-1133 IOS W-Plan POL 20x/0.45 Lens
- Lens M-1134 IOS W-Plan POL 40x/0.65
- M-1135 IOS W-Plan POL 60x/0.80 Lens
- Filter M-977, 45 mm, Green
- Filter M-979, 45 mm, Yellow
- Filter M-989, 45 mm, Frosted Glass
- Phase contrast set M-181
- Telescope for adjusting the phase-contrast device M-1004N
- Polarization kit (analyzer, polarizer) M-636
- Dark-field condenser M-185 (dry)
- Heated table M-635 (digital control)
- Photo adapter M-173 for APS-C and Full Frame Reflex cameras
- Universal Photo Adapter M-699 for M-173
- Immersion oil 15008 (10ml)
- Micrometer object M-005 (0.1mm/0.01mm)
- Cleaning kit 15104
Nutrition:
- AC power supply: 220/240V
Dimensions and weight:
- Dimensions without packaging (height x width x depth), mm: 420x255x390
- Dimensions in packaging, mm: 850x360x380
- Weight (without packaging), kg: 8.3
- Weight (in packaging), kg: 10.5

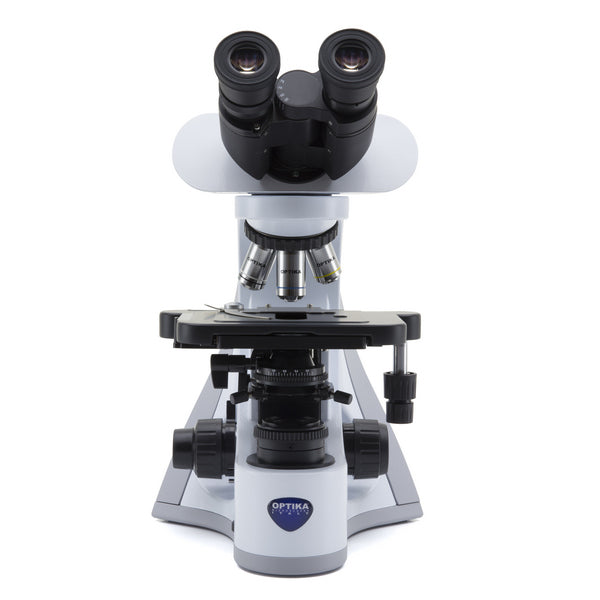

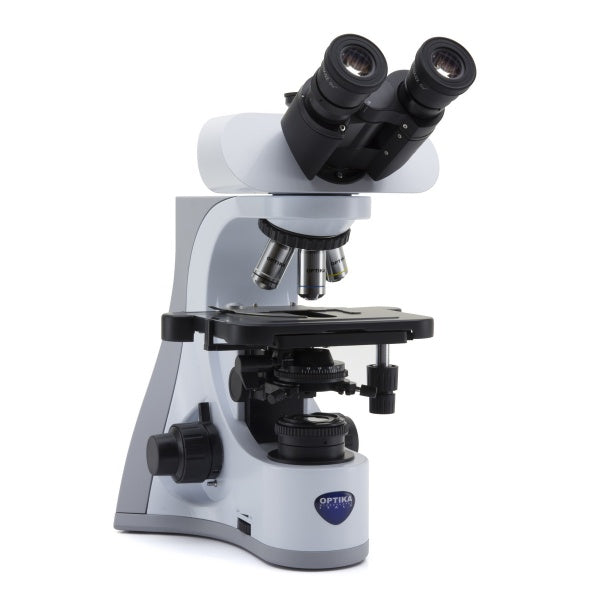

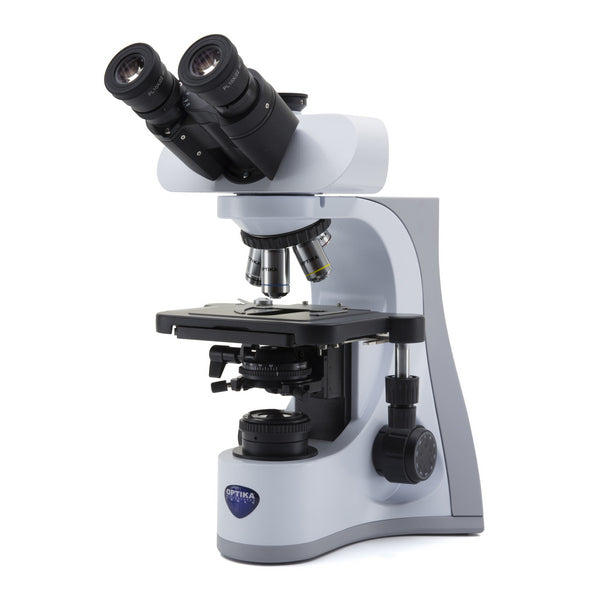

The Optika B-510BF 40x-1000x Trino Infinity microscope is equipped with plan achromatic objectives, corrected for infinity, which classifies it as a higher class of optical instruments and allows for fairly detailed biological research, while obtaining the highest quality photographs of samples.
The X-Led3 LED illumination of the microscope in combination with the Keller illumination scheme provides a sufficient amount of evenly distributed white light for natural color rendition and maximum image resolution. The field diaphragm has a diameter of 45 mm and can be used to install filters of the same size. The condenser is equipped with a folding lens to increase the efficiency of illumination at various magnifications.
The trinocular design of the microscope allows for equally comfortable observation and documentation of research results on camera.
The microscope eyepieces have a standardized landing diameter (30 mm), a large field of view (22 mm), an increased pupil removal for unimpeded observation in glasses and are equipped with soft rubber eyecups. Diopter correction on the left eyepiece tube and a large range of interchangeable interpupillary distance allow for full compensation of possible peculiarities of the observer's vision.

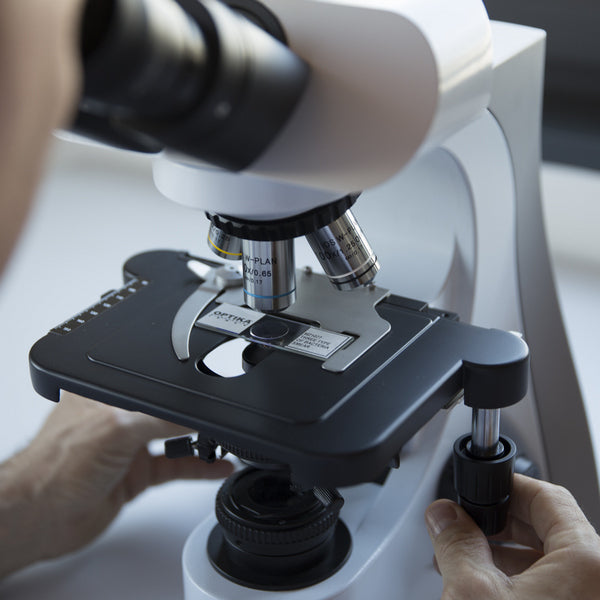

The enlarged stage is equipped with an innovative transverse belt drive system Innovative Belt Drive, thanks to which the movement occurs as smoothly as possible without micro jerks. The stage is equipped with a 2-slide slide guide with a vernier. The height of the stage is adjusted using the screws of macro and micrometer focusing. The design provides a disk for controlling the tension of the focusing screws and a locking mechanism, which allows you to fix the microscope focused on the sample if necessary. This same feature allows for greater precision in focusing.

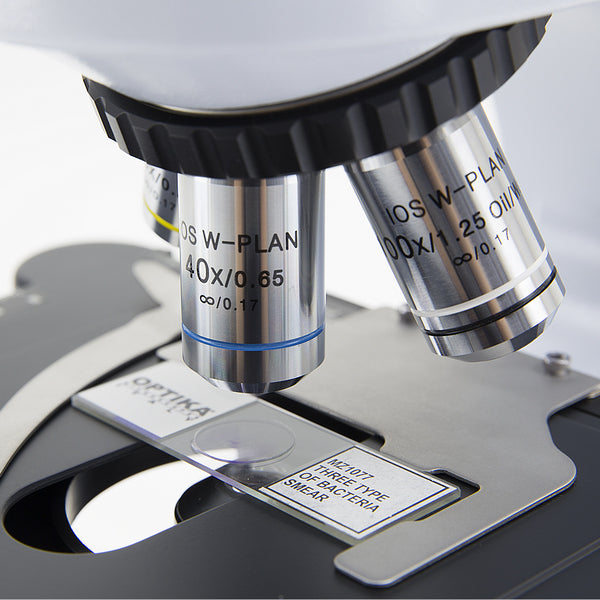

The microscope provides magnification in the range from 40x to 1000x, sufficient for most observations. The 40x and 100x objectives have a spring-loaded design that prevents damage to the objective or sample when the stage is raised excessively. Using the 100x OIL/WATER objective, you can forget about tedious cleaning of optics from oil and stuck dust, since water can be used instead of oil as an immersion liquid, with virtually no loss of resolution. To increase resolution at high magnifications, the condenser can also be used as an immersion condenser. The surface of the tubes is covered with a black anodized Type III coating, which reliably resists abrasion and corrosion on the outside and does not allow unwanted reflections on the inside.
Additionally, the convenience of observation is ensured by the tilt of the binocular attachment at an angle of 30º. The fully rotating attachment allows you to observe through the microscope from any convenient position without changing the position of the device in space.
Designed for more in-depth laboratory research in various fields of science and medicine. Recommended for studying tissue pathologies, human biological fluids, mycological, entomological, botanical, veterinary, dermatological, cytological, histological, oncological, parasitological studies, analysis of drinking water and food industry products. The microscope optics provide high-quality images of the observed samples. Recommended for medical and scientific laboratories.
The Italian company OPTIKA SRL has been one of the leaders in the production of professional microscopes and accessories covering almost all areas of microscopic research for 45 years. The company constantly strives for innovation and cares about its customers , not forgetting about the high quality of the product, convenience and ease of use. With proper use, Optika microscopes are designed for many years of operation.
Manufacturer: Optika (Italy)
Warranty: 10 years
| Manufacturer code: 925902 Parameters: Warranty: 10 years Country of brand registration: Italy Country of origin: Italy Equipment: Microscope: 1 pc. Objectives: Planachromatic, corrected for infinity (4/0.10 ∞/-, WD17.3 mm; 10/0.25 ∞/0.17, WD10 mm; 40/0.65 ∞/0.17, WD0.54 mm; 100/1.25 ∞/0.17, WD0.13 mm OIL/WATER): 4 pcs. Bulbs for Power supply: 220/240 V Backlight: LED (transmitted light) Focusing: Coaxial Coarse Fine with tension control and locking mechanism Object table: Movable with specimen guide and vernier Tilt: 30 Rotation: 360 & Head: Trinocular Eyepiece magnification: 10x Lens magnification: 4x, 10x, 40, Microscope magnification: 40x - 1000 Class: Biological Type: Optical Type: Microscopes
