Description
The need for a compact, yet durable and securely protected sight that does not disturb the balance of the weapon led Hawke Optics to create the Hawke Spot-On 1x25 (Weaver) collimator sight. Today, this is truly one of the most compact closed-type collimators, which has two mounts on the sighting bar in the basic package. One mount has a high profile, a quick-release mechanism, and will be very useful for installation on hunting rifles or automatic rifles. The second mount is low-profile and is intended primarily for mounting on pistol sighting bars. No less important is the fact that the diameter of the aiming point is only 4 MOA, due to which small and medium targets are less overlapped during aimed shooting at medium distances. Among other advantages of the Hawke Spot-On 1x25 (Weaver) collimator sight for fast shooting at short and medium distances: fast target acquisition, fixed focus, no parallax from 9 m, unlimited eye relief and a virtually unlimited field of view. Hawke Spot-On 1x25 (Weaver) sights have a shockproof, waterproof, nitrogen-filled design, making them recommended for use not only with pistols, but also with automatic weapons, smoothbore rifles up to 12 gauge inclusive, and spring-piston air rifles with an initial bullet velocity of up to 375 m/s.
Despite the fact that the field of view of collimator sights is practically unlimited, and the shooter can "track" the target with both eyes and not so much depend on the quality of optics, as when shooting from optical sights, Hawke has nevertheless paid considerable attention to the optical properties of the sight. All optical surfaces are covered with a 25-layer anti-reflective coating, which, of course, affects the quality of the image and contributes to more accurate shooting, especially in low visibility conditions.
The sight is made in a shockproof, waterproof, aluminum case, which reliably protects the optics from unwanted damage during impacts, falls, powerful recoil and difficult weather conditions.
The aiming mark is a red illuminated dot with adjustable brightness for convenient day, evening and night shooting. If you forget to turn off the backlight, automatic switching to standby mode will save battery capacity. The sight enters standby mode if there is no movement in space for 5 minutes. At the same time, the minimum power consumption to maintain the sight in combat readiness continues. Therefore, at the end of shooting, it is necessary to turn off the sight.
The sight is equipped with two removable mounts for installation on Weaver/Picatinny type sighting rails. The high-profile mount has a quick-release mechanism, as it is intended for installation on rifles, where the collimator sight can be periodically replaced with an optical one. The low-profile mount is intended for installation on pistols, and for this reason it does not have a quick-release mechanism, but requires fixation with a tool. Closed vertical and horizontal adjustment drums allow finger adjustments without a special tool, and have a click value of 1 MOA.
For convenience, the sight is equipped with removable plastic covers that completely cover the eyepiece and lens during transportation.
Optical characteristics:
- Magnification: 1x
- Lens size, mm: 25
- Lens coating: Fully Multi-Coated 25 layers
Design features:
- Aiming mark type: dot
- Aiming mark color: red
- Aiming mark size, MOA: 4
- Reticle brightness adjustment: 6 brightness levels for day and night use
- Memory of the last brightness mode when turning on/off
- Automatic switching to standby mode after 5 minutes without movement
- The division value of the adjustment mechanism of corrections, angle min.: 1"(1 MOA)@100 yds
- Removable Weaver/Picatinny mount
- Water resistance: 100% waterproof (IPX7)
- Case: shockproof, aluminum, anodized
Equipment:
- Aim
- High Profile Quick Release Weaver/Picatinny Mount
- Low Profile Weaver/Picatinny Mount
- Battery CR2032
- Hex key for changing mounts
- Lens and eyepiece caps
- Lens cleaning cloth

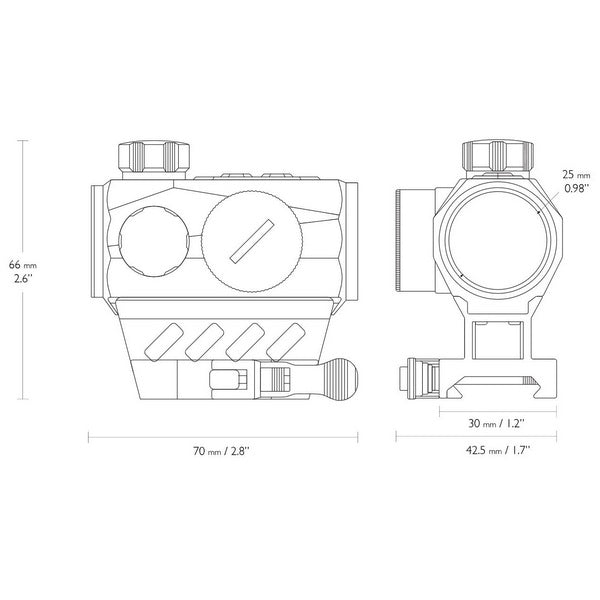

Dimensions without mounting, mm: 44x71x42
Dimensions with low-profile mount, mm: 56x71x42
Dimensions with high-profile mount, mm: 64x71x52
Dimensions in packaging, mm: 135x98x65
Weight (without mount), kg: 0.125
Weight (with low-profile mount), kg: 0.172
Weight (with high-profile mount), kg: 0.185
Weight (in packaging), kg: 0.385
Manufacturer: Hawke (United Kingdom)
Warranty: 12 months
A collimator sight allows you to aim a weapon at a target using a luminous dot-mark, observing the object with both eyes open, which is very convenient when shooting at a moving target. You simultaneously observe the target and aim the weapon at it. Shooting while hunting is simplified, and most importantly, it becomes more accurate than with a conventional mechanical sight. Collimator sights significantly simplify and speed up the aiming process, since it is only necessary to combine the mark and the target. The aiming mark does not cover the target. These advantages make collimator sights especially attractive for people with no shooting experience and an almost ideal sight for pneumatic, firearms and throwing weapons of medium and close range.
| Manufacturer code: 925690 Parameters: Warranty: 12 months Country of brand registration: Great Britain Features: Shockproof, waterproof design Sight length: 71 Mounting base: Picatinny (21 mm) Section: Sights
