Description
Hawke Vantage 30 WA is a series of sights that has a number of design solutions used in high-class sights, but at the same time retained an affordable price. The wide-angle lens and 30 mm diameter body have a positive effect on the perception of the formed image and the convenience of aiming. These sights are resistant to powerful recoil and are recommended for installation on firearms and air rifles of any caliber. The sight body is monolithic, waterproof, filled with nitrogen and made of aircraft aluminum. Vantage 30 WA 1-4x24 (L4A IR Dot) is an excellent sight for driven hunts, having a classic reticle, convenient for quick aiming. The reticle is engraved and has red and green backlighting. The sight is equipped with a quick focusing system and a very smooth and precise mechanism for changing the magnification. Each optical surface has eleven layers of antireflective coating to transmit high-quality images. Hawke Vantage 30 WA - the best scopes in their price category.
.jpg)

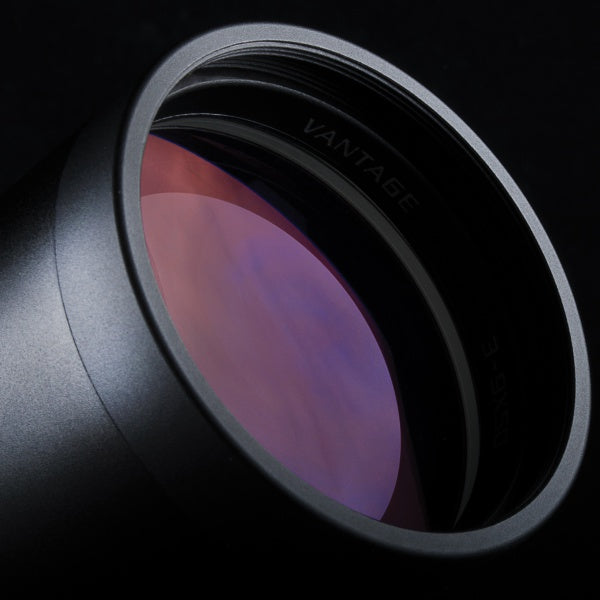

The main characteristic of any sight is the quality of optics. Hawke Vantage 30 WA sights are optical devices with high quality optics. All optical surfaces (achromatic objective, eyepiece and reversing system) are covered with 11 layers of anti-reflective coating, which greatly reduces light loss during reflection and provides high resolution of the target image. The wide-angle eyepiece provides a twenty percent increase in the field of view, making it easier to find a target.
The shockproof body is made of lightweight and durable aluminum alloy. Both the outside and the inside of the body are covered with a matte black coating using anodizing, which does not wear off, does not scratch and provides excellent performance characteristics. All moving parts of the body have a profiled knurling, due to which adjusting the sight even in thick winter gloves will not be a problem. The body is sealed, protected from water ingress and filled with dry nitrogen to prevent fogging of the optics from the inside when the temperature changes.

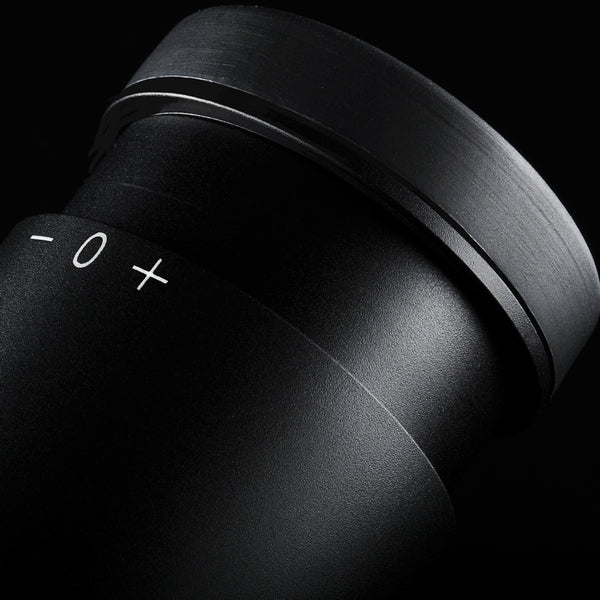

The scopes have a pre-set parallax setting of 100 yards (91 m) at the factory. The Fast Focus focusing system on the eyepiece is provided for quick focusing on the target.

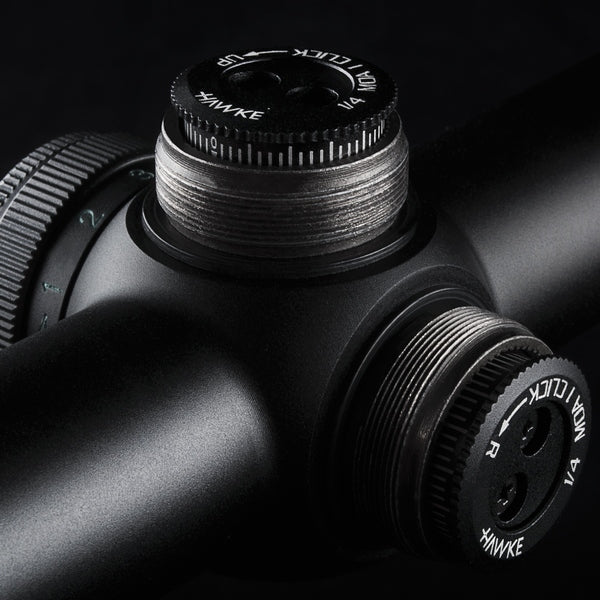

Low-profile vertical and horizontal adjustment drums are equipped with a special beryllium spring, preventing the aiming reticle from "drifting". The drums have a click value of 0.5 MOA. They are hidden under low aluminum covers. Next to the adjustment drums there is a rheostat for adjusting the brightness and switching the color of the aiming mark illumination.

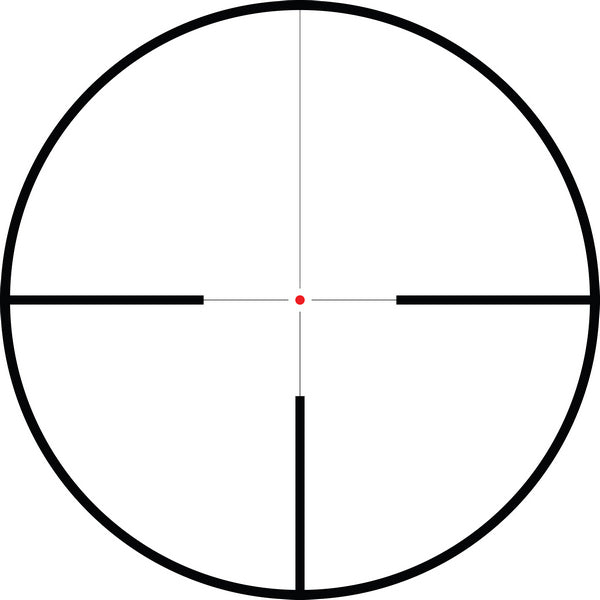

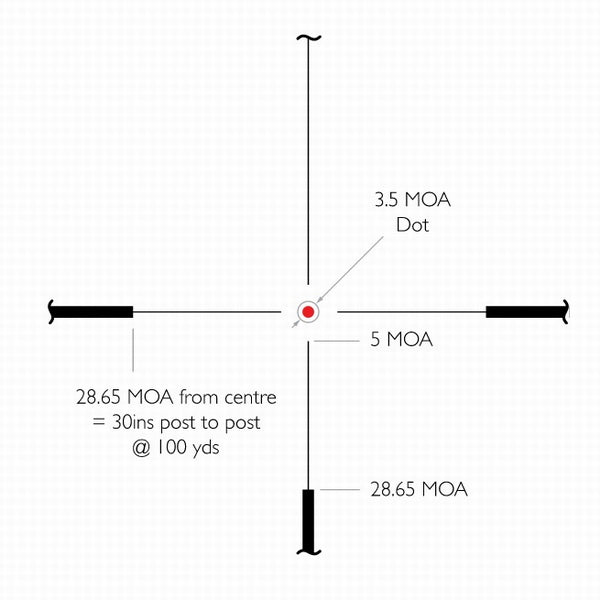

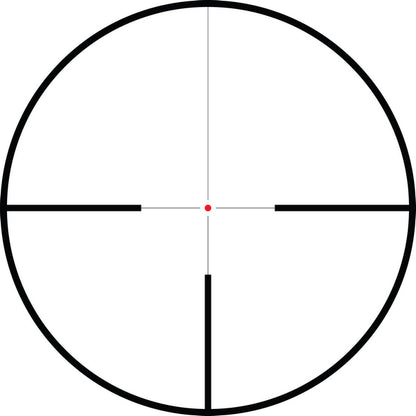

L4A IR Dot is a classic hunting reticle. The thick side lines allow you to track a large moving target and constantly keep it in the field of aiming, while the thin internal lines allow precise fixation of the sight on smaller areas of the target. The central dot with red backlighting is for a quick and accurate shot in conditions of reduced visibility or lack of time for long aiming. A free ballistic calculator will allow you to make a personal adaptation of the reticle to a specific weapon and type of projectile.
You can visually evaluate the ease of use of the aiming reticle directly on the manufacturer's website.
A significant advantage is that the grid is engraved on a glass plate. This provides almost 100% protection of the grid from the destructive effect of the multi-vector recoil of spring-piston pneumatics.
An important point is the presence of a two-color illumination of the aiming grid. The red illumination is brighter and is more convenient to use in the daytime and evening. At night, the green color, which is less irritating to the eyes, provides clear contours of the aiming mark and does not illuminate the plane of observation. Each of the colors has 5 degrees of brightness.
Optical characteristics:
- Magnification, times: 1-4x
- Objective lens diameter, mm: 24
- Exit pupil diameter, mm: 24-6
- Field of view (m/100m): 42-10.5
- Exit pupil distance, mm: 90
Design features:
- Reticle: L4A IR Dot (engraved)
- Reticle illumination: red/green, adjustable, 5 brightness levels for each color
- Reticle Focal Plane: Second Focal Plane (SFP)
- Tube diameter: 30 mm
- The division value of the adjustment mechanism of corrections, angle min. 1/2" (0.5 MOA) @ 100 yds
- Maximum range of corrections, MOA: 100
- Parallax adjustment: Factory preset to 100 yards (91 m)
- Lens coating: Fully Multi coated 11 layers
- Waterproof, shockproof, nitrogen filled construction
- Case: monolithic, made of aircraft aluminum 6061-T6
Equipment:
- Aim
- Transparent protective light filter covers for the lens and eyepiece
- CR2032 lithium battery
- Optics cleaning cloth

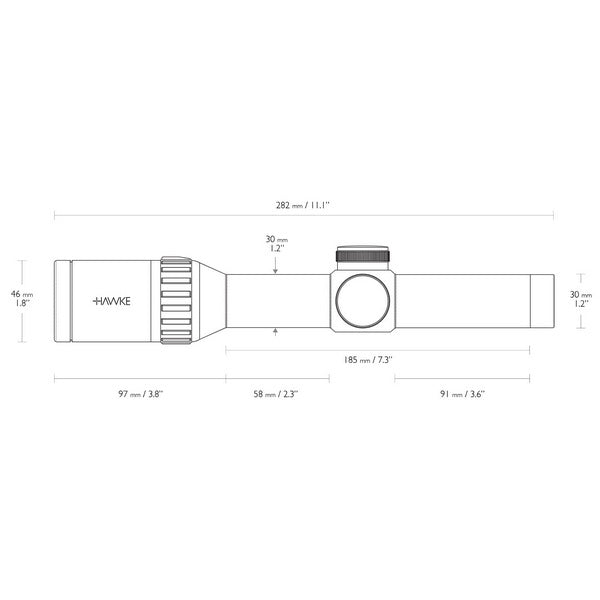

Sight size, mm: 282x48x48
Dimensions in packaging, mm: 320x95x85
Weight, kg: 0.421
Weight in packaging, kg: 0.855
Manufacturer: Hawke (United Kingdom)
Warranty: 1 year
| Manufacturer code: 925691 Parameters: Warranty: 12 months Country of brand registration: Great Britain Features: Waterproof, fog-proof, shock-resistant, nitrogen-filled construction Sight length: 282 Mesh type: 4A IR Dot Parallax adjustment: fixed 91 m Section: Sights
