Description

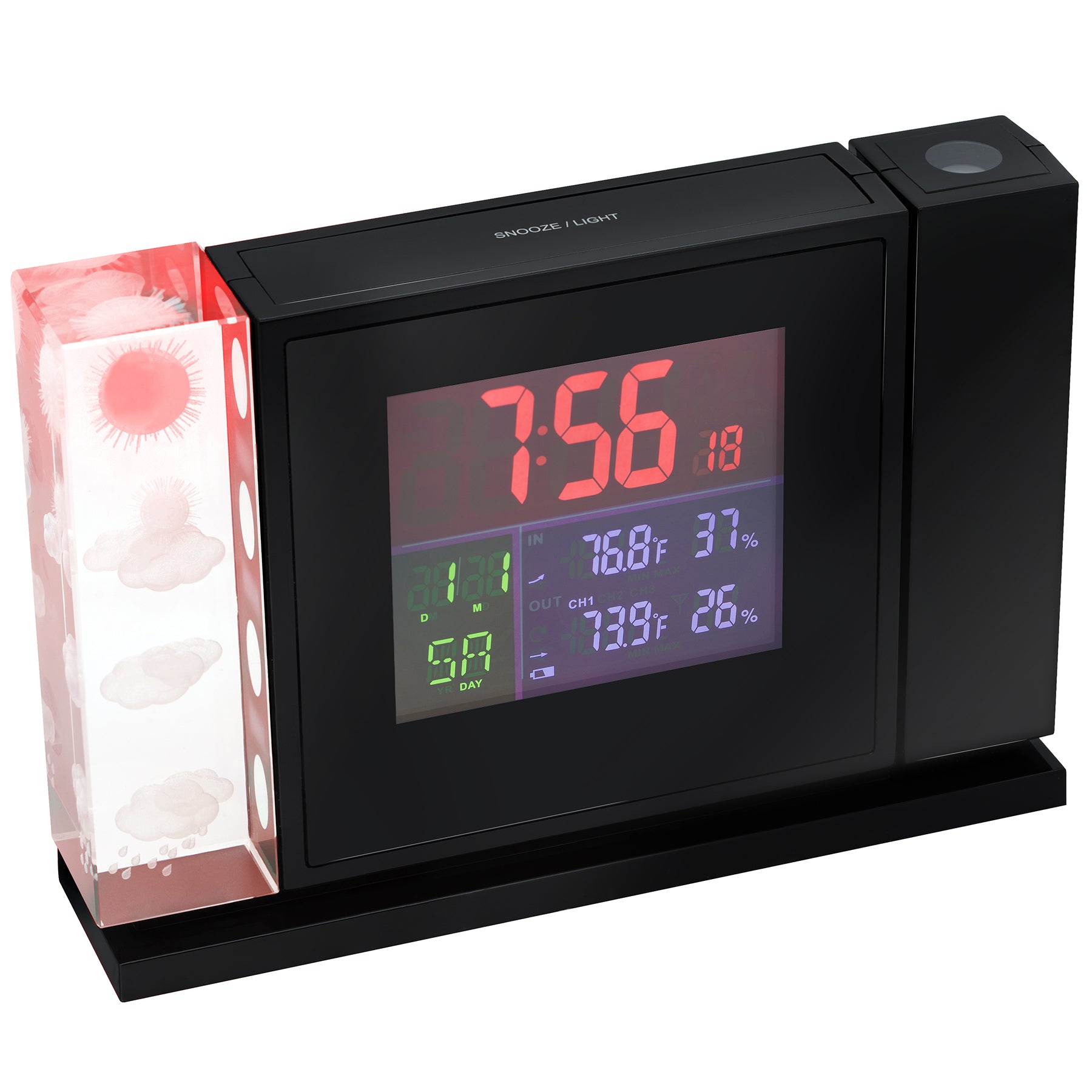

The Crystal P weather station records changes in barometric pressure and, based on these changes, displays a short-term weather forecast for the near future in 3D Crystal format.
Peculiarities
- Colour, high quality display
- Weather forecast for the next 12 hours in the form of 3D animation (transparent crystal with laser engraving of weather forecast symbols)
- Measurement of internal and external temperature and relative humidity
- Temperature change trend
- Display temperature in °C or °F
- Automatic recording of minimum and maximum values of temperature and relative humidity
- 12 or 24 hour time display format
- Alarm clock with snooze function
- Display of the battery charge level of the station and the remote sensor
Technical specifications
Weather forecast:
- Weather forecast for 12 hours
- Symbolic weather forecast. Icons (clear, partly cloudy, cloudy, rain) are displayed inside the crystal
Room temperature:
- Units of measurement: ºС or ºF
- Measurement range: 0°C to +50°C (23°F to 122°F)
- Measurement resolution: 0.1°C or 0.14°F
- Measurement accuracy: +/- 1°C (+/- 14°F)
- Automatic recording of minimum and maximum temperature values
- Temperature change trend
External temperature:
- Units of measurement: ºС or ºF
- Measuring range: -20°C to +50°C (-4°F to 140°F)
- Measurement resolution: 0.1°C or 0.14°F
- Measurement accuracy: +/- 1°C (+/- 14°F)
- Automatic recording of minimum and maximum temperature values
- Temperature change trend
Indoor humidity:
- Units of measurement: % RH
- Measurement range: 1% to 99%
- Measurement resolution: 1%
- Measurement accuracy: +/-5%
- Update readings every 30 sec
- Automatic recording of minimum and maximum humidity values
External humidity:
- Units of measurement: % RH
- Measurement range: 1% to 99%
- Measurement resolution: 1%
- Measurement accuracy: +/-5%
- Update readings every 50 sec
- Automatic recording of minimum and maximum humidity values
Watch:
- Time format: 12 or 24
- Alarm clock with snooze function.

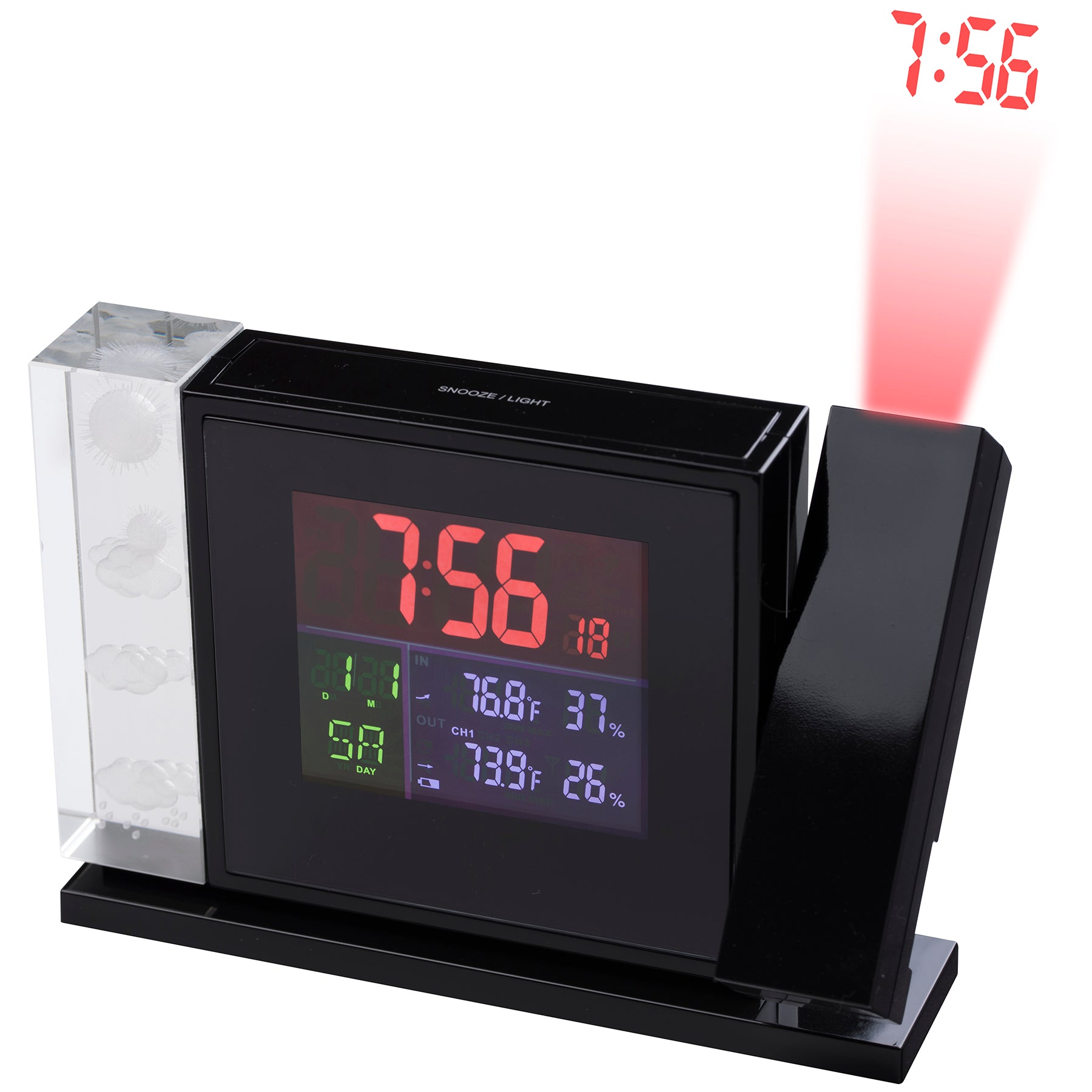

Time projection
- The ability to briefly project time onto a wall, ceiling or any other surface using a powerful, economical and long-lasting LED
- Projection color: red.
- Projection size: large, depends on the distance to the surface, the optimal projection distance is 1.7-2 meters; brightness: high (depends on illumination; clearly visible in semi-darkness and darkness).
Backlight:
- The display has a wide viewing angle and high contrast
- Constant display backlight when operating from a power supply.
Body color:
- Black
Transferring data from an external sensor:
- Data transfer frequency: 433 MHz
- Data transmission range: up to 30 m. line of sight
Installation:
- Can be installed on a table.
Overall dimensions:
- Weather station: 110 x 160 x 38 mm.

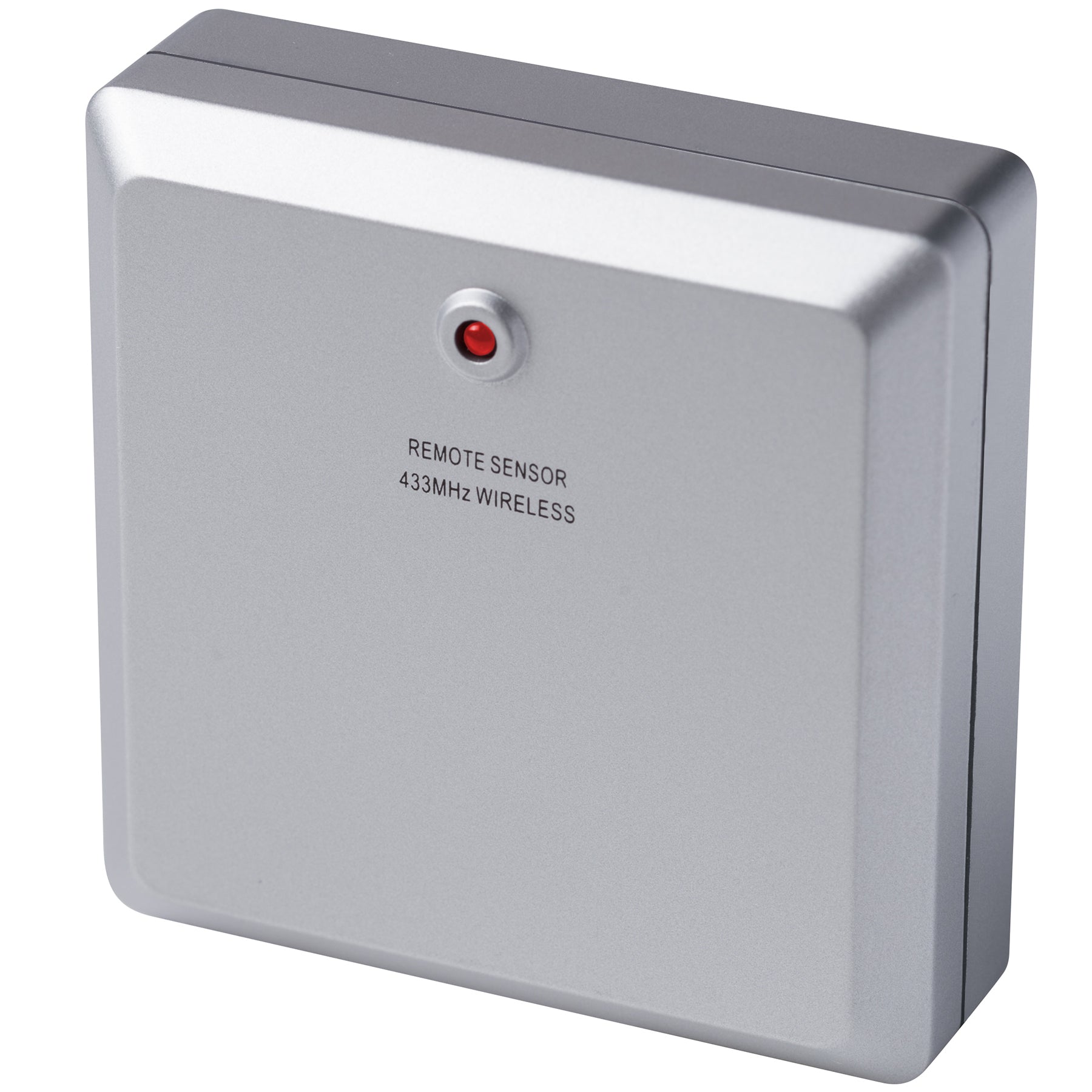

- Thermo-hygrosensor: 70 x 70 x 22 mm.
Weight:
- Weather station: 460 g
- Thermo-hygro sensor: 30 g

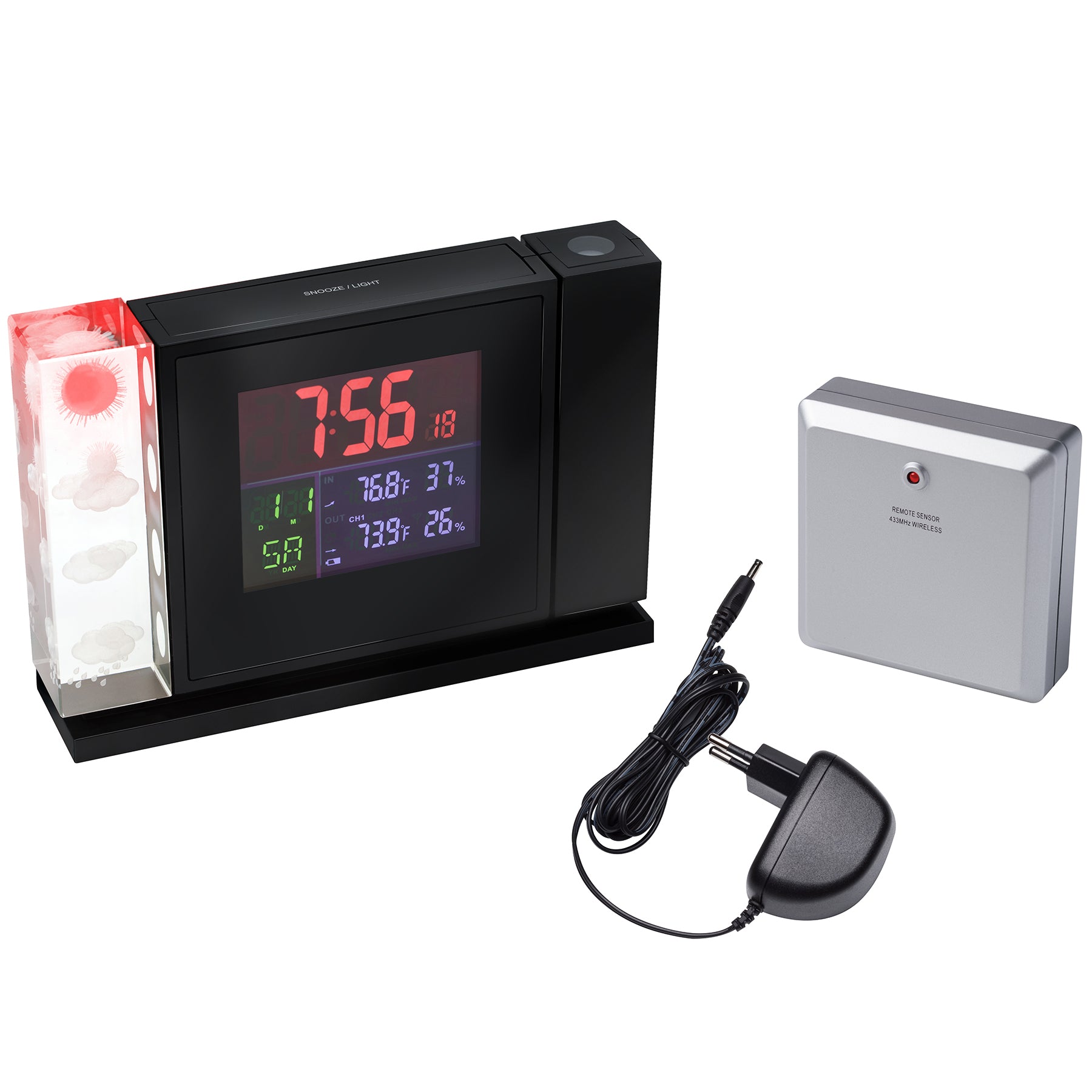

The weather station is equipped with:
- Console
- 1 external temperature and humidity sensor

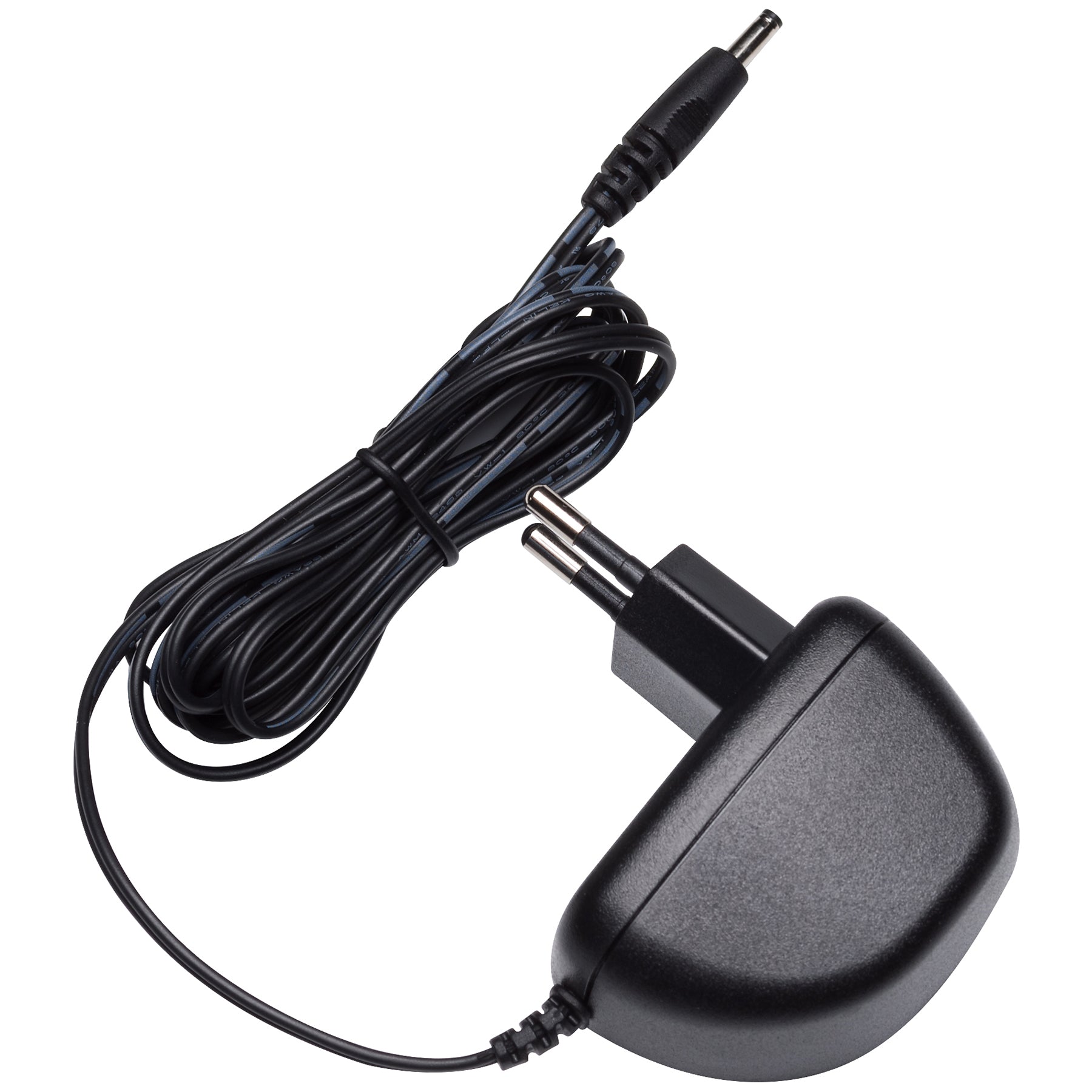

- power unit
- Instructions
Nutrition:
- Weather station: AC/DC 5.0 500 mAV power adapter (included), 3 x AAA LR03 1.5 V batteries (purchased separately)
- Thermo-hygro sensor: 2 x AAA LR03 1.5 V batteries (purchased separately).
- It is recommended to use alkaline batteries (Duracell, Energizer and similar)
Recommendations for installing a wireless temperature and humidity sensor
In order to obtain accurate readings and extend the life of your sensor, we recommend that you install it in a protected location to avoid moisture and direct sunlight. Do not wrap the sensor in a plastic bag. We recommend installing it outside on the outside of a window as shown in the picture below or in any other suitable location.
