Description
The new Hawke Vantage IR series of optical sights is now even more resistant to powerful recoil and is recommended for installation on firearms and air rifles of any caliber. The Hawke Vantage IR 6-24x50 AO (Mil Dot IR R/G) sight has a monolithic body made of aircraft aluminum, an engraved reticle with red and green illumination, parallax adjustment on the lens, a fast focusing system and a very smooth and precise mechanism for changing the magnification. Each optical surface has eleven layers of anti-reflective coating for high-quality image transmission. Hawke Vantage IR is a new quality standard in its price category.
The main characteristic of any sight is the quality of optics. Hawke Vantage IR sights are optical devices with high quality optics. All optical surfaces (achromatic objective, eyepiece and reversing system) are covered with 11 layers of anti-reflective coating, which greatly reduces light loss during reflection and provides high resolution of the target image.
The shockproof body is made of lightweight and durable aluminum alloy. Both the outside and the inside of the body are covered with a matte black coating using anodizing, which does not wear off, does not scratch and provides excellent performance characteristics. All moving parts of the body have a profiled knurling, due to which adjusting the sight even in thick winter gloves will not be a problem.
The body is sealed, protected from water ingress and filled with dry nitrogen to prevent fogging of the optics from the inside due to temperature changes.

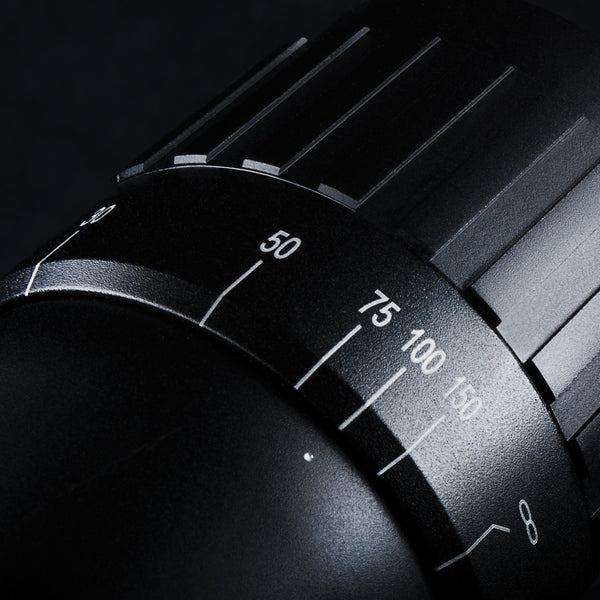

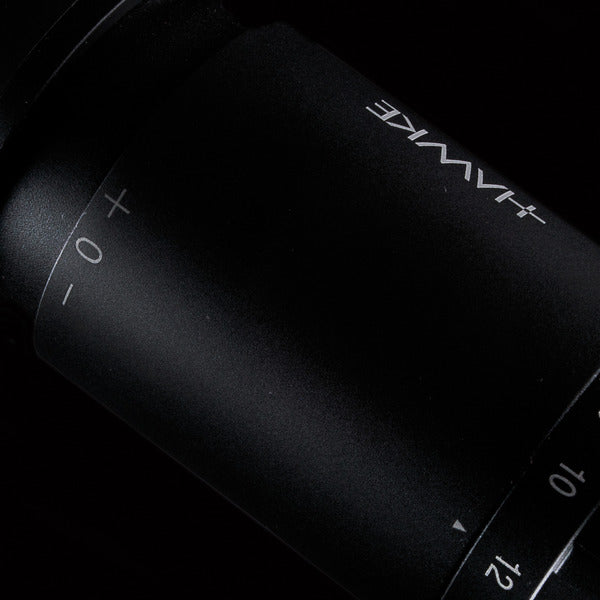

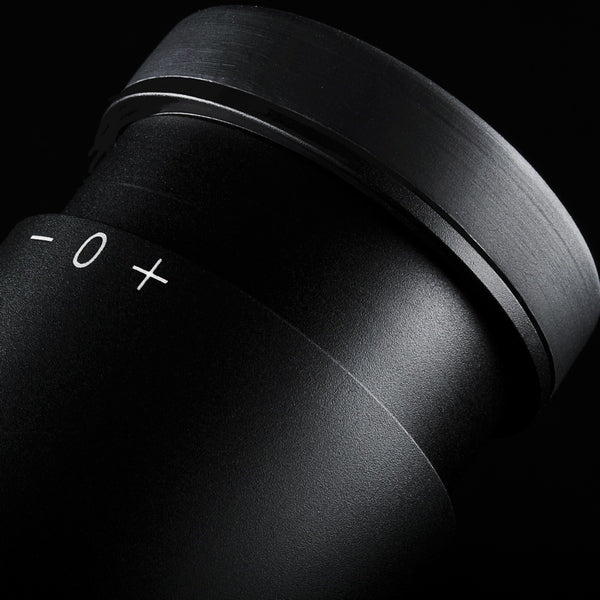

Parallax adjustment is performed by a wide ring on the objective in the range from 14 meters to infinity. The objective is spring-loaded by a powerful spring, which is a mechanism for compensating for recoil. For quick focusing on the target, the Fast Focus focusing system is provided on the eyepiece.

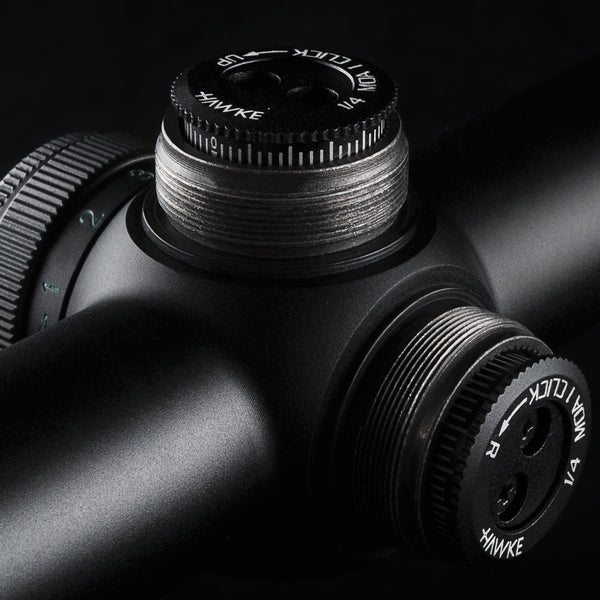

Low-profile vertical and horizontal adjustment drums are equipped with a special beryllium spring, preventing the aiming reticle from "drifting". The drums have a click value of 0.25 MOA. They are hidden under low aluminum covers. Next to the adjustment drums there is a rheostat for adjusting the brightness and switching the color of the aiming mark illumination.

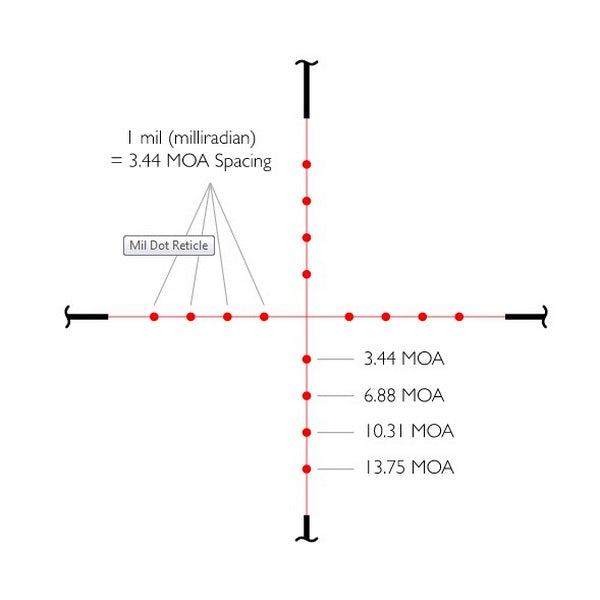

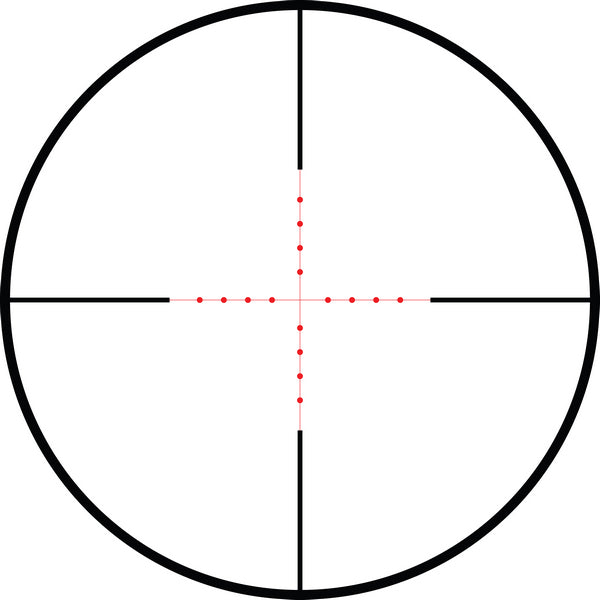

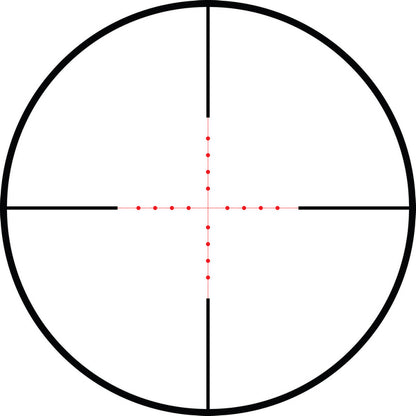

Mil Dot is one of the most universal aiming reticles, all components of this reticle have strictly regulated dimensions, the distances between all elements are also regulated. Thanks to this, it is not a problem to determine the distance to the target, taking the correct wind correction and determining the trajectory of the flight and fall of the bullet. This Mil Dot is correct at 10x magnification. For other magnifications, the linear and angular dimensions are determined by interpolation or according to special tables. The free ballistic calculator X-ACT will allow you to make a personal adaptation of the reticule to a specific weapon and type of projectile.
You can visually evaluate the ease of use of the aiming reticle directly on the manufacturer's website.
A significant advantage is that the grid is engraved on a glass plate. This provides almost 100% protection of the grid from the destructive effect of the multi-vector recoil of spring-piston pneumatics.
An important point is the presence of a two-color illumination of the aiming grid. The red illumination is brighter and is more convenient to use in the daytime and evening. At night, the green color, which is less irritating to the eyes, provides clear contours of the aiming mark and does not illuminate the plane of observation. Each of the colors has 5 degrees of brightness.
Optical characteristics:
- Magnification, times: 6-24x
- Objective lens diameter, mm: 50
- Exit pupil diameter, mm: 8.33-2.08
- Field of view (m/100m): 5.1-1.4
- Exit pupil distance, mm: 89
Design features:
- Reticle: Mil Dot IR (engraved)
- Reticle illumination: red/green, adjustable, 5 brightness levels for each color
- Reticle Focal Plane: Second Focal Plane (SFP)
- Tube Diameter: 25.4 mm (1 inch)
- The division value of the adjustment mechanism of corrections, angle min. 1/4" (0.25 MOA) @ 100 yds
- Maximum range of adjustments, MOA: 60
- Parallax adjustment on the AO (Ajustable Objective) lens, from 14 m to infinity
- Lens coating: Fully Multi coated 11 layers
- Waterproof, shockproof, nitrogen filled construction
- Case: monolithic, made of aircraft aluminum 6061-T6
Equipment:
- Aim
- Transparent protective light filter covers for the lens and eyepiece
- CR2032 lithium battery
- Optics cleaning cloth

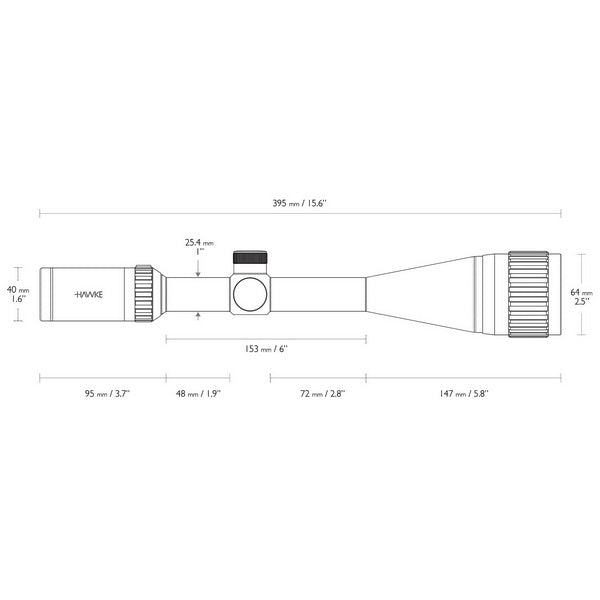

Sight dimensions, mm: 395x64x64
Dimensions in packaging, mm: 420x100x80
Weight of the sight, kg: 0.625
Weight in packaging, kg: 1.2
Manufacturer: Hawke (United Kingdom)
Warranty: 1 year
| Manufacturer code: 925186 Parameters: Warranty: 12 months Country of brand registration: Great Britain Features: Waterproof, fog-proof, shock-resistant, nitrogen-filled construction Sight length: 395 Reticle type: Mil Dot IR Parallax Adjustment: Parallax Adjustment on AO (Adjustable Objective) Lens Section: Sights
