Description
The Bresser 6x24/800m WP/OLED laser rangefinder has a number of advantages such as adjustable OLED display backlighting, speed measurement, full multi-layer optics coating and complete waterproofing. At the same time, the rangefinder is traditionally controlled by two buttons. A reliable rubberized waterproof case and a large range of distance and speed measurements, as well as high measurement resolution of 0.1 m (km/h) make this rangefinder a very versatile device for hunting, fishing, water and shooting sports, as well as for tourism.
This model is equipped with a function for measuring the speed of objects. For correct speed measurement, the rangefinder must be installed on a stationary surface. The distance to the object should not exceed 400 meters, the object must be in the direct field of view and directed strictly in the direction of the observer (approaching or moving away). Measurements must be taken in clear weather, the surface of the object must be perpendicular to the direction of the laser beam. In such conditions, the measurement error is +/- 5 km / h. If these conditions are not met, the measurement error may be more than 5 km / h
The range from 4 to 800 meters is specified for ideal measurement conditions, namely measurements in clear but not sunny weather, provided that the ideally flat light surface of the target is perpendicular to the rangefinder beam, and the rangefinder itself is stationary mounted on a fixed surface. If these conditions are not met, the measurement error may be more than 1-4 m.
For ease of reading the measurement data, the rangefinder is equipped with a display backlight, which has 24 brightness levels, making measurements equally comfortable both during the day and at night.
The optics have a full multilayer enlightenment. The polycarbonate body is completely rubberized and sealed, so the rangefinder is sufficiently protected from impacts and has full water protection according to class IPX7. In the transport position, the rangefinder eyepiece is closed with a cover, which protects it from dust and damage.
Optical characteristics:
- Distance measurement range, m: 4-800
- Speed measurement range, km/h, 0-300
- Distance measurement accuracy: +/- 1m at a distance of up to 350m
- Distance measurement accuracy: +/- 2m at a distance of up to 700m
- Distance measurement accuracy: 0.5% at a distance of over 700 m
- Speed measurement accuracy: +/- 5 km/h at a distance of up to 800 m
- Distance measurement resolution, m: 0.1
- Speed measurement resolution, km/h: 0.1
- Magnification: 6x
- Lens diameter, mm: 24
- Field of view, m/1000 m: 122.5
- Viewing angle (°): 7
- Exit pupil diameter, mm: 4
- Aperture: 16
- Twilight Factor: 12
- Exit pupil distance, mm: 14
- Minimum focusing distance, m: 4.5
- Diopter correction (focusing): +/- 4 diopters
- Measurement method: 905nm/75W semiconductor laser (eye safe)
Design features:
- Lenses: Fully Multi coated anti-reflective coating
- Water Resistance: 100% Waterproof Case
- Body: polycarbonate with non-slip rubber coating
- Focusing on the eyepiece
- Units of measurement: meters/yards, km/h
- Display: OLED backlit (32 brightness levels)
- Power saving mode: Display turns off after 30 seconds in standby mode
Measurement modes:

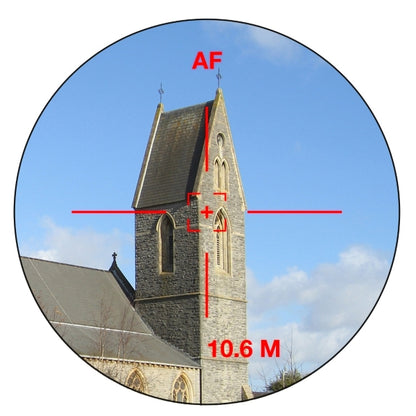

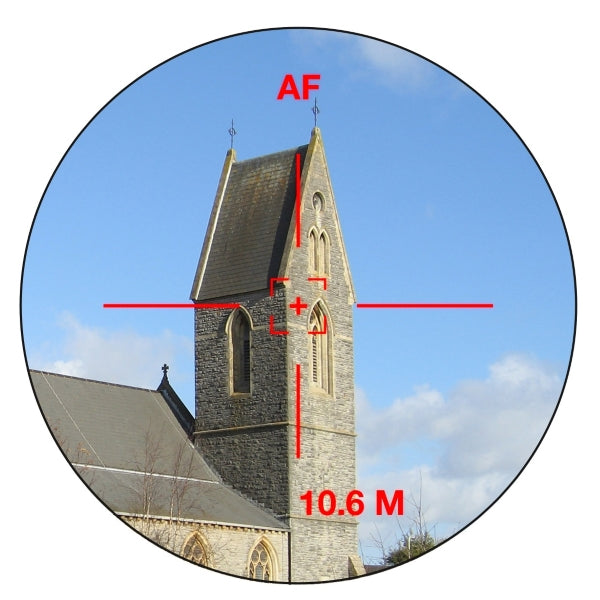

- AF - for measuring the real distance to an object in space
- SP - for measuring speed in real time within 300 km/h under normal lighting conditions.
- SE - to change the brightness of the display grid backlight
- SCAN - a mode of continuous scanning of the actual distance to objects, when moving the rangefinder in space (convenient for determining the distance to small objects, various parts of extended objects located at an angle).
Power supply:
- Battery CR2 3V
Overall dimensions:
- Size, mm: 42x107x75
- Weight, kg: 0.22 (without battery)

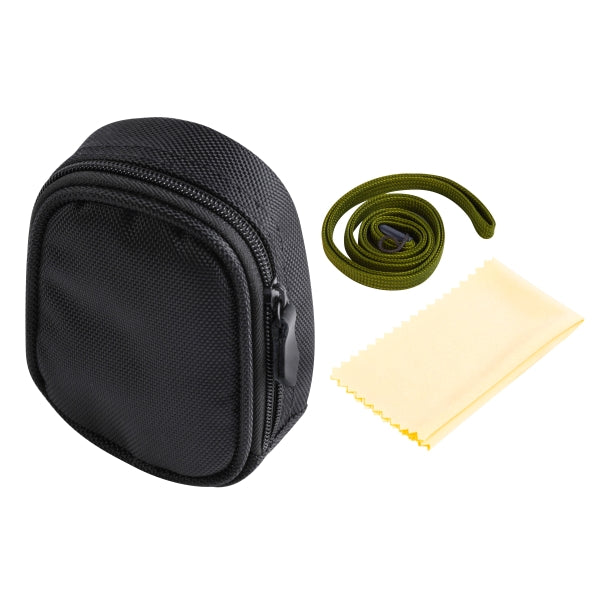

Equipment:
- Laser rangefinder Bresser 6x24/800m WP/OLED
- Wrist strap

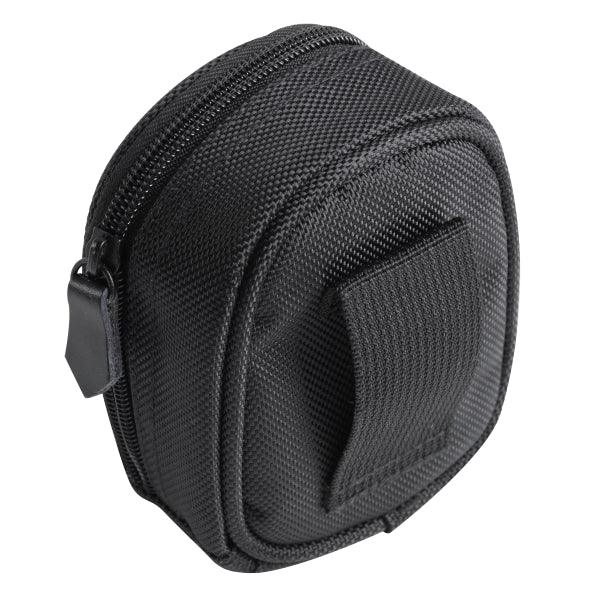

- Soft nylon zippered carrying case with belt attachment
- Optics cleaning cloth
Manufacturer: Bresser (Germany)
Warranty: 2 years
| Manufacturer code: 923889
Parameters:
Warranty: 24 months
Country of brand registration: Germany
