Description
The LAB series microscopes represent the basic level of professional stereo microscopes. This series is designed for users who need professional quality at an affordable price. These microscopes meet all the basic requirements of medical, research, industrial laboratories, restoration and repair shops. The microscopes have a 10-year warranty!

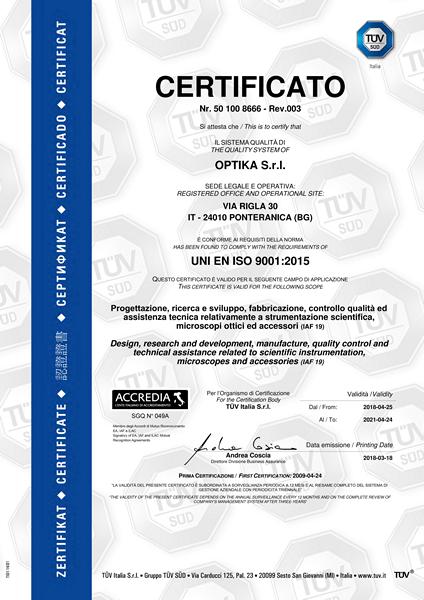

All Optika SRL products are made in Italy. In the small town of Ponteranica (Bergamo province) Optika microscopes are developed, manufactured and assembled. Each microscope is accompanied by an individual serial number indicated on the body and in the warranty card, as well as a mark on the final quality control. All products comply with the basic requirements of the relevant European EU directives and European Union standards.
LED illumination: Correct color rendering of the image is one of the two most important factors in light microscopy. The Optika LAB 20 7x-45x Bino Stereo Zoom microscope is equipped with powerful LED illumination. The upper illuminator consists of a modern point SMD LED and a lens, which provide a correctly directed focused beam of light. The lower illumination is equipped with a similar LED and a diffusing disk for observation in transmitted light. The LEDs have a color temperature of 6300K, which corresponds to natural daylight. Thus, the image is devoid of excessively yellow coloring from incandescent light. The service life of the LEDs is 65,000 hours, and the energy consumption is significantly lower than that of spiral illuminators.
Classification:
- Type: optical
- Classification: stereoscopic
- Optical design: Greenough
- Microscopy method: bright field
- Purpose: professional
Optical characteristics:
- Magnification: 7x...45x
- Lens magnification: 1x
- Eyepiece magnification: 10x
- Zoom: 0.7x...4.5x
Design features:
- Nozzle: trinocular (360º rotation, 45º tilt).
- Interpupillary distance adjustment, mm: 55-75
- Diopter adjustment: ±5 on both eyepieces
- Lens: Stereoscopic lens with multi-layer anti-reflective and anti-fungal coating
- Lens correction degree: achromat
- Zoom: continuously adjustable
- Eyepieces: wide-angle (linear field of view 20 mm) with increased pupil relief and multi-layer anti-reflective coating
- Landing diameter of eyepieces, mm : 30
- Object stage: stationary, with clamps for samples
- Focus: Coarse
- Body : metal
- Backlight: LED transmitted (SMD LED 3W, 6300K), reflected (SMD LED 3W, 6300K with adjustable lighting angle) and mixed light
- Brightness control: separate, smooth
- Working stroke range, mm: 40-200
- Working distance, mm: 85
Equipment:
- Microscope: 1pc
- Lens: 2 pcs.
- Eyepieces: WF10x/20mm (high point) - 2 pcs.
- Digital camera adapter (23.2 mm) with autonomous focusing: 1 pc.
- Transparent white diffusing disc 60mm: 1pc
- Black/white disc 60mm: 1pc
- Protective case: 1pc
- Protective lens cap: 1pc
- Protective eyepiece cover: 2 pcs
- Network cable: 1pc (1.50m)
Additional recommended accessories:
- Eyepieces ST-001.1 WF5x/22mm (pair)
- Eyepieces ST-402 WF15x/15mm (pair)
- Eyepieces ST-403 WF20x/10mm (pair)
- Eyepiece ST-405 WF10x/20mm (30 mm) 10mm/0.01mm micrometr
- Additional lens for 0.5x ST-085 objective
- Additional lens for 1.5x ST-086 objective
- Dark-field condenser ST-040
- Jewelry holder ST-041
- Photo adapter M-114 C-Mount adapter for 1/2” sensor
- Photo adapter M-115 C-Mount adapter for 1/3” sensor
- Photo adapter M-116 C-Mount adapter for 2/3” sensor
- Photo adapter with focus ST-418 C-Mount adapter for 1/3” sensor
- Photo adapter with focusing ST-419 C-Mount adapter for 1/2” sensor
- Rubber eyecups ST-415 (pair)
- Micrometer object M-005 (0.1mm/0.01mm)
- Cleaning kit 15104
Nutrition:
- AC power supply: 220/240V
Dimensions and weight:
- Dimensions (height x width x depth), mm: 330x205x255
- Weight, kg: 3.83

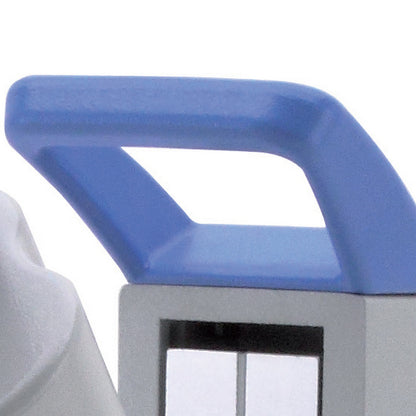

Optika LAB series microscopes are compact and transportable, as for professional laboratory devices. Their design allows you to install the mount for the trinocular attachment with an illuminator in two positions (for the purpose of the most compact layout, the factory setting fixes the mount in the lower position). In cases of extreme necessity, the setting can be changed independently.

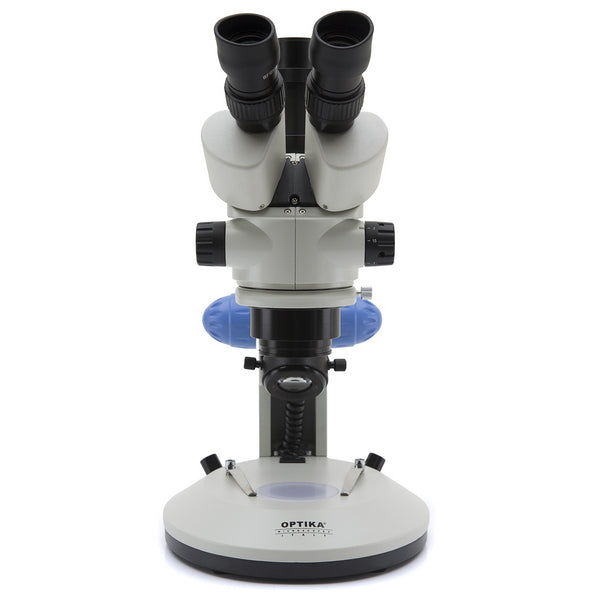

A distinctive feature of the Optika LAB 30 7x-45x Trino Stereo Zoom microscope is the presence of a zoom, with which you can continuously change the magnification of the microscope in the range from 7 to 45 times.
The trinocular design of the microscope allows for equally comfortable observation and documentation of research results on camera.

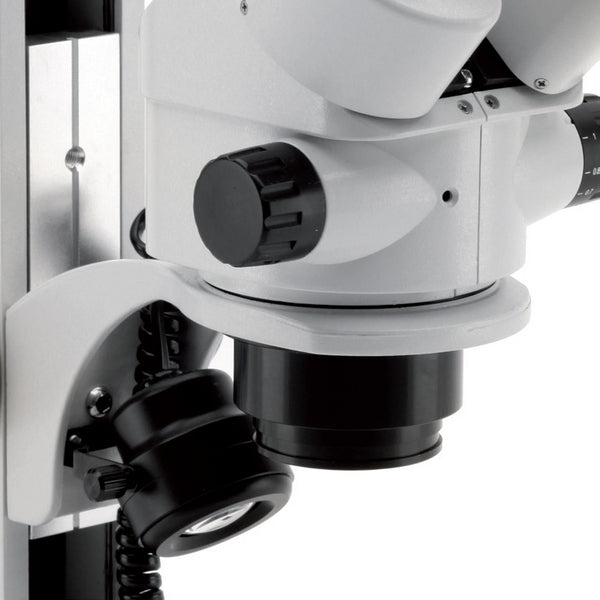

Separate controls for the upper and lower illumination allow for smooth brightness adjustments and the use of each illumination both separately and together in any brightness variation. Upper LED illuminator with variable beam angle.
The lenses are reliably protected from dust and mechanical damage by a plastic skirt. The surfaces of the eyepieces and the tube are covered with a black anodized Type III coating, which reliably resists abrasion and corrosion.
For comfortable observation, the microscope is equipped with a pair of soft rubber eyecups that allow you to fix your eyes at the required distance from the eyepieces and at the same time block unwanted side illumination. Additionally, the convenience of observation is ensured by tilting the binocular attachment at an angle of 45º. The increased pupil removal of the eyepieces is simply necessary for comfortable observation for people wearing glasses.
Designed for professional use by doctors, geologists, archaeologists, biologists, antique appraisers, assemblers of electronic microcircuits and fine mechanics. Recommended for medical, industrial and research laboratories, assembly shops.
In combination with the Optika ST-40 dark-field condenser and the Optika ST-41 jewelry holder (purchased separately), this microscope can be used as a professional device for jewelers, geologists and mineralogists.
The Italian company OPTIKA SRL has been one of the leaders in the production of professional microscopes and accessories covering almost all areas of microscopic research for 45 years. The company constantly strives for innovation and cares about its customers , not forgetting about the high quality of the product, convenience and ease of use. With proper use, Optika microscopes are designed for many years of operation.
Manufacturer: Optika (Italy)
Warranty: 10 years
| Manufacturer code: 923672 Parameters: Warranty: 10 years Country of brand registration: Italy Backlight: LED Focus: Coarse Type: Optical
