Description

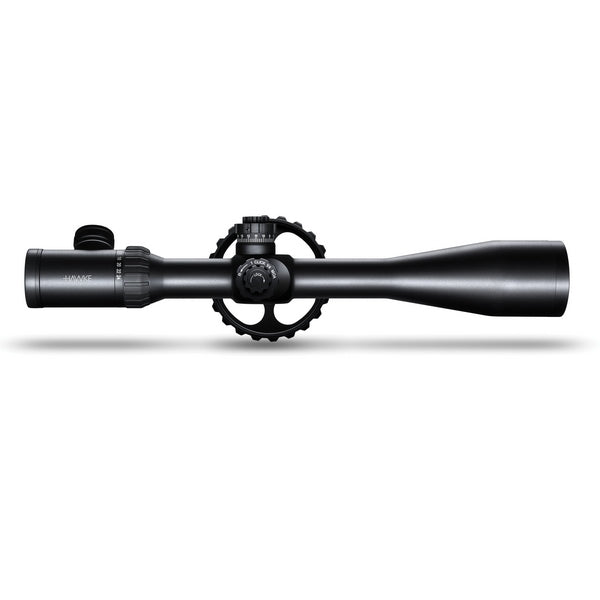

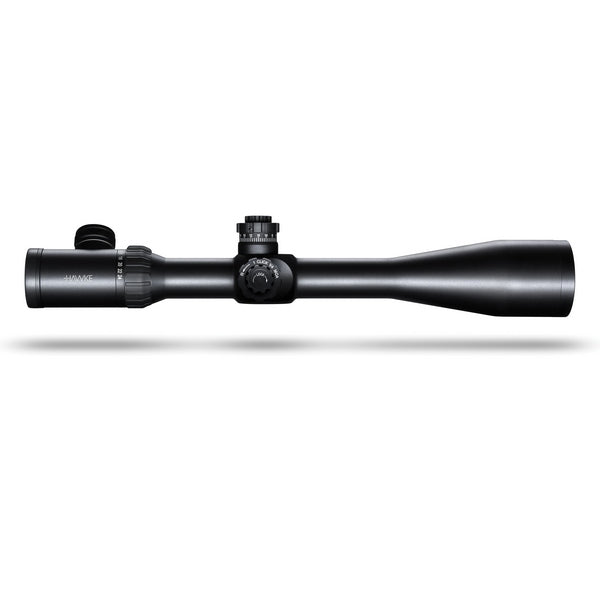

Hawke Optics is a recognized leader in the production of reliable airgun sights. The Hawke Airmax 30 SF is the most reliable series of sights, designed to withstand the devastating recoil of spring-piston airguns of any caliber. Both the hunter and the target shooter require a reliable sight with specific settings in order to get the most out of their gun. The Airmax 30 SF sights are equipped with special rangefinding reticles with smooth illumination adjustment, allowing for accurate shooting at various distances. With a large objective lens diameter, variable magnification, a 20% larger field of view, as well as a 100-mm removable side parallax adjustment wheel and tactical turrets for entering corrections, this model is perfect for target shooting, especially for field target and long-range shooting.
.jpg)
The quality of the optics of this series of sights, regardless of the diameter of the objective lens, is at its best. All optical surfaces of the sight (achromatic objective lens, eyepiece, inverting system) are coated with 16 layers of high-quality anti-reflective coating of a violet shade. As a result, the image transmitted by the sight is contrasting and bright. With a wide-angle optical scheme, this sight allows you to get a field of view 20% larger compared to standard optics. Observing, targeting, aiming and shooting becomes much more comfortable.

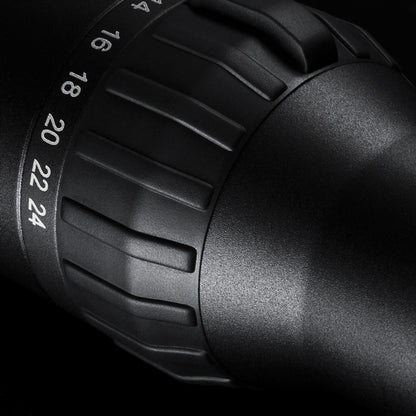

The shockproof housing is made in the form of a monolithic aluminum tube, in which all optical elements are securely fixed. The design copes well with both the multi-vector recoil of spring-piston pneumatics and the recoil of large-caliber rifled and smooth-bore firearms. The housing is covered with a double-sided matte black anodizing. The coating on the outside does not wear off and prevents scratches. On the inside, the coating diffuses light and does not allow glare and reflections to spread. The zoom ring has a rubber profiled knurling, making the process of changing the magnification even more convenient and accurate. The housing is sealed, protected from water ingress and filled with dry nitrogen to prevent fogging of the optics from the inside when the temperature changes. The lens and eyepiece have a thread that allows you to attach additional accessories, such as a sunshade and Flip-Up type covers, included in the scope's delivery set. The caps are screwed on using a special tool supplied in the kit and can also be installed over the protective hood.

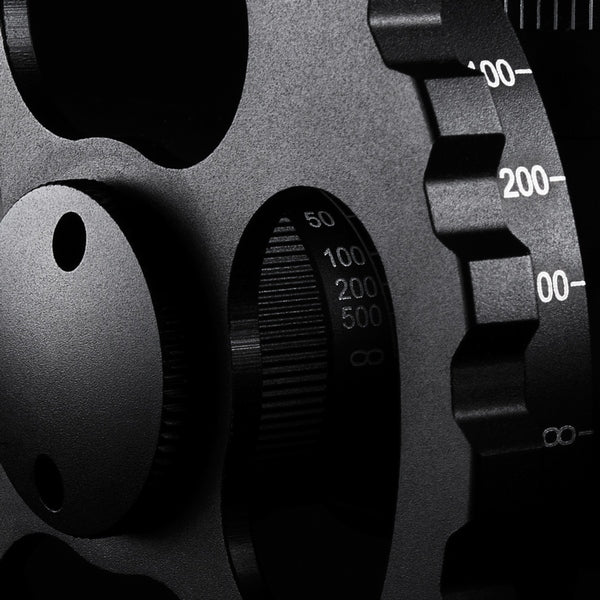

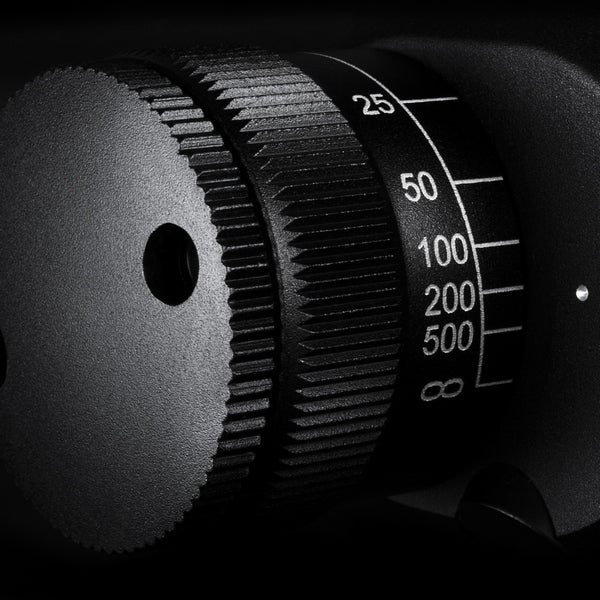

The sight is equipped with a convenient side parallax adjustment system SF (Side Focus) at a distance from 10 yards (9 meters) to infinity. The sight can be used both with a large 100-mm parallax adjustment wheel (the so-called snail) for sport shooting, and without it, adjusting the parallax with a standard drum on the body when shooting on a hunt. For quick focusing on the target, the Fast Focus focusing system on the eyepiece is provided.
The sight's vertical and horizontal adjustment drums are open, designed according to a tactical scheme, and have a division value of 0.25 MOA. This tactical design significantly simplifies the introduction of necessary adjustments during shooting, which is especially important for sport shooting, high-speed shooting or long-range shooting. The adjustment drums are equipped with a special beryllium spring, which prevents the aiming grid from "drifting". The design also provides for the possibility of calibrating the drums to fix the initial point of adjustment at the "zero" mark.

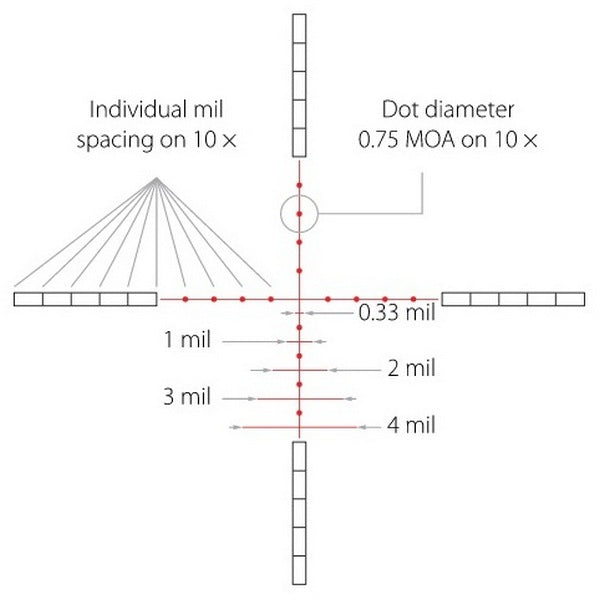

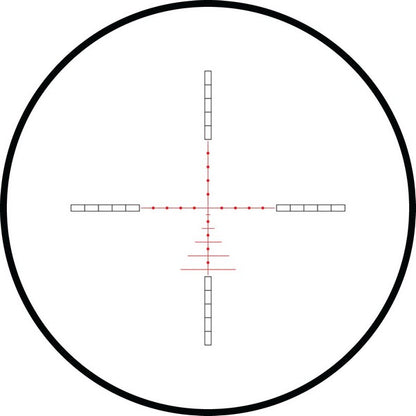

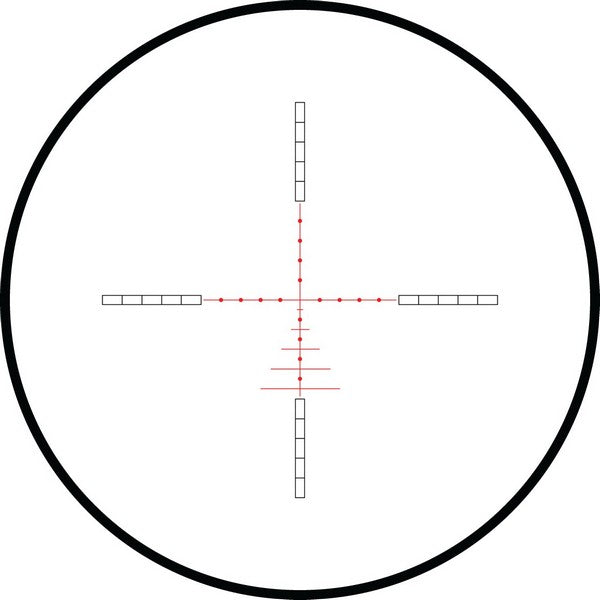

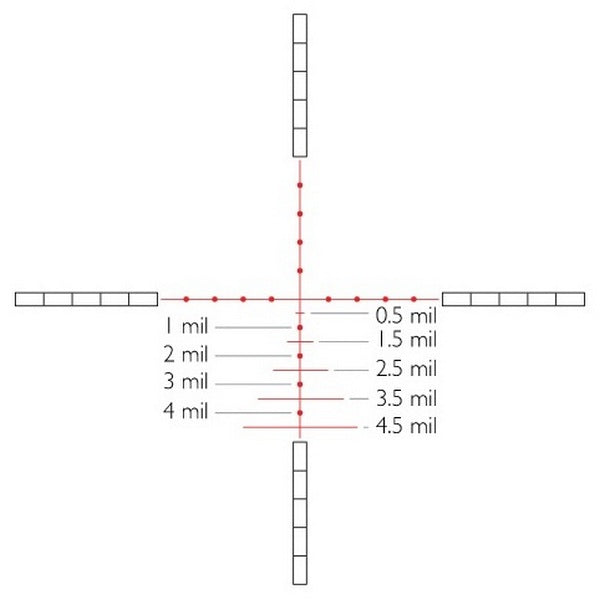

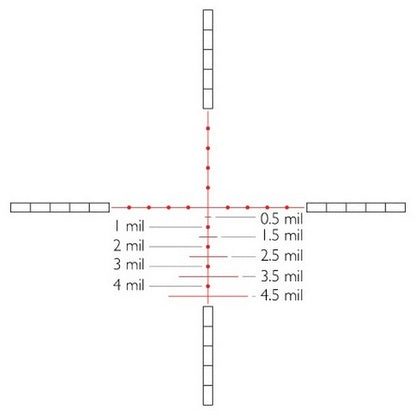

AMX IR is a special rangefinder reticle developed by Hawke Optics for airgun shooters. It is an improved Mil Dot reticle. The main difference from the regular Mil Dot reticle is that there are additional intersections in the lower part of the field of view in the form of horizontal lines of different lengths, marking half a mil. This allows for more accurate shooting at long distances, taking into account the wind correction and the complex trajectory of an air rifle bullet. Mil Dot with lower horizontal intersections has a red backlight. The side hollow rectangular areas are used to scale the terrain. All components of this reticle have strictly regulated dimensions, the distances between all elements are also regulated. The length of the lower intersections is 0.33, 1, 2,3,4 Mil respectively. This AMX reticle is correct at 10x magnification. For other magnifications, the linear and angular dimensions are determined by interpolation or according to special tables. The free ballistic calculator X-ACT will also allow you to customize the reticle for a specific magnification, weapon, and projectile type.
You can visually evaluate the ease of use of the aiming reticle directly on the manufacturer's website.
A significant advantage is that the grid is engraved on a glass plate. This provides almost 100% protection of the grid from the destructive effect of multi-vector recoil of spring-piston pneumatics. In addition, all elements of the grid are thin enough and do not block the target.

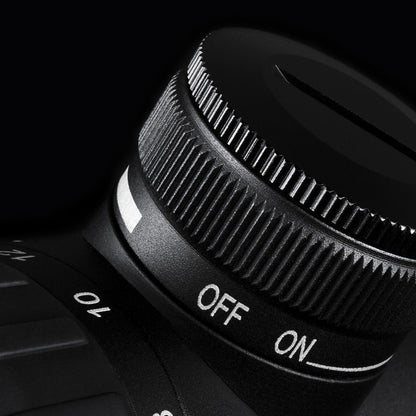

A distinctive feature is the completely smooth adjustment of the reticle illumination brightness. Unlike the classic step-by-step adjustment, the smooth-running rheostat will allow you to set exactly the brightness that is necessary for successful shooting at the moment.
Optical characteristics:
- Magnification, times: 6 -24x
- Objective lens diameter, mm: 5 0
- Exit pupil diameter, mm: 8 .33-2.08
- Field of view (m/100m): 5.8-1.5
- Exit pupil distance, mm: 102
Design features:
- Reticle: AMX IR (engraved)
- Reticle illumination: red with smooth, stepless brightness adjustment
- Reticle Focal Plane: Second Focal Plane (SFP)
- Tube diameter: 30 mm
- The division value of the adjustment mechanism of corrections, angle min. 1/4" (0.25 MOA) @ 100 yds
- Maximum range of adjustments, MOA: 65
- Side Focus (SF) parallax adjustment, from 9.1 m to infinity
- Focusing: Fast Focus on eyepiece
- Lens coating: Fully Multi coated 16 layers
- Waterproof, shockproof, nitrogen filled construction
- Case: monolithic, made of aircraft aluminum 6061-T6
- Threads on the eyepiece and objective for attaching additional accessories
Equipment:
- Aim
- 100mm parallax adjustment wheel
- 100mm sunshade
- Aluminum protective caps for the lens and eyepiece
- Optics cleaning cloth
- Tool for unscrewing lens and eyepiece caps
- Tool for unscrewing the screw fixing the parallax adjustment wheel
- Battery CR2032 - 2 pcs

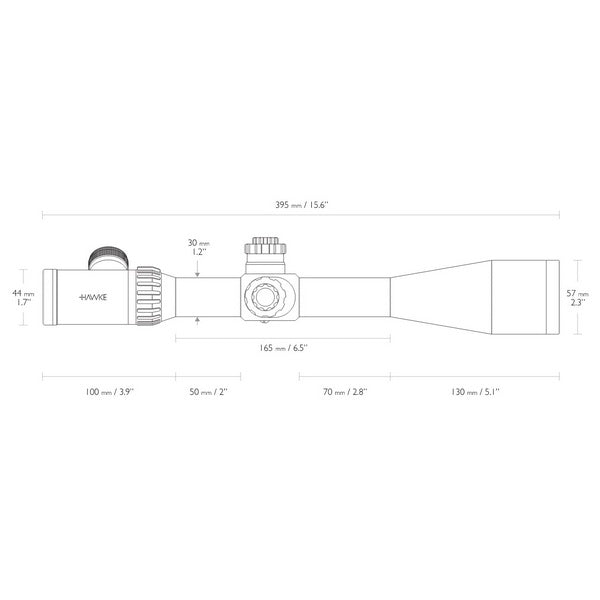

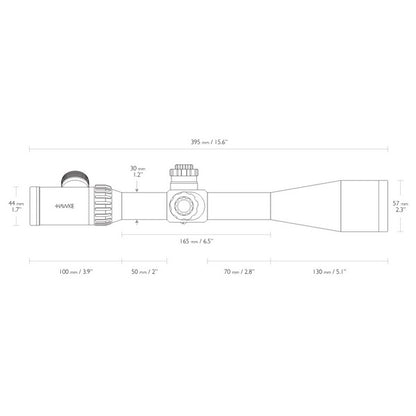

Sight dimensions, mm: 395x77x57
Dimensions in packaging, mm: 470x160x90
Weight of the sight, kg: 0.757
Weight in packaging, kg: 1.69
Manufacturer: Hawke (United Kingdom)
Warranty: 1 year
| Manufacturer code: 923255 Parameters: Warranty: 12 months Country of brand registration: Great Britain Features: Waterproof, fog-proof, shock-resistant, nitrogen-filled construction Sight length: 395 Grid type: AMX Parallax adjustment: Side focus parallax adjustment SF (Side Focus) Section: Sights
