Description
The new Hawke Vantage IR series of optical sights is now even more resistant to powerful recoil and is recommended for installation on firearms and air rifles of any caliber. The Hawke Vantage IR 2-7x32 (30/30 Centre Cross IR R/G) sight has a monolithic body made of aircraft aluminum, an engraved reticle with red and green illumination, a fast focusing system and a very smooth and precise mechanism for changing the magnification. Each optical surface has eleven layers of anti-reflective coating to transmit high-quality images. Hawke Vantage IR is a new standard of quality in its price category.

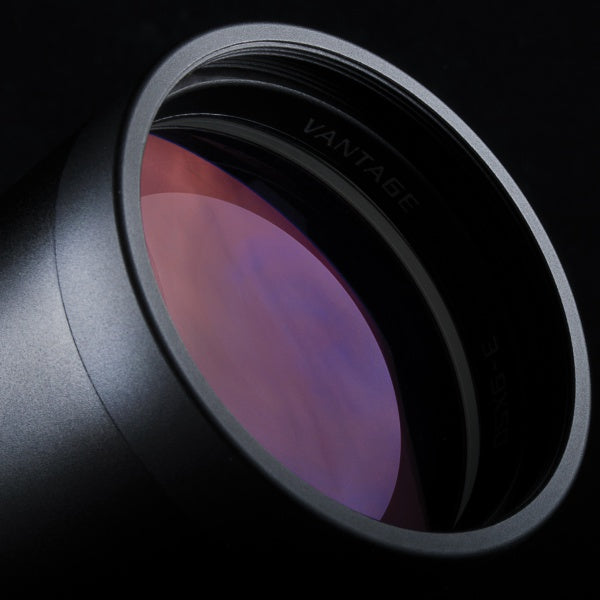

The main characteristic of any sight is the quality of optics. Hawke Vantage IR sights are optical devices with high quality optics. All optical surfaces (achromatic objective, eyepiece and reversing system) are covered with 11 layers of anti-reflective coating, which greatly reduces light loss during reflection and provides high resolution of the target image.
The shockproof body is made of lightweight and durable aluminum alloy. Both the outside and the inside of the body are covered with a matte black coating using anodizing, which does not wear off, does not scratch and provides excellent performance characteristics. All moving parts of the body have a profiled knurling, due to which adjusting the sight even in thick winter gloves will not be a problem.
The body is sealed, protected from water ingress and filled with dry nitrogen to prevent fogging of the optics from the inside due to temperature changes.

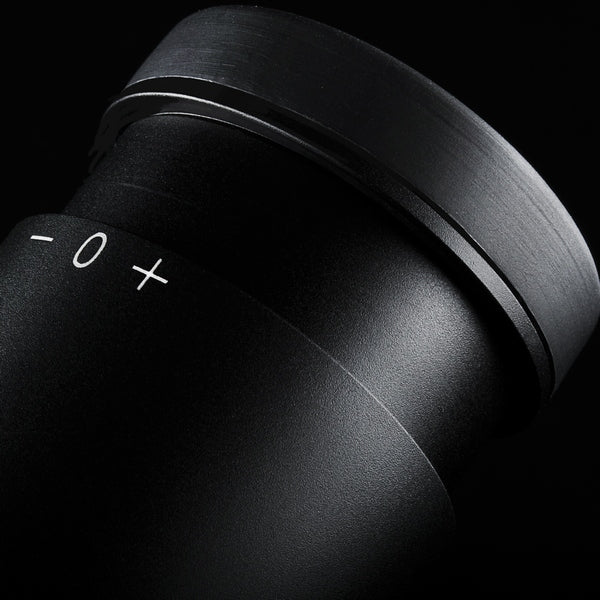

The scopes have a pre-set parallax setting of 100 yards (91 m) at the factory. The Fast Focus focusing system on the eyepiece is provided for quick focusing on the target.

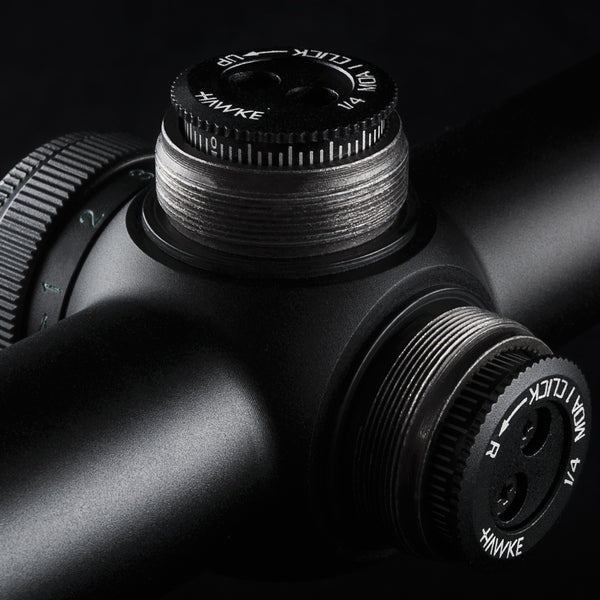

Low-profile vertical and horizontal adjustment drums are equipped with a special beryllium spring, preventing the aiming reticle from "drifting". The drums have a click value of 0.25 MOA. They are hidden under low aluminum covers. Next to the adjustment drums there is a rheostat for adjusting the brightness and switching the color of the aiming mark illumination.

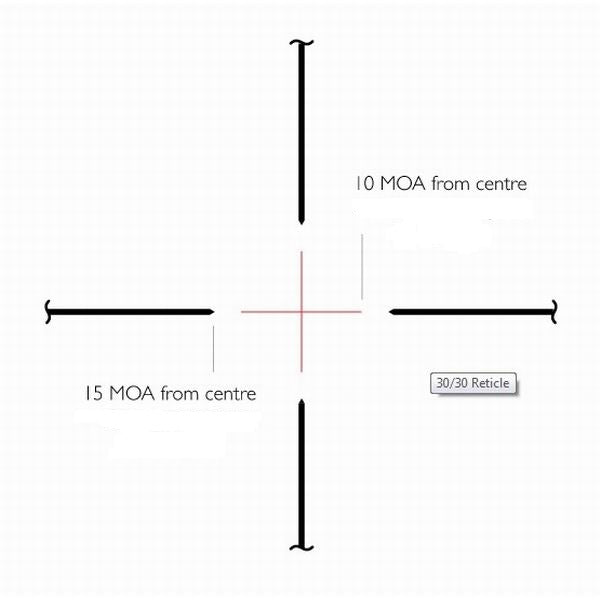

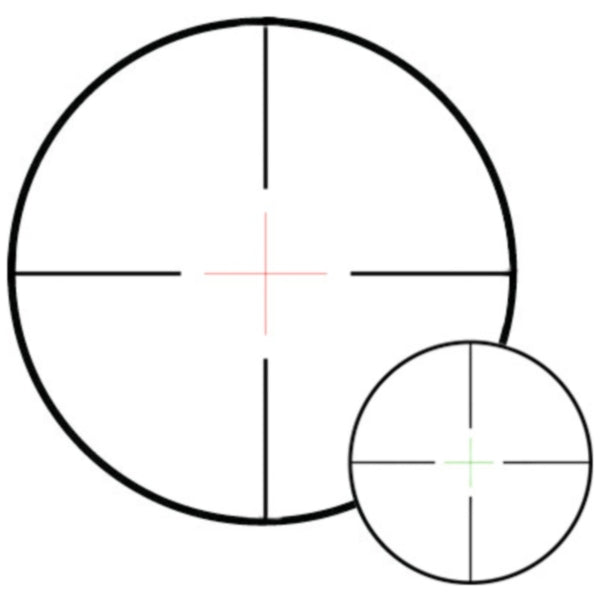

The 30/30 or Duplex reticle is one of the most famous, simple and popular. It can be used to solve several problems at once. Thick outer lines allow you to easily track a large target and shoot at it offhand. Thin lines allow you to accurately aim at a small target. The thin crosshair of the 30/30 reticle does not darken the target and does not merge with the dark background. The distance between the edges of the opposite reticle lines corresponds to 30 inches at 100 yards with 4x magnification, which also allows you to roughly estimate the distance to the target. For other magnifications, the range values are calculated by interpolation or using the X-ACT ballistic calculator
You can visually evaluate the ease of use of the aiming reticle directly on the manufacturer's website.
A significant advantage is that the grid is engraved on a glass plate. This provides almost 100% protection of the grid from the destructive effect of the multi-vector recoil of spring-piston pneumatics.
An important point is the presence of a two-color illumination of the aiming grid. The red illumination is brighter and is more convenient to use in the daytime and evening. At night, the green color, which is less irritating to the eyes, provides clear contours of the aiming mark and does not illuminate the plane of observation. Each of the colors has 5 degrees of brightness.
Optical characteristics:
- Magnification, times: 2-7x
- Objective lens diameter, mm: 32
- Exit pupil diameter, mm: 17.5-5.9
- Field of view (m/100m): 15-4.7
- Exit pupil distance, mm: 89
Design features:
- Reticle: 30/30 Centre Cross IR (engraved)
- Reticle illumination: red/green, adjustable, 5 brightness levels for each color
- Tube Diameter: 25.4 mm (1 inch)
- The division value of the adjustment mechanism of corrections, angle min. 1/4" (0.25 MOA) @ 100 yds
- Maximum range of adjustments, MOA: 140
- Parallax adjustment: Factory preset to 100 yards (91 m)
- Lens coating: Fully Multi coated 11 layers
- Waterproof, shockproof, nitrogen filled construction
- Case: monolithic, made of aircraft aluminum 6061-T6
Equipment:
- Aim
- Transparent protective light filter covers for the lens and eyepiece
- CR2032 lithium battery
- Optics cleaning cloth

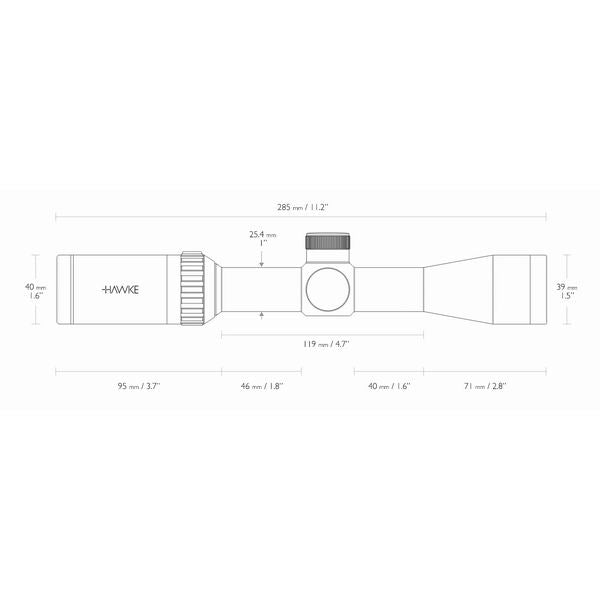

Length, mm: 285
Weight, kg: 0.395
Manufacturer: Hawke (United Kingdom)
Warranty: 1 year
| Manufacturer code: 922105 Parameters: Warranty: 12 months Country of brand registration: Great Britain Features: Waterproof, fog-proof, shock-resistant, nitrogen-filled construction Sight length: 285 Mesh type: 30/30 Centre Cross IR Parallax adjustment: fixed 91 m Section: Sights
