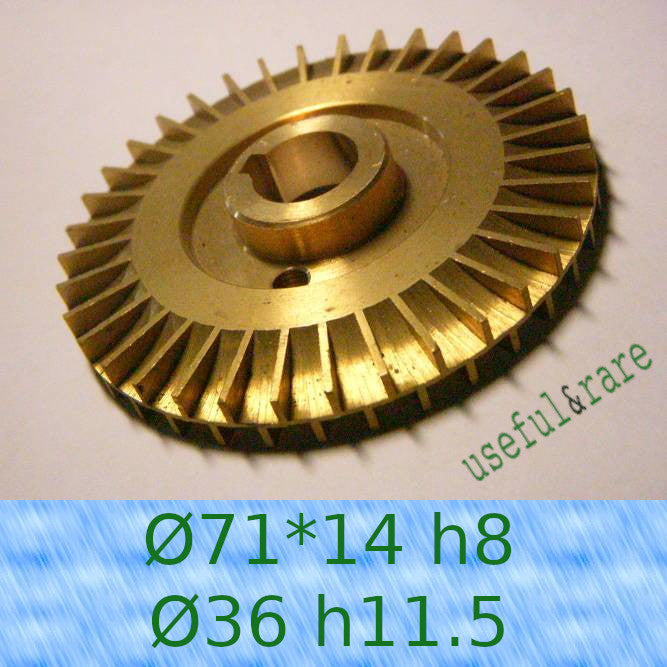

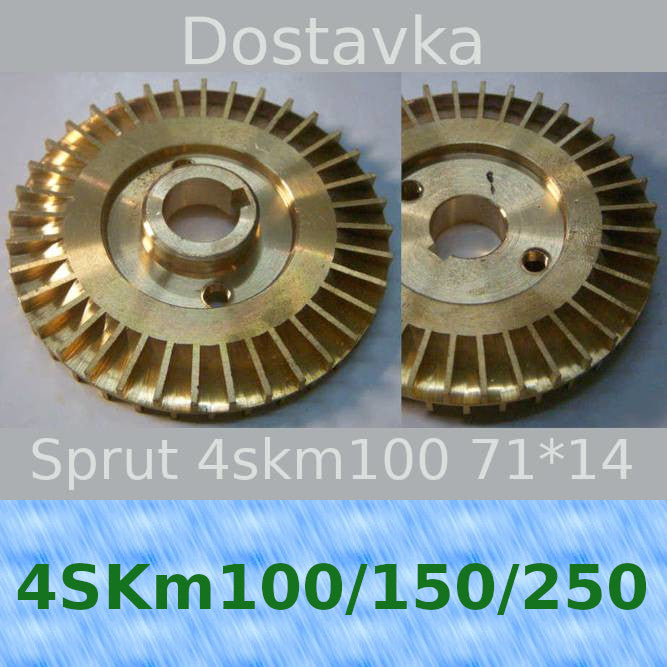

4skm 100/150 vortex pump impeller wheel d71*14 on key h8-12

Brass impeller wheel for the Maxima 4SKM 100, Omnigena, Sprut, Euroaqua, SKM 100, 150, APC, Vikhr SN-100, UNIPUMP, Aquatica 4SKm100 (777311, 778311, 778331 DONGYIN (777311006), Svitjaz, Sprut 4SKM100/150 vortex pump, diameter 71 mm, 14 mm keyway, blade span (height) 8 mm.

Working wheel 4SKm100/150/250 (Ø14 * Ø71 * 8 * Ø36 * 11.5) (type 1/1) (brass) NPO (A08/A17/A36)

Outer diameter 71 mm
Inner diameter 14 mm
Height 8 mm
Weight 150 grams

Suitable for pumps

Aquatica 777311, 778311, 778331 Ø14 mm; h11 mm; hl 7.9 mm DONGYIN (777311006)

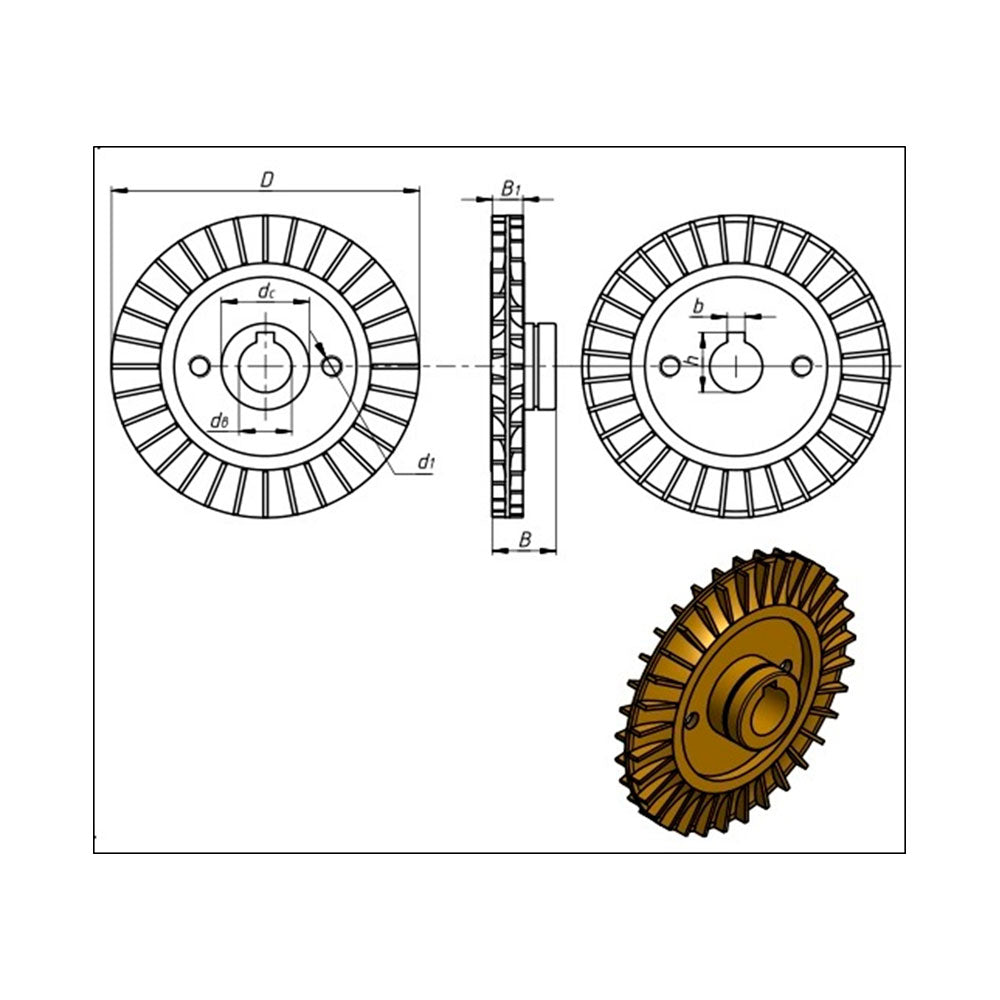

Dimensions according to the drawing:

• D - 71 mm
• dc - 22 mm
• dв - 14 mm
• d1 - M5 mm
• B - 11 mm
• B1 - 8 mm
• b - 4 mm
• h - 15.8 mm
