Description

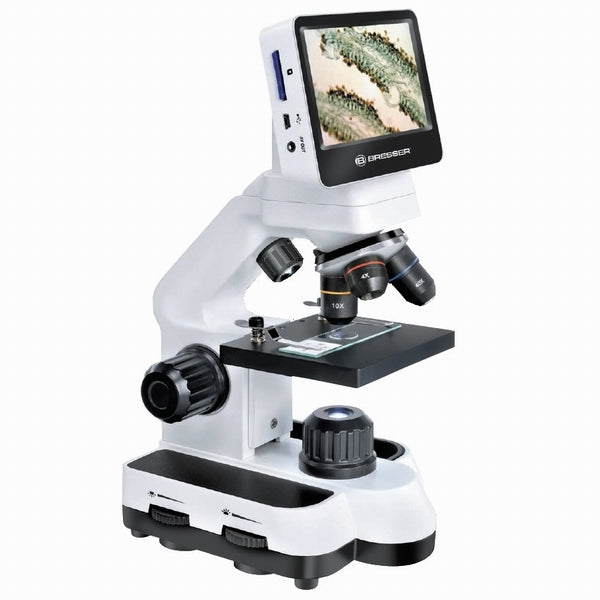

The Bresser LCD Touch 40x-1400x microscope fully meets the expectations of a modern gadget. Now the optical characteristics are supported by modern capabilities of touch control and display of the material. This model is perfect for demonstration purposes in the learning process, where the results of observations need to be presented to a group of people on a wide-format 4.35" display. This microscope is no less interesting for home use, since it is possible to immediately record the results of observations on an SD card through the memory expansion slot in JPEG and AVI formats. Additionally, the device is equipped with a wide range of accessories and preparations for observation.
Classification:
- Type: optical-digital
- Classification: biological
- Purpose: professional, educational
Optical characteristics:
- Magnification: from 40x to 1400x
- Optical zoom: 350x (interpolated at screen resolution of 480x272 pixels)
- Digital zoom: 4x
- Objective magnification: 4x, 10x, 40x
- Eyepiece magnification: 10x
- Camera resolution: 5 Mp (2560x1920)
- Camera sensor: CMOS
Design features:
- Attachment: monocular
- Object table: movable with spring-loaded specimen holders
- Focus: Coarse
- Backlight: LED (reflected and transmitted light), separate, with power adjustment
- Aperture with six filters and six holes of different diameters
- Interface: USB, AV OUT
- Memory card slot: SD, SDHC (up to 32 Gb)
- File format: JPEG, AVI
- Display: 4.35" color touch LCD

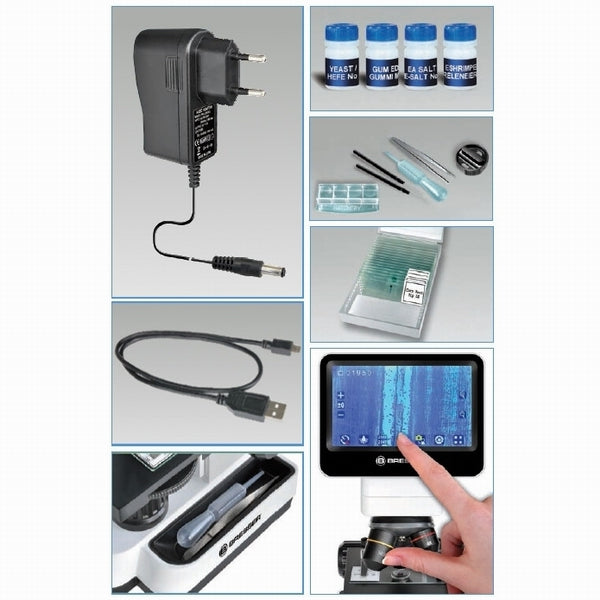

Equipment:
- Microscope: aluminum/plastic body
- Lenses: 3 pcs.
- Eyepiece: 1 pc (built-in)
- Case
- Slides: 5 pcs.
- Slides: 10 pcs.
- Hatchery
- Dissection Accessory Set
- Microtome
- Sample containers: 4 pcs.
- USB cable
- AC adapter
System requirements:
- Processor: 2 GHz
- RAM: 1 GB
- Permanent memory: 4 GB
- Optical drive: CD, DVD
- Operating system: Windows XP, 7, Vista, 8
Nutrition:
- AC power supply: 220/240V
Dimensions:
- Weight, kg: 1.3
- Dimensions, mm: 167x295x125
The Bresser brand represents a wide range of traditionally high-quality microscopes of any complexity and purpose.
This model can be successfully used for biological observations for general educational purposes at educational institutions, as well as for home use. The device is ideal for schools and universities where it is necessary to demonstrate the results of observations to a group of people.
Thanks to the use of reflected LED illumination, the microscope can be used to study opaque samples. And the adjustment of the power and direction of the lighting will allow you to concentrate the required amount of light on the sample.
The combination of digital and optical zoom allows for magnification up to 1400x, which makes it possible to distinguish the smallest details down to tenths of a micron. Coarse, fine focusing mechanisms, as well as micrometric adjustment of the stage, significantly facilitate research at high magnifications. A diaphragm with six light filters will help to observe the sample in a given lighting.
If the optics are adjusted in the usual mechanical way, the image control and documentation of the observation results are done using touch control via the display screen. Thus, the control becomes more convenient and informative. Any observations can be saved as a photo or video on a memory card, then transferred using a USB cable to a personal computer. In addition, a certain interval for photographing can be set, which allows you to observe the growth of microorganisms. The video mode is equipped with additional settings, such as color correction of the video, etc. The flat color widescreen LCD monitor (4.35") transmits the most clear and truthful image, eliminating the need for contact with the eyepiece. In real observation mode, the image can be transmitted to another display using the AV output and the corresponding cable.
A wide range of samples, a set of accessories for dissection in combination with modern digital technologies and high-quality multi-coated optics will make research not only as simple as possible, but also exciting.
Manufacturer: Bresser (Germany)
Warranty: 2 years
| Manufacturer code: 921631 Parameters: Warranty: 24 months Country of brand registration: Germany Backlight: LED Focus: Coarse Type: Optical-digital
