Description

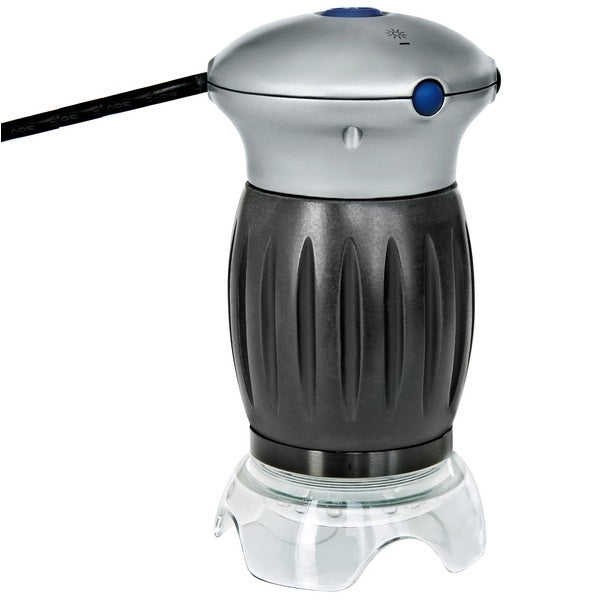

The National Geographic Universal 20x/200x Children's Microscope, upon closer inspection, will reveal itself as a rather functional and interesting device that can be used not only as a microscope for observing biological micro and macro samples, but also as a webcam. The microscope allows you to take and save photos and videos with a resolution of 1.3 MP. Observations can be carried out by fixing the microscope stationary, or by pointing it with your hand at the part of the object of interest.
It is very convenient that the microscope can be used both as a classic device with a stationary stage, transmitted and reflective illumination, a coarse focusing mechanism, and as a modern children's digital microscope, which a child can operate with one hand, examining two-dimensional opaque objects.
The controls are extremely simple and intuitive, even for a child. Using a USB cable, the microscope is powered by a computer and simultaneously transmits captured images and video in real time. The software that comes with the kit allows you to take photos and videos and thus document the results of observation.
Classification:
- Type: optical-digital
- Classification: General Purpose
- Purpose: children
Optical characteristics:
- Magnification: from 20x to 200x
Design features:
- Upper illumination: LED, 12 LEDs (6 white, 3 red, 3 yellow) various brightness modes and glow combinations
- Top light lighting modes: white, white-red, white-yellow, white-red-yellow.
- Bottom light: LED, 1 LED and matte diffuser
- Interface: USB
- Sensor: 1/3" CMOS
- Photo resolution: 1.3 MP,
- Video resolution: QVGA (320x240) 30 fps
- Stationary object table with clamps
- Focus: Coarse
Functions:
- Taking photos
- Shooting video
- WEB camera
- Transfer images to PC and view on monitor
Nutrition:
- 2 AA batteries (bottom light)
- USB (upper illumination and microscope operation)
Minimum system requirements:
- Processor: Pentium IV or higher
- RAM: 1 Gb
- Permanent memory: 4 Gb
- USB 2.0 interface
- Operating system: Microsoft® Windows® XP or Windows® VISTA, Windows® 7(32/64bit)
- Microscope: plastic case
- A stage with illumination and rack and pinion transmission for stationary use of the microscope
- Protective transparent casing
- USB cable (1.5 m)
- AAA batteries - 4 pcs.

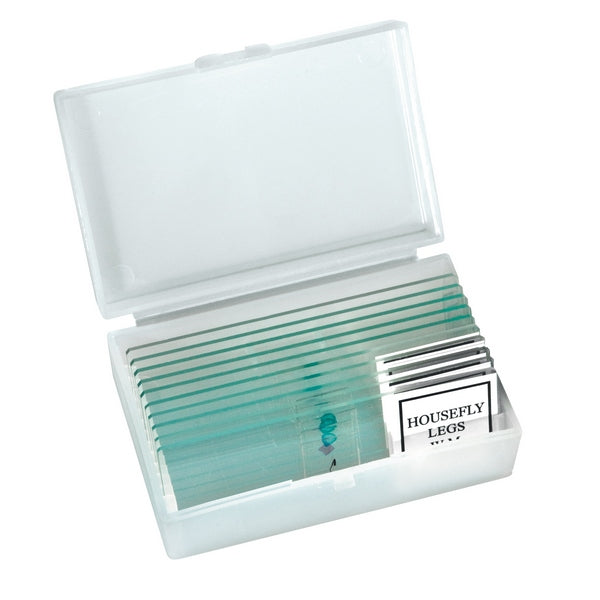

- Ready slides: 5 pcs.
- Slides: 10 pcs.
- Cover glasses6 10 pcs.
- Software
- Linear dimensions, mm: 104x54x54 (microscope without stand)
- Linear dimensions, mm: 220x105x105 (microscope with stand)
- Weight, kg: 0.144 (microscope without stand)
- Weight, kg: 0.336 (microscope with stand)
