Description

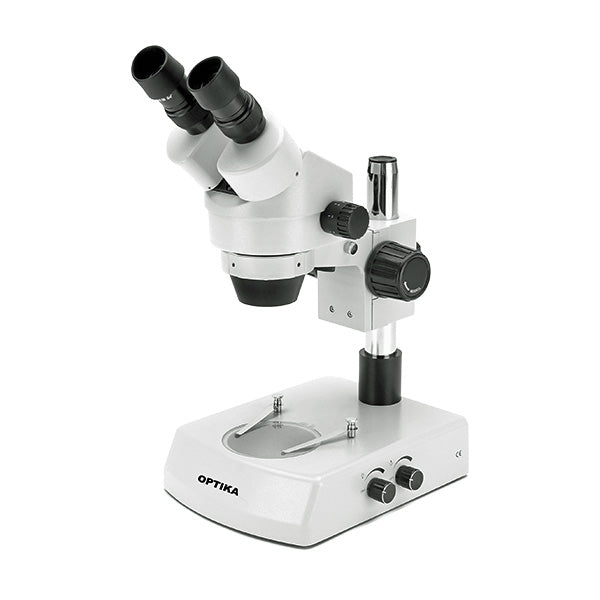

Stereo microscopes of the SZM series are specially designed for use in laboratories and industry. In terms of optical and mechanical quality, they are the best among their analogues, with an excellent price-quality ratio. A variety of optical configurations, zooming capabilities, and various illumination combinations provide wide possibilities for using SZM series microscopes where professional instruments are required at a reasonable cost. Microscopes have a 10-year warranty!

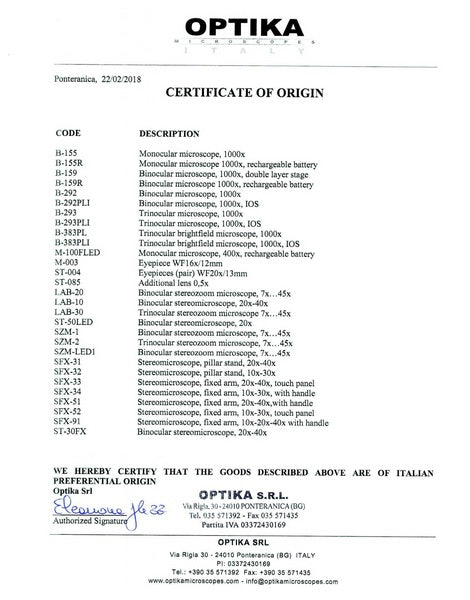

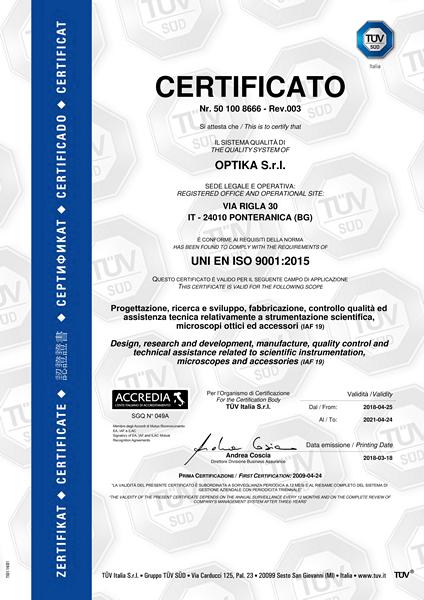

All Optika SRL products are made in Italy. Optika microscopes are developed, manufactured and assembled in the small town of Ponteranica (Bergamo province). Each microscope is accompanied by an individual serial number, indicated on the body and in the warranty card, as well as a mark on the final quality control. All products comply with the basic requirements of the relevant European EU directives and European Union standards.
Classification:
- Type: optical
- Classification: stereoscopic
- Optical design: Greenough
- Microscopy method: bright field
- Purpose: professional
Optical characteristics:
- Magnification: 7x...45x
- Objective Magnification: 1x
- Eyepiece magnification: 10x
- Zoom: 0.7x...4.5x
Design features:
- Attachment: binocular (360º rotation, 45º tilt).
- Interpupillary distance adjustment, mm: 49-75
- Diopter adjustment: ±5 on both eyepieces
- Lens: Stereoscopic zoom lens with multi-layer anti-reflective and anti-fungal coating
- Lens correction degree: achromat
- Zoom: continuously adjustable
- Eyepieces: wide-angle (linear field of view 20 mm) with increased pupil relief and multi-layer anti-reflective coating
- Landing diameter of eyepieces, mm : 30
- Object stage: stationary, with clamps for samples
- Focusing: Coarse with adjustable screw tension
- Body : metal
- Lighting: halogen lamps 12V 15W (transmitted, reflected and mixed light) with adjustable angle of illumination of reflected light
- Brightness control: separate, smooth
- Working stroke range, mm: 50-260
- Working distance, mm: 100-110
Equipment:
- Microscope: 1 pc.
- Lens: 1pc
- Eyepieces: WF10x/20mm (high point) - 2 pcs.
- Rubber eyecups blocking side light: 2 pcs.
- Disc: white/black, matte 95 mm: 2 pcs.
- Protective case: 1 pc
- Protective lens cap: 1pc
- Protective eyepiece cover: 2 pcs
- Network cable: 1pc (1.45m)
- Replacement lamp (12V, 15W) with reflector
- Fuse
Additional recommended accessories:
- Eyepieces ST-082 WF15x/15mm (pair)
- Eyepieces ST-083 WF20x/10mm (pair)
- Eyepiece ST-084 WF10x/20mm (30 mm) 10mm/0.01mm micrometr
- Additional lens for 0.5x ST-085 objective
- Additional lens for 0.75x ST-091 objective
- Additional lens for 1.5x ST-086 objective
- Additional lens for 2x ST-087 objective
- Polarization kit ST-088
- Dark-field condenser ST-040
- Jewelry holder ST-041
- Movable coaxial table ST-110
- Sliding micrometer table ST-111
- Heated table ST-666
- Halogen lamp ST-038 (12V/15W)
- Rubber eyecups ST-036 (pair)
- Object micrometer M-005 (0.1mm/0.01mm)
- Cleaning kit 15104
Nutrition:
- AC power supply: 220/240V
Dimensions and weight:
- Dimensions (height x width x depth), mm: 340x220x245
- Weight, kg: 4.9
A distinctive feature of the professional microscopes of the SZM series is the presence of a zoom, with which you can steplessly change the magnification of the microscope in the range from 7 to 45 times.
Separate controls for each backlight allow you to smoothly change the brightness and use each backlight separately or together in any brightness variation.
The design feature allows for observation of samples outside the stage, thanks to the microscope rotating around the console by 360º
The special design of the focusing mechanism provides adjustment of the tension force of the focusing screws and allows, if necessary, to fix the microscope focused on the sample. This same feature allows for greater focusing accuracy.
The objective lens is reliably protected from dust and mechanical damage by a plastic skirt. The surfaces of the eyepieces and the tube are covered with a black anodized Type III coating, which reliably resists abrasion and corrosion.
It is worth noting that diopter correction is provided for each eyepiece separately. Thanks to this, additional microfocusing can be performed, as well as the microscope can be adjusted to individual vision characteristics.
For comfortable observation, the microscope is equipped with a pair of soft rubber eyecups that allow you to fix your eyes at the required distance from the eyepieces and at the same time block unwanted side illumination. The increased pupil removal of the eyepieces is simply necessary for comfortable observation for people wearing glasses. Additional convenience of observation is provided by tilting the binocular attachment at an angle of 45º.
Designed for professional use by doctors, geologists, archaeologists, biologists, restorers, antique appraisers, assemblers of electronic microcircuits and fine mechanics. Recommended for medical and research laboratories, assembly shops.
In combination with the Optika ST-40 dark-field condenser and the Optika ST-41 jewelry holder (purchased separately), this microscope can be used as a professional device for jewelers, geologists and mineralogists. An additional lens on the 2x ST-087 objective allows you to achieve a maximum magnification of 90x. An additional lens on the 0.5x ST-085 objective allows you to increase the working distance to 165 mm.
The Italian company OPTIKA SRL has been one of the leaders in the production of professional microscopes and accessories covering almost all areas of microscopic research for 45 years. The company constantly strives for innovation and cares about its customers , not forgetting about the high quality of the product, convenience and ease of use. With proper use, Optika microscopes are designed for many years of operation.
Manufacturer: Optika (Italy)
Warranty: 10 years
| Manufacturer code: 920384 Parameters: Warranty: 10 years Country of brand registration: Italy Backlight: Halogen Focus: Coarse Type: Optical
