Microscope Bresser Duolux 20x-1280x

Classification:

• Type: optical
• Classification: biological
• Purpose: educational

• Magnification: from 20x to 1280x
• Objective magnification: 4x, 10x, 40x
• Eyepiece magnification: 5x, 16x
• Barlow lens magnification: 1x ÷ 2x (stepless)

• Attachment: monocular (360º rotation, 45º tilt)

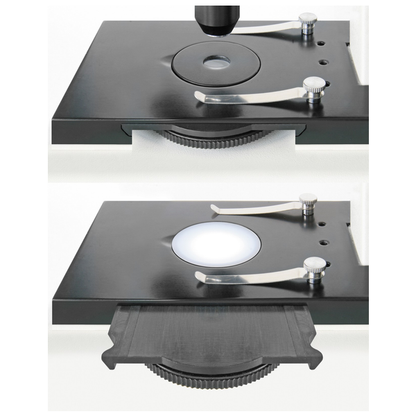

• Object stage: fixed with spring-loaded specimen holders
• Focus: Coarse
• Backlight: LED (transmitted and reflected light) with power adjustment
• Aperture: disc with 6 holes of different diameters
• Filters: 6 filters in the aperture
• Drawer at the base of the microscope body for accessories

• Microscope: metal body
• Lenses: 3 pcs.
• Eyepiece: 2 pcs (wide-angle)
• Barlow lens: 1 pc.
• Disc with condenser - 1 pc.
• Diffusing matte filter - 1 pc.
• Transparent glass disc - 1 pc.
• PC micro-eyepiece Bresser (640x480) with software - 1 pc.
• Incubator - 1 pc.
• Microtome - 1 pc.
• Set of accessories for dissection (needles, scissors, pipette) - 1 pc.
• Preparations: 4 pcs.
• Slides: 5 pcs.
• Slides: 5 pcs.
• Cover glasses: 10 pcs.
• Power supply 220 V - 1 pc.

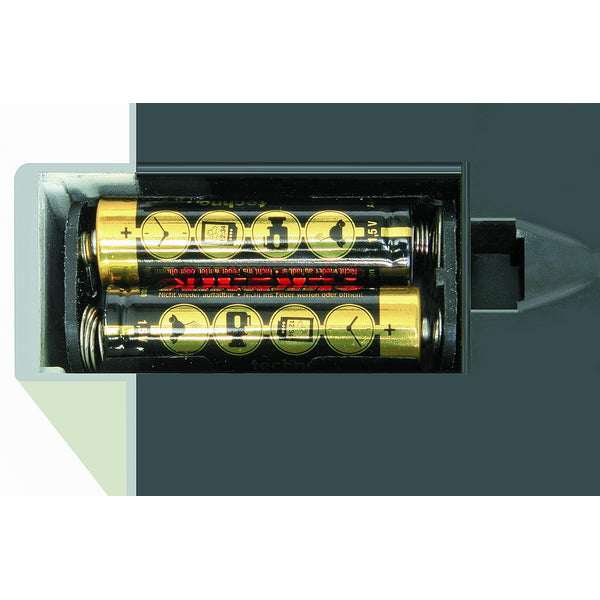

• AA batteries (LR6) - 3 pcs.
• Protective case

• AA batteries (LR6) - 3 pcs (included)
• AC power source 220 V

• Linear dimensions: 210*142*310 mm
• Weight: 2.1 kg

Monocular biological microscope Bresser Duolux 20x-1280x, which can be used both in the educational process and in the home laboratory. The microscope is designed to study micropreparations in transmitted and reflected light using the bright field method. High-quality enlightened optics provide a contrast image, and the metal body ensures high reliability of the microscope. The ability to use a digital camera to output the image to a computer monitor will allow you to show micropreparations to a large group of people at the same time or create an archive of microphotographs.

The microscope allows for magnifications in the range of 20-1280x. Due to the installation of objectives on the revolving head, it is possible to quickly change the magnification used during work. The eyepiece attachment of the microscope is inclined by 45° to the vertical and rotates by 360°, which allows you to select the most convenient position of the eyepiece for work. All optical components of the microscope are made of high-quality optical glass and have a multilayer antireflective coating, due to which good image quality is ensured across the entire field of view.

In addition to the usual eyepieces for visual observations, the microscope comes with a digital camera, which is installed instead of the eyepiece and is used to display the image from the microscope on the computer screen. This makes it possible to show the image to a large group of people at the same time or to create a home archive of micro images. It is also easy to objectively compare the results of different observations using photographs.

The microscope is equipped with two LED illuminators: the upper one is used for studying microscopic specimens in reflected light, and the lower one – in transmitted light. The illuminators can be switched on separately or simultaneously. The advantage of such a system (compared to illumination using a mirror) is that the brightness of the illumination is independent of the illumination level in the room where the microscope is installed. The upper illuminator has a manipulator in order to be able to direct the light beam directly onto the specimen, regardless of the height of the lens.

The microscope body is made of metal, which ensures its reliability and durability. There is a built-in accessory box at the base of the microscope body.

| Manufacturer code: 913535 Parameters: Warranty: 24 months Country of brand registration: Germany Backlight: LED Focus: Coarse Type: Optical
