Description

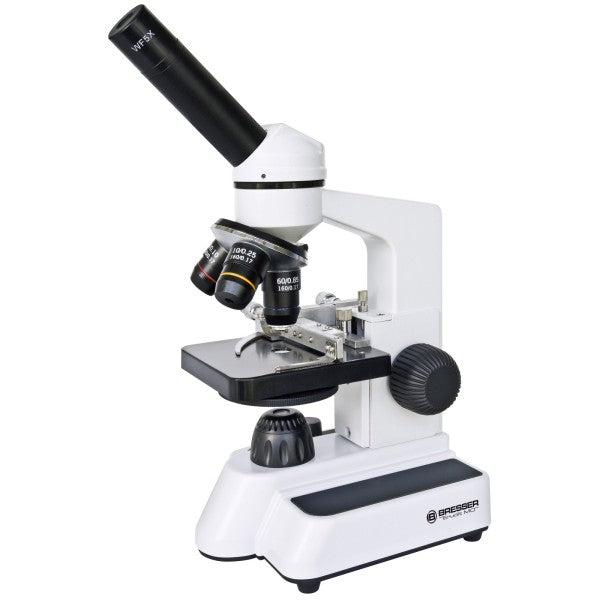

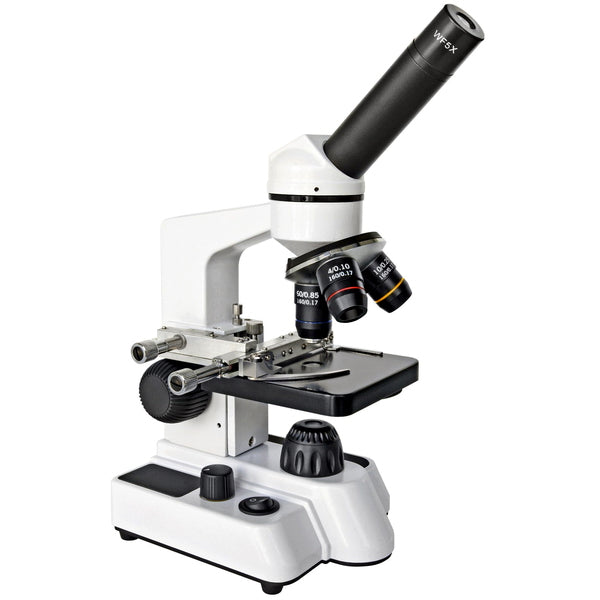

An excellent biological microscope with a wide range of accessories and devices is equally suitable for both laboratory research and home observations. The Barlow lens allows for smooth image zooming up to 1536 times. The PC micro-eyepiece allows you to save all studies on your PC in JPEG and AVI formats. The entire set is placed in a compact aluminum case for transportation.
Classification:
- Type: optical
- Classification: biological
- Purpose: professional, educational
Optical characteristics:
- Magnification: from 40x to 1536x
- Objective magnification: 4x, 10x, 60x
- Eyepiece magnification: 5x, 10x, 16x
- Barlow lens magnification: 1x ÷ 1.6x (stepless)
Design features:
- Attachment: monocular (360º rotation, 45º tilt)
- Object stage: coordinate with vernier and micrometer adjustment on both axes
- Focus: Coarse
- Backlight: LED (transmitted light) with power adjustment
- Battery: built into the microscope stand
Equipment:
- Microscope: metal body
- Lenses: 3 pcs.
- Eyepiece: 3 pcs.
- Barlow lens: 1 pc.
- Aluminum case
- Shoulder strap
- Protective case
- PC micro eyepiece Bresser (640x480) with software
- Slides with preparations: 5 pcs.
- Object glasses: 5 pcs.
- Cover glasses: 10 pcs.
- AC adapter
Nutrition:
- AC power supply: 220/240V
- Battery (built-in)
The Bresser brand represents a wide range of traditionally high-quality microscopes of any complexity and purpose.
This model comes with a wide range of accessories, lenses and eyepieces, previously available separately. This allows you to start research immediately, not only in the laboratory, but also at home.
The maximum magnification of the lens is 60x, which achieves a high degree of optical resolution. In addition, the use of a Barlow lens for stepless (smooth) image zooming is unique.
The monocular head, tilted at an angle of 45°, rotates 360°, allowing observation in any convenient position, as well as work for a group of observers without moving the microscope.
The LED lamp provides illumination of the preparation with transmitted light. The brightness of the illumination can be changed, in accordance with the attached tables, using a filter with holes of different diameters.
Additional features are provided by the PC micro-eyepiece supplied with the software. With its help, you can observe everything that happens under the microscope lens in real time on the personal computer monitor, and you can also create and edit photos and video with a resolution of 480x640. The system requirements are low: Intel Pentium 166 MHz or equivalent and higher; 98SE/2000/ME/XP/7 Windows operating system, 64 MB RAM, and 100 MB of hard disk space.

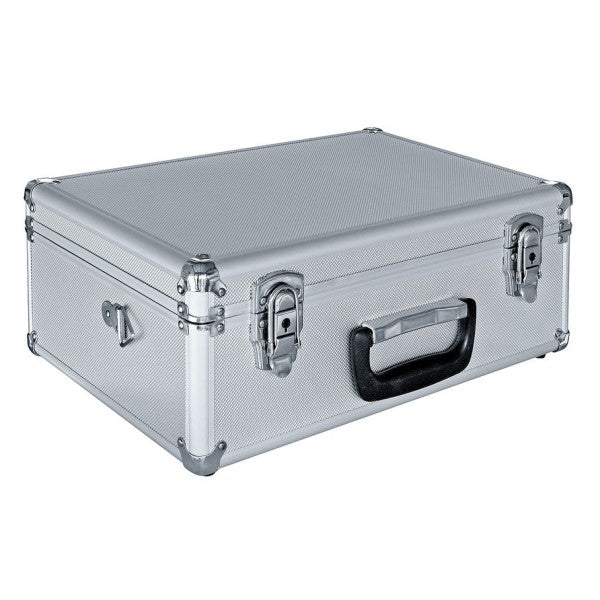

The main power supply is from a household AC power supply. In addition, a built-in battery is provided for using the microscope in the field. A roomy aluminum case with a shoulder strap is provided for transporting the device and accessories. For stationary use, a cover is provided to hide the microscope from dust.
Also available for this model is a wide range of additional accessories, devices, light sources, eyepieces and lenses of the Bresser brand. But even complete samples and accessories in combination with modern digital technologies and high-quality multi-coated optics will make research not only as simple as possible, but also exciting.
| Manufacturer code: 908555
Parameters:
Warranty: 24 months
Country of brand registration: Germany
Country of origin: China
Equipment: Microscope: metal case Objectives: 3 pcs. Eyepiece: 3 pcs. Barlow lens: 1 pc. Aluminum case Shoulder strap Protective case PC-micro-eyepiece Bresser (640x480) with software Slides with preparations: 5 pcs. Object glasses: 5 pcs. P
Power supply: battery 220/240 V
Backlight: LED (transmitted light) with power adjustment
Focus: Coarse
Object stage: Coordinate with vernier and micrometer adjustment on both axes
Tilt: 45
Rotation: 360 &
Head: Monocular
Eyepiece magnification: 5x, 10x, 1
Objective magnification: 4x, 10x, 60x
Microscope magnification: 40x - 1536
Class: Biological
Type: Optical
Type: Microscopes
