Description
This model is certainly interesting due to the presence of a PC eyepiece, which allows you to transfer research data to a personal computer and conduct real-time observation of a group of people from a personal computer monitor or laptop. The microscope optics allow you to get a maximum magnification of up to 1240x, which meets the needs of not only novice users.
Classification:
- Type: optical
- Classification: biological
- Purpose: educational
Optical characteristics:
- Magnification: from 40x to 1280x
- Objective magnification: 4x, 10x, 40x
- Eyepiece magnification: 10x, 16x
- Barlow lens magnification: 1x ÷ 2x (stepless)
Design features :
- Attachment: monocular (360º rotation, 45º tilt)
- Object table: movable, coordinate with vernier
- Focus: Coarse
- Backlight: LED (transmitted light) 6W/6V
- Built-in battery
Equipment:
- Microscope: metal body
- Lenses: 3 pcs.
- Eyepiece: 2 pcs.
- Barlow lens: 1 pc.
- PC-micro-eyepiece Bresser (320x240) with software
- Slides: 5 pcs.
- Object glasses: 10 pcs.
- Cover glasses: 10 pcs.
- AC adapter
- A set of accessories for dissection in a case (scissors, tweezers, pipette, awl, scalpel)
Nutrition:
- AC power supply: 220/240V
Dimensions:
- Weight: 1.65 kg.
The Bresser brand represents a wide range of traditionally high-quality microscopes of any complexity and purpose.

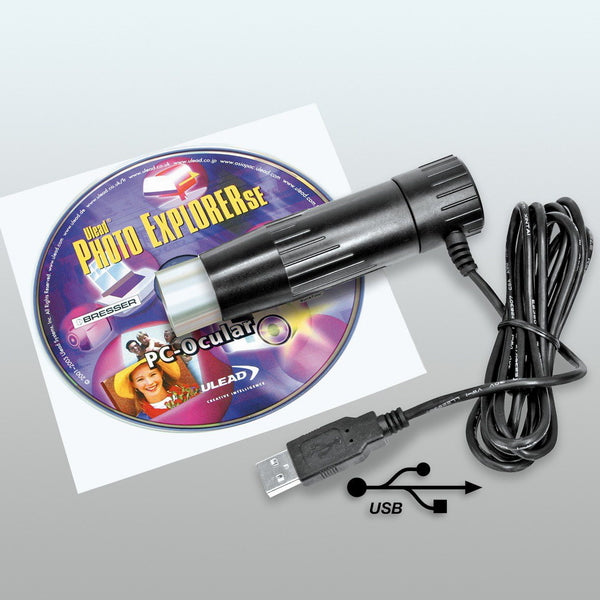

Considering the widespread computerization, Bresser offers this model of the microscope, equipped with a PC eyepiece, with which you can observe the image of the sample being studied directly from the monitor screen, and all the results of observations can be recorded in JPEG format, and then edited using the software, also supplied in the kit. The connection interface is USB.

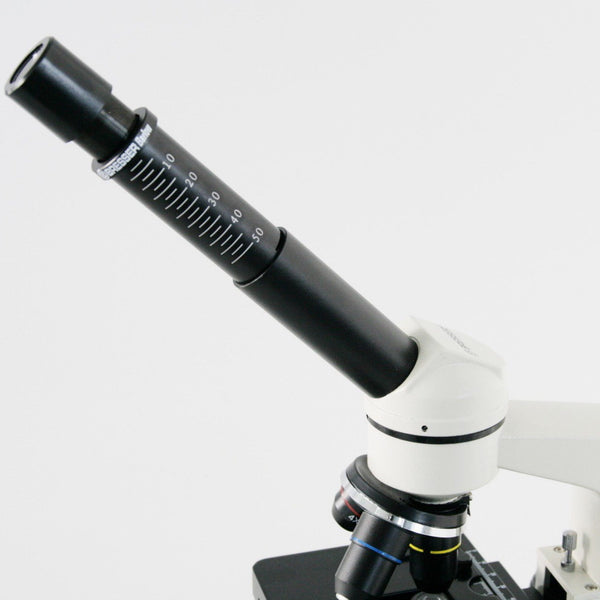

The combination of lenses and eyepieces of this model provides magnification up to 640x. When using the Barlow lens, you can smoothly zoom the image, obtaining a maximum magnification of 1280x. The monocular attachment has a convenient tilt of 45º and freely rotates in the horizontal plane by 360º. This allows several participants to take turns observing without moving the microscope in space.
The microscope is equipped with a LED backlight with adjustable power. The intensity of the light flow is also regulated by a diaphragm with six holes of different diameters.

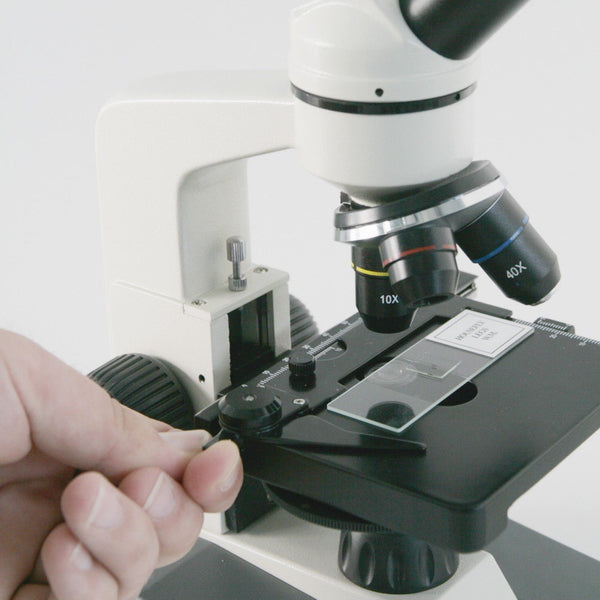

The movable stage is equipped with a vernier to ensure more precise positioning of the sample. Despite the lack of fine focusing, the flywheel of coarse focusing ensures the smoothest and most precise movement of the stage along the vertical axis.
The microscope is powered from a household AC power supply.
To a greater extent, this is, of course, an excellent household device for initial research in biology, botany, entomology, etc. However, the ability to observe the research process in real time on the display makes this device indispensable for educational purposes for demonstrating visual material to a group of people.
| Manufacturer code: 908580
Parameters:
Warranty: 24 months
Country of brand registration: Germany
Backlight: LED
Focus: Coarse
Type: Optical
