Description
At the moment, this is the most complete model of a budget microscope, equipped with a plastic case, a wide range of accessories, and a PC micro-eyepiece, which allows comfortable observation of samples directly from the monitor screen. Thus, the microscope will certainly be of interest to both children and teenagers.
Classification:
-
Type: optical
-
Classification: biological
-
Purpose: educational
Optical characteristics:
-
Magnification: from 40x to 1024x
-
Objective magnification: 4x, 10x, 40x
-
Eyepiece magnification: 10x, 16x
-
Barlow lens magnification: 1x ÷ 1.6x (stepless)
Design features:
-
Attachment: monocular (360º rotation, 45º tilt)
-
Object table: movable with specimen holders
-
Focus: Coarse
-
Backlight: LED (transmitted and reflected light) with power adjustment
-
Aperture: disc with 6 holes of different diameters
Equipment:
-
Microscope: metal body
-
Lenses: 3 pcs.
-
Eyepiece: 2 pcs (wide-angle)
-
Barlow lens: 1 pc.
-
Plastic case
-
PC-micro-ocular Bresser 5913500 (320x240) with software
-
Hatchery
-
Dissection Accessory Set
-
Preparations: 4 pcs.
-
Slides: 10 pcs.
-
Cover glasses: 10 pcs.
-
AC adapter
Nutrition:
-
AC power supply: 220/240V
Dimensions:
-
Linear dimensions: 150*100*275 mm
-
Weight: 1.2 kg
The Bresser brand represents a wide range of traditionally high-quality microscopes of any complexity and purpose.

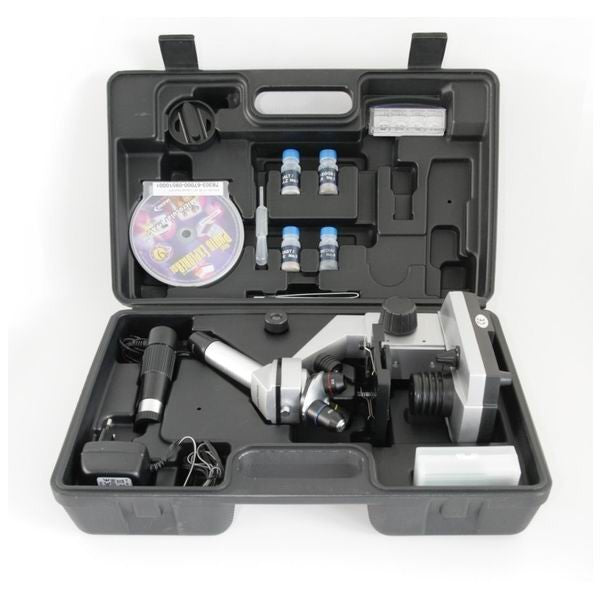

This model comes with a wide range of accessories, lenses and eyepieces necessary to start observations, which makes it possible to immediately immerse yourself in such an interesting and exciting microworld. A convenient and lightweight plastic case is designed for storing and transporting the microscope and accessories.
The combination of two wide-angle eyepieces and three objectives makes it possible to obtain a magnification of 640x. The use of a Barlow lens in a children's microscope is unique for obtaining stepless (smooth) image zooming, due to which a maximum magnification of 1024x is achieved.
The monocular head, tilted at an angle of 45°, rotates 360°, allowing observation in any convenient position, as well as playing with the microscope for a group of children without moving the microscope in space.
The LED lamp provides illumination of the specimen with transmitted and reflected light. Transmitted light is used to observe transparent objects, reflective light is used for opaque three-dimensional objects, and using two lamps simultaneously can be useful when observing translucent specimens. The brightness of the illumination and the direction of the light beam are controlled by a diaphragm with different diameters of holes.
Additional features are provided by the PC micro-eyepiece supplied with the software. With its help, you can observe everything that happens under the microscope lens in real time on the personal computer monitor, and you can also create and edit photographs with a resolution of 320x240 in JPEG format. The system requirements are low: Intel Pentium 166 MHz or equivalent and higher; 98SE/2000/ME/XP Windows operating system, 64 MB RAM, and 100 MB of hard disk space.
The microscope is powered from a household AC power supply.
The list of accessories includes ready-made slides, which you can start examining immediately. The set also includes accessories for sample preparation, as well as an incubator and ready-made preparations. Despite the fact that this device will be more interesting for children and adolescents, all optical elements are made of glass, serious magnification will allow you to examine almost everything that is accessible to an adult biological microscope.
