Description

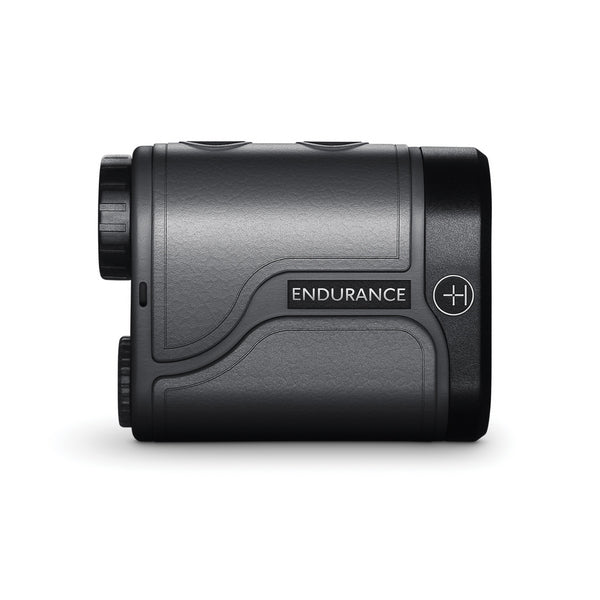

The LRF Endurance series combines the best features of Hawke rangefinders, such as compactness, multifunctionality, high-quality optics, waterproofness, and additionally received an increased measurement distance and a modern OLED display with six levels of backlight brightness. These are some of the most functional rangefinders, with 5 main modes for measuring distance and angle, which are most in demand by hunters. In addition to functionality, it is worth noting the high accuracy over the entire measurement distance and excellent centering of the laser beam.

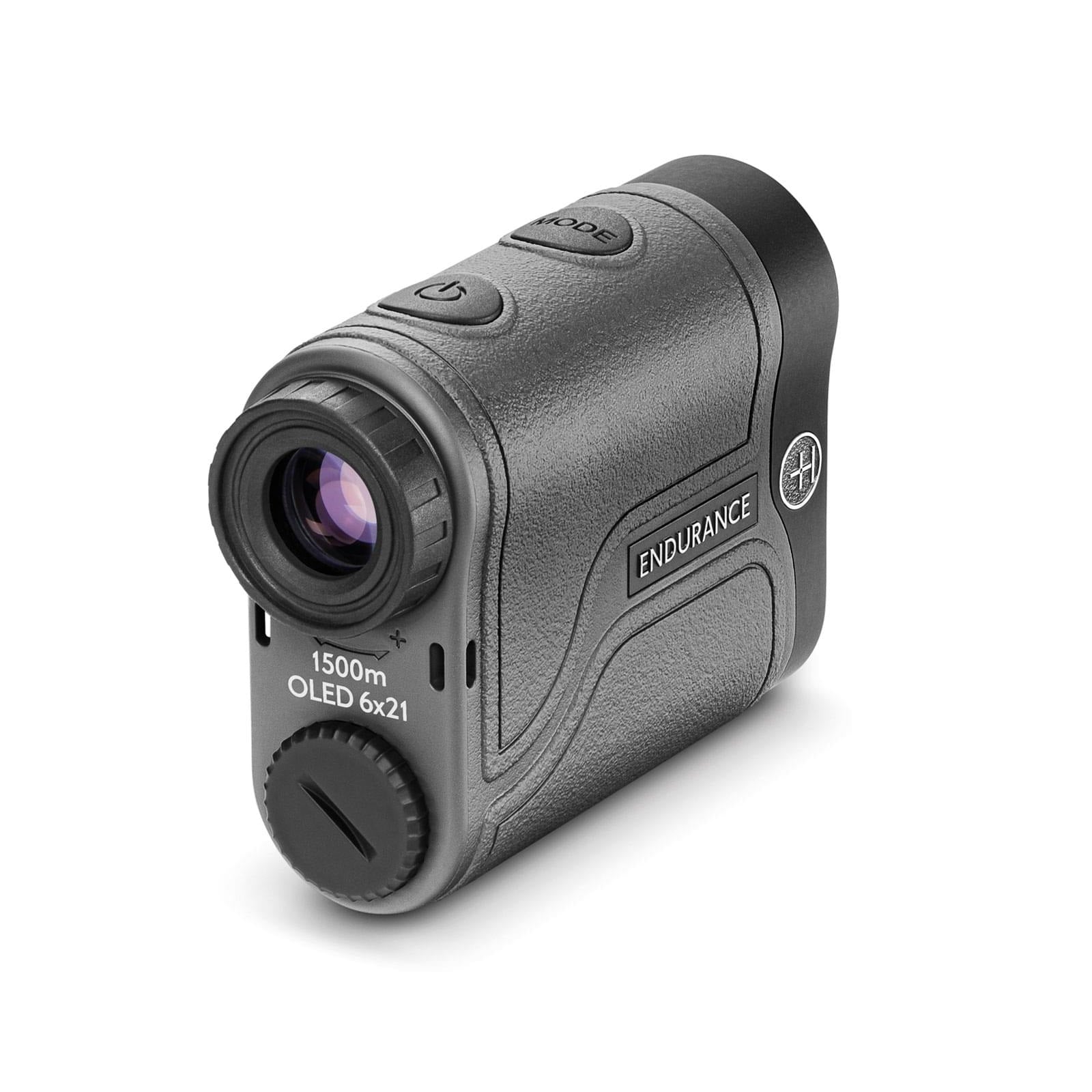

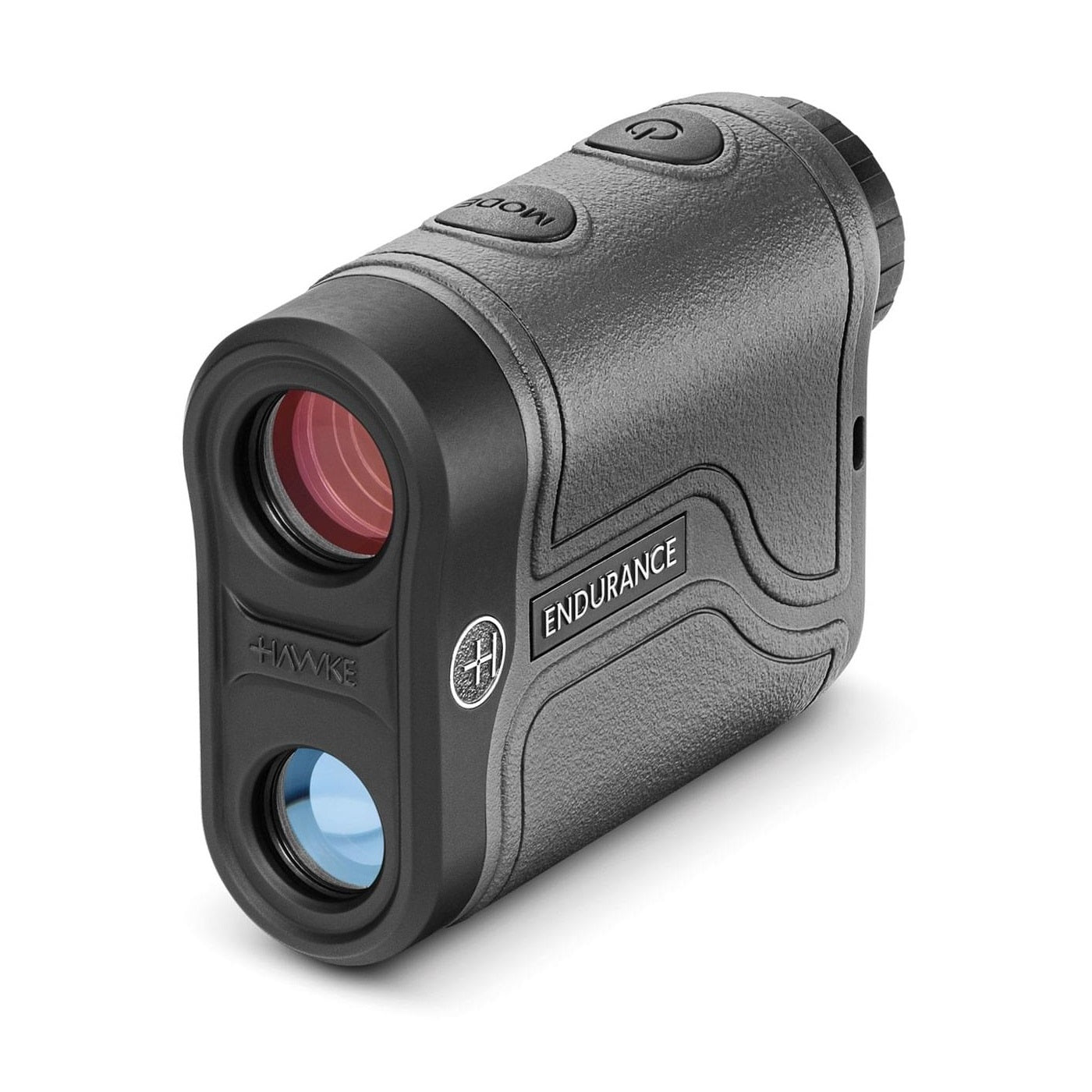

The lightweight polycarbonate body is one of the most compact among competitors, it is covered with a rubber coating with fine profile knurling. The control buttons are located in a convenient place so that the rangefinder will be equally easy to operate with the right and left hand. For precise targeting, the rangefinder has a focus on the eyepiece.
Optical characteristics:
- Measurement range, m: 5-1500
- Measurement accuracy: +/- 1m at a distance of up to 1500 m
- Maximum measurable angle (°): 90
- Magnification: 6x
- Lens diameter, mm: 21
- Field of view, m/1000 m: 140
- Viewing angle (°): 8
- Exit pupil diameter, mm: 3.5
- Aperture: 12.25
- Twilight Factor: 11.22
- Exit pupil distance, mm: 18
Design features:
- Lenses: Fully Multi Anti-Reflective coated
- Prism: BK7
- Water resistance: IPX5 (protection against water jets on the body)
- Anti-fog protection: thanks to the sealed housing and nitrogen filling
- Body: polycarbonate with non-slip rubber coating
- Focusing on the eyepiece

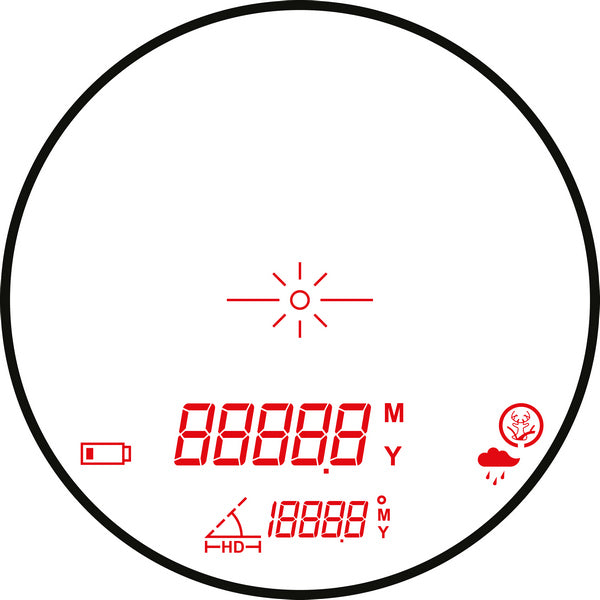

- Display: OLED backlit (6 brightness levels)
- Units of measurement: meters/yards
- Battery charge indication mode
- Reflected signal reception indication mode
- Power saving mode (if the rangefinder is not used for more than 15 seconds, it turns off)
- Memory of settings and last use mode
- Operating temperature range (°C): from -10 to +40
Measurement modes:
- STANDARD - for measuring the actual distance to an object in space, without taking into account the slope. In this mode, additional icons are not displayed on the display
- RAIN - for measuring the real distance to an object in space during rain, without taking into account the slope. Ignoring the interference of falling raindrops. The measurement distance must exceed 30 m (33 yards). In this mode, the cloud icon is displayed
- HUNT - for measuring the real distance to an object in space during hunting, without taking into account the slope. Ignoring the interference that occurs when the laser beam passes through grass and small bushes. This mode is useful for measuring the distance to fairly large targets, such as a deer moving among bushes, trees and grass. In this mode, a deer icon in a circle is displayed.
- HD (Horizontal Distance) - for measuring the distance to an object horizontally (projection of the real distance onto a horizontal surface). It is very useful that in this mode the real distance to the object and its projection onto the horizontal axis are simultaneously displayed. This mode is necessary to take into account the trajectory of the bullet when hunting in the mountains, when shooting at a large angle to the horizon. In this mode, an angle icon with the inscription HD is displayed
- ANGLE - for measuring the angle between the line aimed at the target and its projection onto the horizontal plane on which the rangefinder is located. It is very useful that together with the angle display, the real distance to the object in space is shown on the display. In this mode, the angle icon is displayed.
- SCAN - a mode of continuous scanning of the real distance to objects, when moving the rangefinder in space (convenient for determining the distance to small objects, various parts of extended objects located at an angle). Can be used in each of the modes.
- BRIGHTNESS - This mode is used to change the brightness of the OLED display backlight. The display has 6 brightness levels for ease of use during the day and night. In this mode, all icons are displayed on the display
Power supply:
- Battery CR2 3V (included)
Overall dimensions:

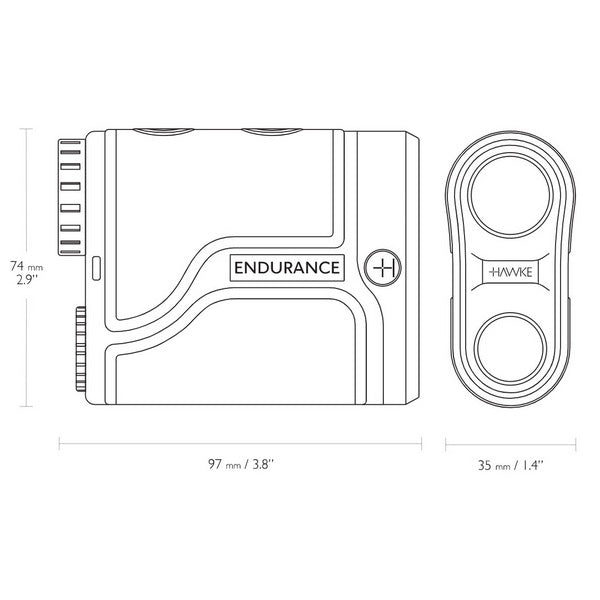

- Size, mm: 97x74x35
- Weight, kg: 0.141
Equipment:
- Hawke LRF Endurance 1500 OLED Laser Rangefinder
- Wrist strap
- Soft nylon carrying case
- CR2 battery
- Optics cleaning cloth
