Description

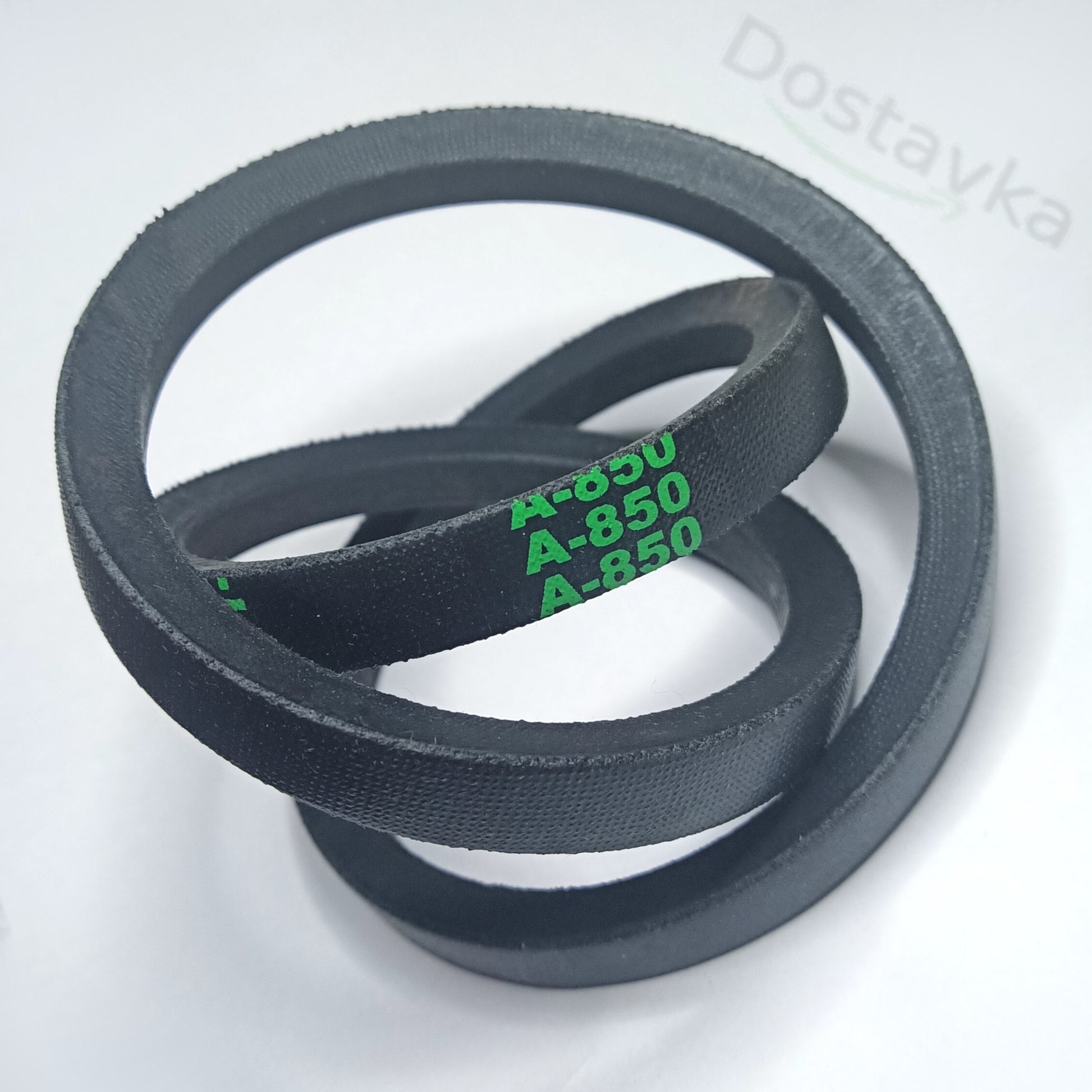

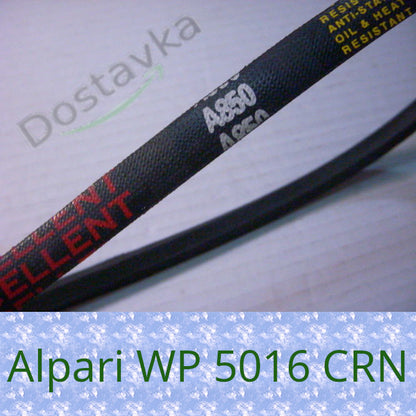

A850 V-belt for Alpari WP 5016 CRN washing machine, outer circumference length 867 mm, top width 13 mm (Profile A)
Profile A drive V-belt with a pitch length of 850 mm (A-850 / A33.5) is designed for torque transmission in washing machines, agricultural machinery, industrial machines, compressors, and ventilation systems. The belt is made of a durable, wear-resistant rubber compound with a high-strength textile cord, ensuring high resistance to stretching, constant vibrations, and environmental factors.
Key Advantages and Features:
- High Power Transmission: The trapezoidal cross-section of Profile A (13x8 mm) ensures reliable grip with pulleys and prevents slipping under load.
- Minimal Stretching: The internal polyester power cord maintains a stable length of 850 mm throughout its service life.
- Oil and Heat Resistance: The outer wrapping fabric protects the part from the negative effects of detergents, industrial oils, dust, and moisture.
- Versatile Application: Suitable for a wide range of household appliances, industrial equipment, and small agricultural machinery.
Applications:
- Household Appliances: Semi-automatic and automatic washing machines, concrete mixers.
- Agricultural Machinery and Equipment: Drives for walk-behind tractors, cultivators, lawn mowers, generators, and pumping stations.
- Industry: Lathes and drilling machines, compressor units, ventilation equipment.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Product Type | Drive V-belt |
| Marking / Profile | A-850 / A33.5 / Li 820 / Lw 850 |
| Pitch Length (Lw / Ld) | 850 mm |
| Internal Length (Li) | ~820 mm |
| Top Width | 13 mm |
| Profile Height (Thickness) | 8 mm |
| V-angle | 40Ā° |
| Material | Wear-resistant rubber, synthetic cord |
| Color | Black |
Package Includes:
- A-850 Drive V-belt ā 1 pc.
Tip before purchasing: Check the marking on your old belt. The A-850 belt may be labeled as A-850, A33.5, or Li 820. During installation, adjust the tension: the belt should not sag, but excessive tension can damage the shaft bearings.
