Description

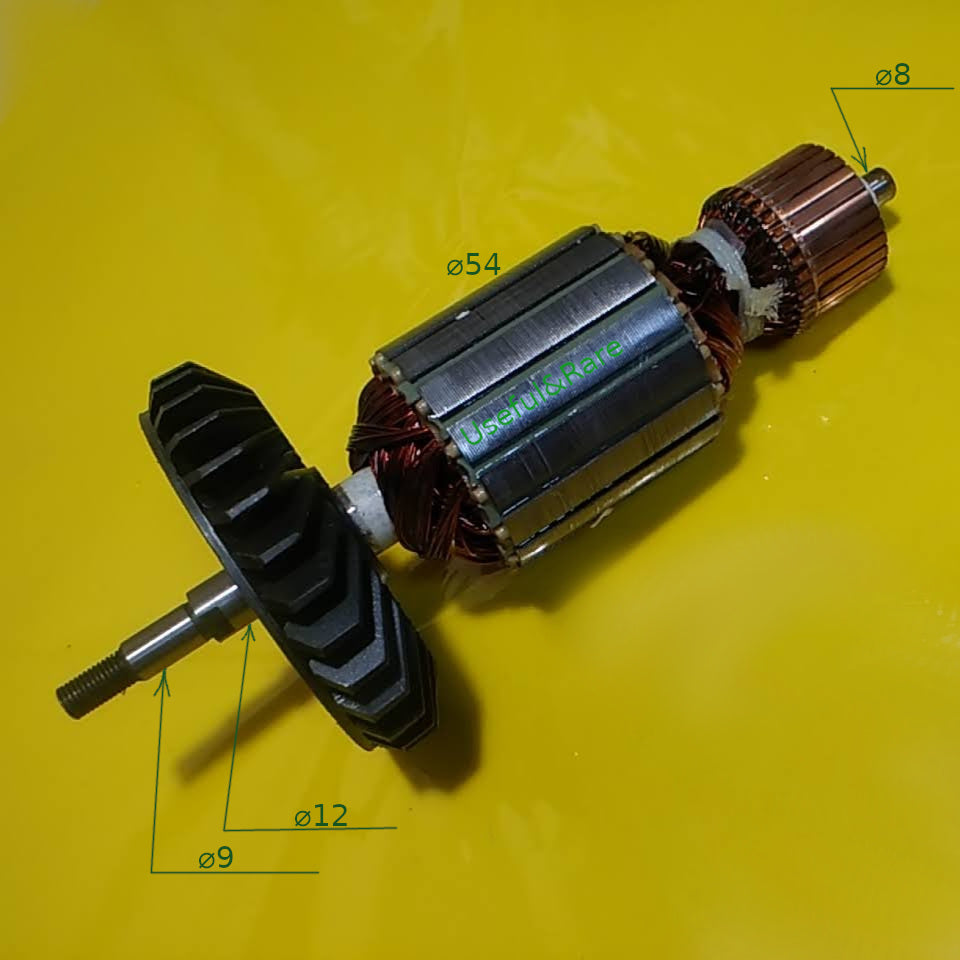

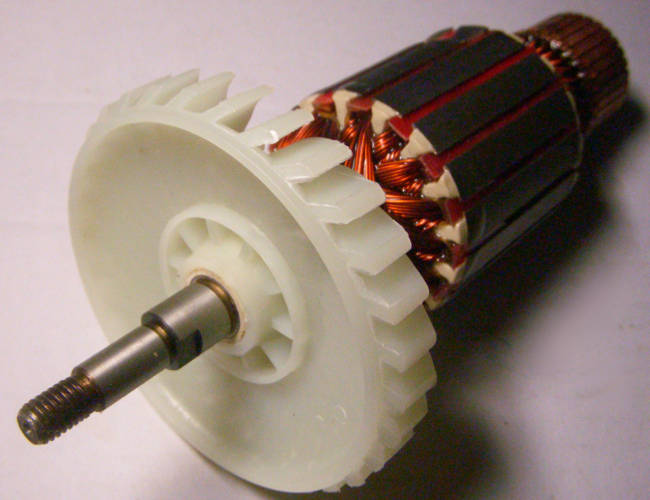

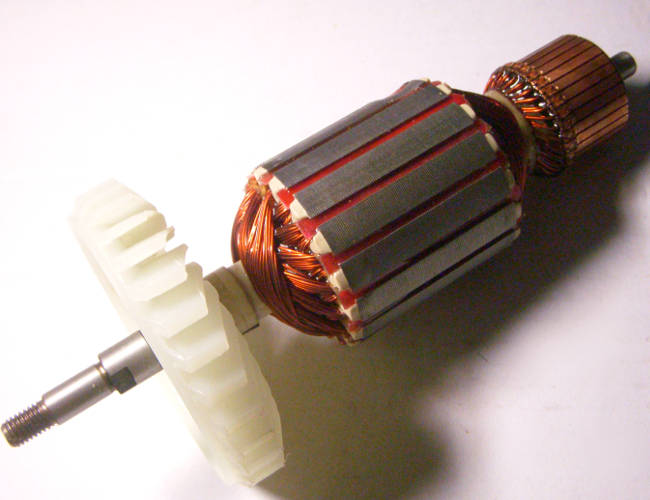

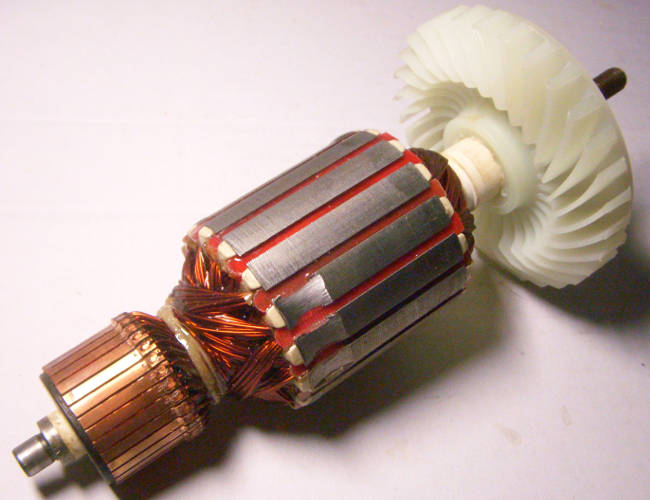

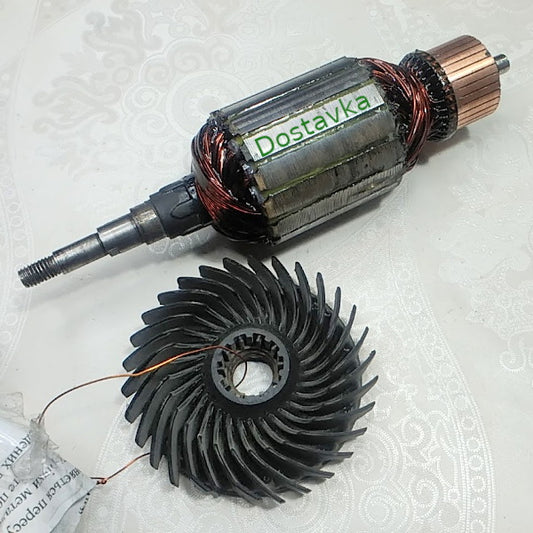

Electric motor armature for replacement in angle grinder Iron Angel, Falon Tech tag 230s, Craft-Men AG 232, Odwerk, AL-FA AG233, Craft CAG-230/2500, Eurocraft to work with 230 cutting disc. Total length 205, between bearings ~156, winding diameter 54
Overall length 206 mm
Package diameter (iron) D 54 mm length L 51 mm
Package length iron: 51 mm
Commuter diameter D 34 mm
Front bearing seat D12 mm for spline (cut on both sides) 10 mm
Rear bearing seat D8 mm
Seat for drive gear: 9 mm
Thread: right 8 mm
Between bearing seats 156 mm
