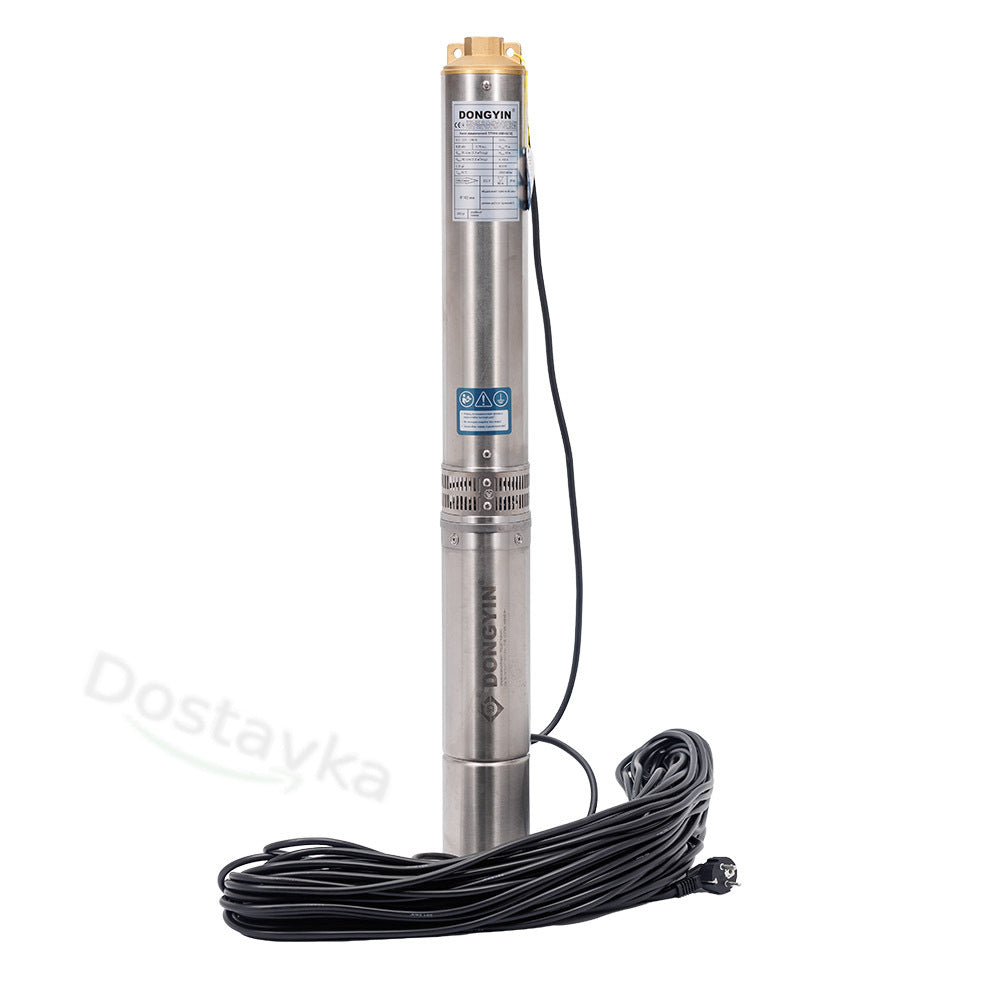

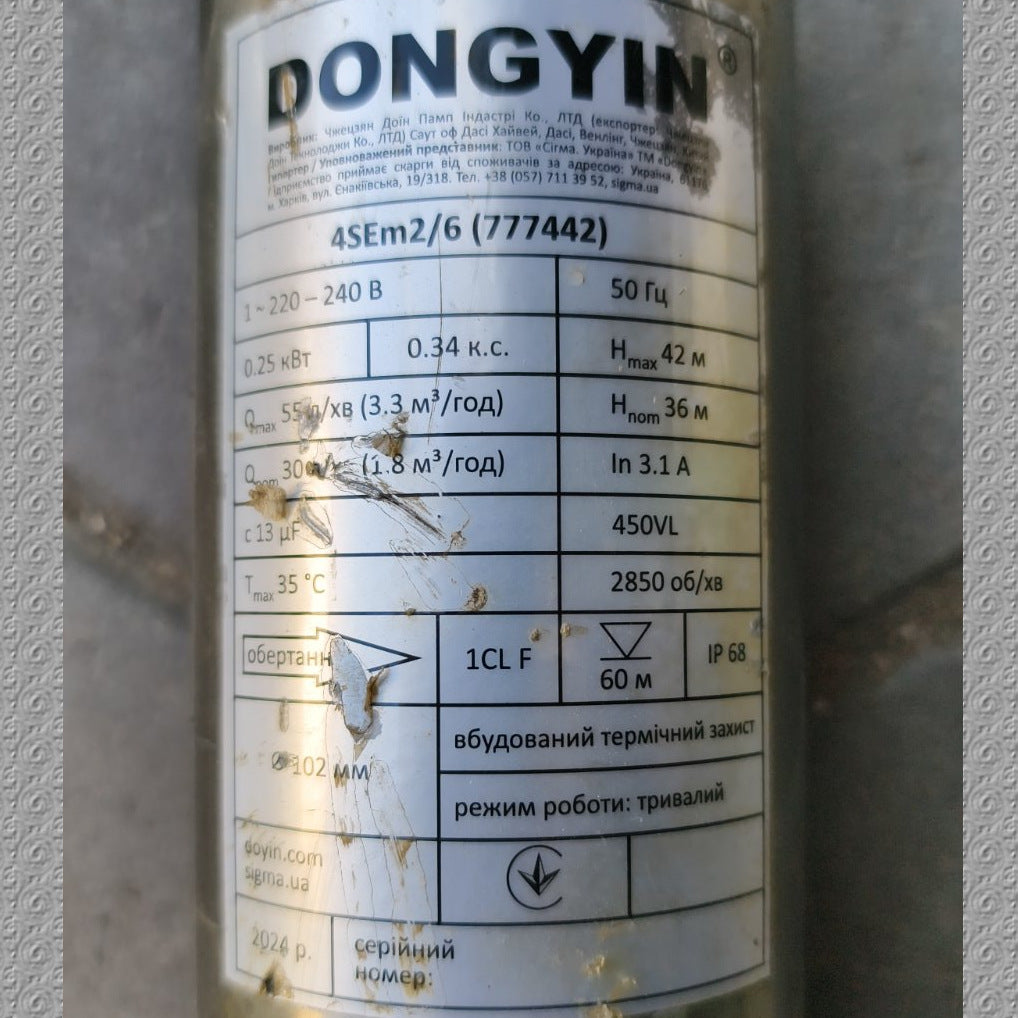

Centrifugal borehole pump 0.25kW H 42 (36) m Q 55 (30) l/min Ø102mm (30m cable) AQUATICA (DONGYIN) 4SEm2/6 (777442)
Pumps of this series are designed for pumping clean water and can be used for: domestic water supply from boreholes and reservoirs (cooling shroud installation is mandatory), pumping water into tanks, irrigation systems, and automatic water supply in conjunction with small tanks when using a pressure switch.
The pump's electric motor is connected by a cable:
- Brand H07RN-F (analog of KG-KhL)
- Copper wire cores, sheath - polyethylene terephthalate film and insulating rubber
- Flexibility – multi-wire conductive cores combined with a small twisting pitch
- Ambient air temperature from -25°C to +60°C
- Cable insulation withstands a temperature of +200°C during a short circuit lasting no more than 5 seconds
- Cross-section is calculated and corresponds to the motor power
- You can select a cable via the link >>>
Pump part:
- Pump body: stainless steel AISI 304
- Outlet flange: brass
- Pump shaft: stainless steel AISI 304
- Shaft coupling: stainless steel AISI 304
- Impeller: technopolymer
- Shaped spacer washer: technopolymer
- Diffuser: technopolymer
Electric motor:
- Motor type: asynchronous, oil-filled, with built-in thermal protection in the winding
- Stator winding: copper

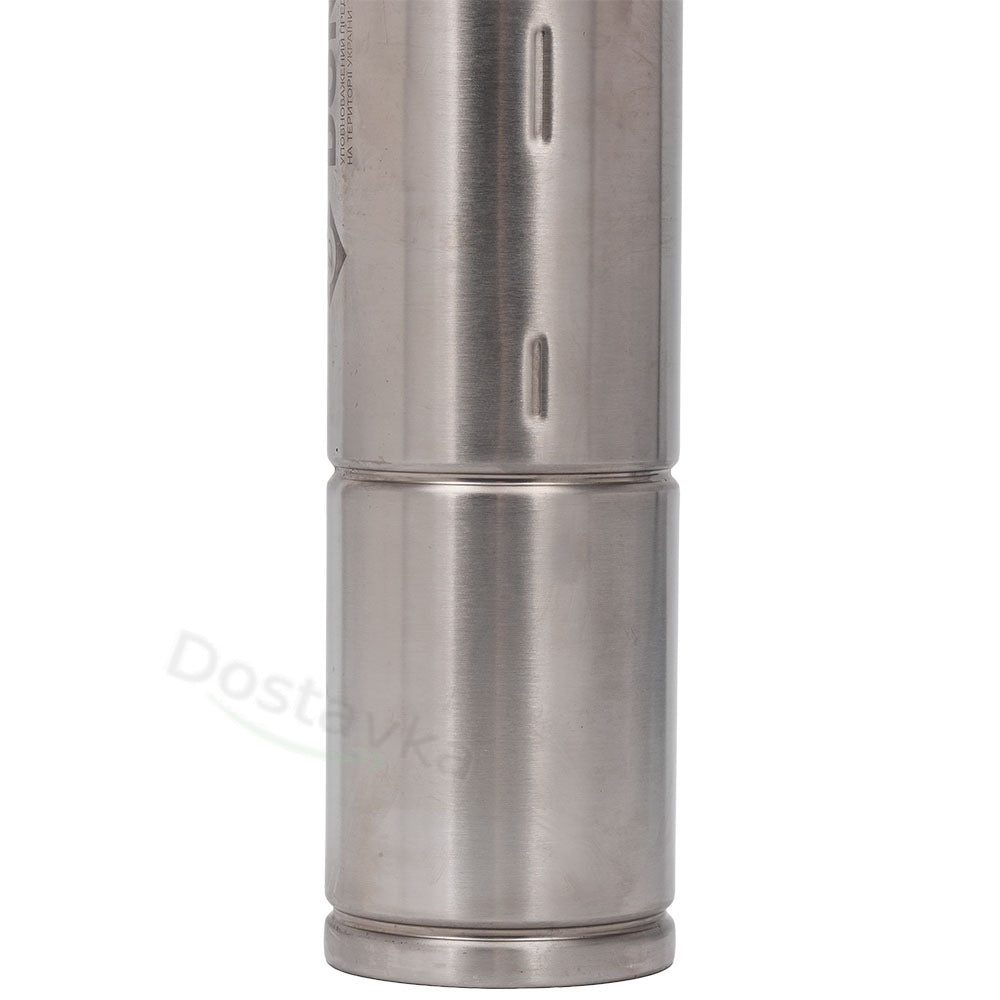

- Motor housing: stainless steel AISI 304
- Motor shaft: stainless steel
- Mechanical seal: ceramic/graphite
- Bearing: rolling (C&U)
- Voltage: U 1 ~ 230 ± 10% V
- Frequency: 50 Hz
- Insulation class: F
- Protection class: IP68
- Cable: 3×0.5 mm² × 30 m (number of cores × cross-section × length)
Application conditions:
- Maximum liquid temperature: +35ºС
- Immersion depth below water level: up to 60 m
- Well diameter: from 120 to 150 mm
- Content of abrasive impurities in suspension (sand, clay, lime, etc.): no more than 0.25%
- Water pH: 6.5-8.5
- Total water mineralization: no more than 1500 g/m³
- Warranty service period: 24 months
MAIN DATA
| Brand | Dongyin |
| Warranty, months | 24 |
TECHNICAL DATA
| Type | centrifugal |
| Power, W | 250 |
| Maximum head, m | 42 |
| Maximum capacity, l/min | 55 |
| Well diameter, mm | from 120 to 150 |
| Number of phases | Single-phase |
| Voltage | U 1 ~ 230 ± 10% V |
| Rated current, I(A) | 2.5 |
| Frequency, Hz | 50 |
| Drive motor power, hp | 0.4 |
| Motor shaft | Stainless steel |
| Impeller | Technopolymer |
| Motor type | Asynchronous, oil-filled, with thermal protection built into the winding |
| Motor stator winding | Copper |
| Mechanical seal | Ceramic/graphite |
| Insulation class | F |
| Protection class | IP68 |
| Cable length, m | 30 |
| Pumped liquid | Content of abrasive impurities (sand, clay, lime, etc.): no more than 0.25% |
| Discharge port diameter DN2, "(inch) | 1 |
| Housing material | Stainless steel AISI 304 |
| Diameter, mm | 102 |
| Maximum immersion depth below water level, m | up to 60 |
| Maximum temperature of the pumped liquid, °C | 35 |
| Minimum well diameter, mm | 120 |
| Maximum well diameter, mm | 150 |
| Diameter of suspended solids, mm | 0.2 |
OVERALL DIMENSIONS
| Gross weight (unit), kg | 12.337 |
