Description

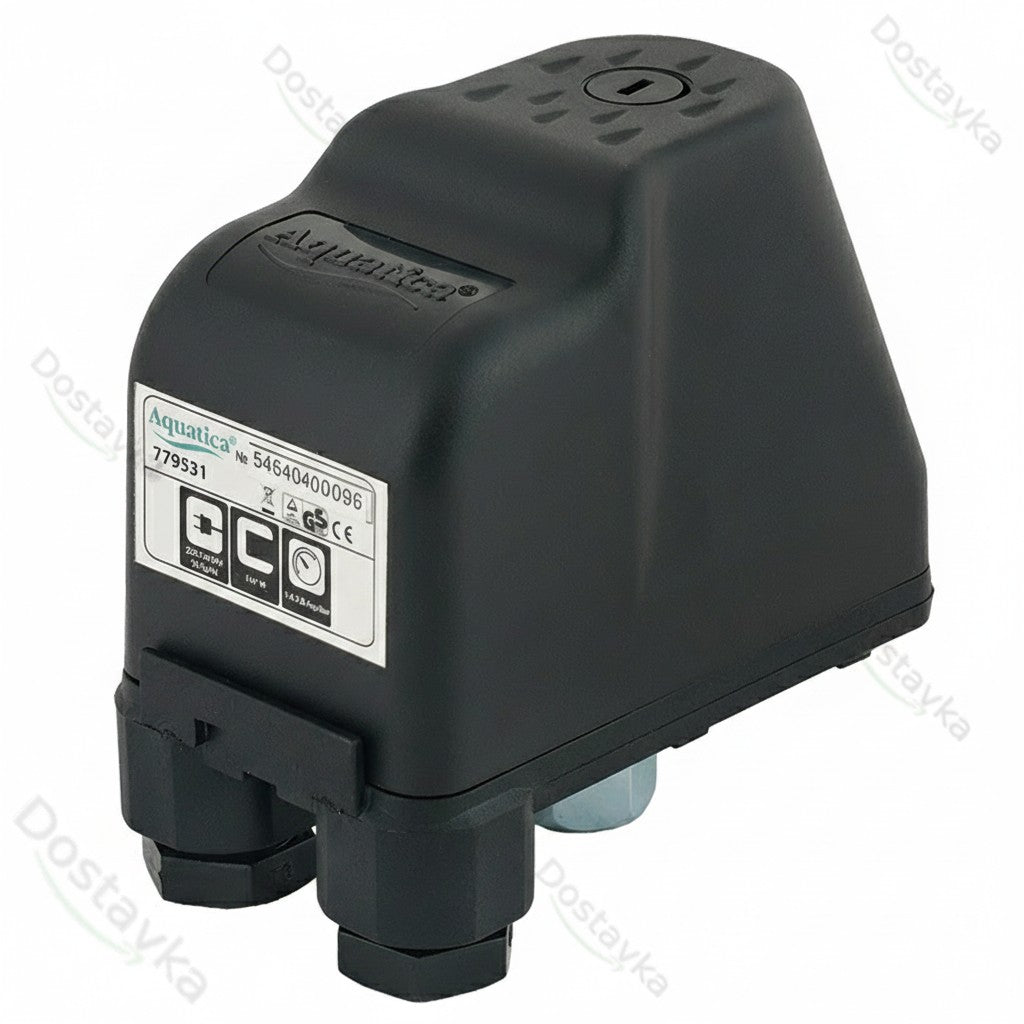

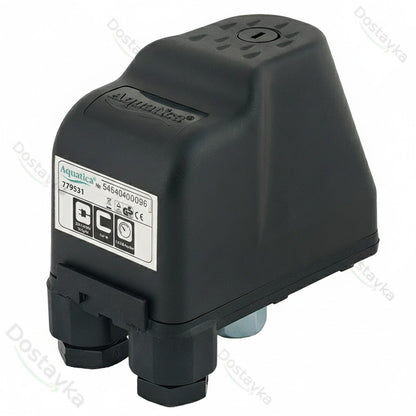

The AQUATICA (779531) mechanical pressure switch is designed for use in automatic water supply systems where the working medium is water. Based on its operating principle, the device is a two-contact electrical circuit switching relay that activates when specific water pressure values are reached.
- Brand: Aquatica, Watomo, Werk;
- Type: pressure switch;
- Functions: automatic pump start and stop, adjustable pressure range;
- Maximum connected motor power: 1.5 kW;
- Maximum current: 12 Amps;
- Internal thread in nut 14 mm (12 mm by caliper);
- Voltage: 230 Volts;
- Frequency: 50 Hertz;
- Protection class: IP44;
- Thread diameter: 1/4"F — internal thread (union nut);
- Pressure setting: cut-in 1.4 bar / cut-out 2.8 bar;
- Maximum ambient temperature: +40 °C;
- Features: operation is only possible in conjunction with a pressure tank;
- Gross weight: 0.43 kg;
