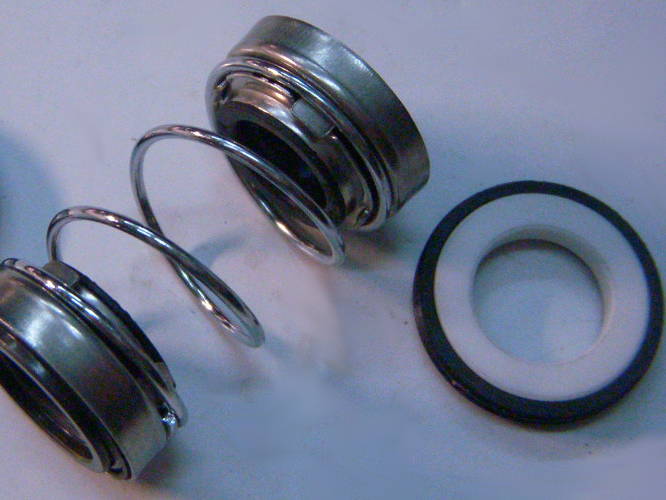

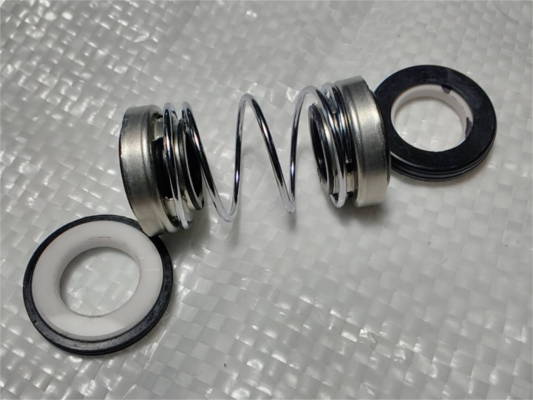

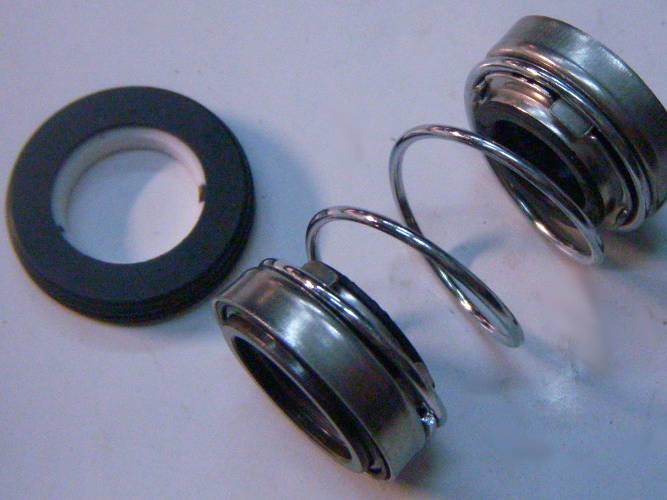

Aquatica, Sprut V250F pump double-sided mechanical seal 208-12 d24

Original mechanical end seal (ceramic/graphite - graphite/ceramic) for drainage and fecal pump Aquatica LEO 150 WQ110-10-5.5(4P), Sprut/ NPO (A05/008): V180F; V250F; any pumps with same design, with two mating fixed rings with a diameter of 24 on a shaft of 12 mm, the total length in the assembled state with rings is 50 mm

Friction planes ceramic/graphite

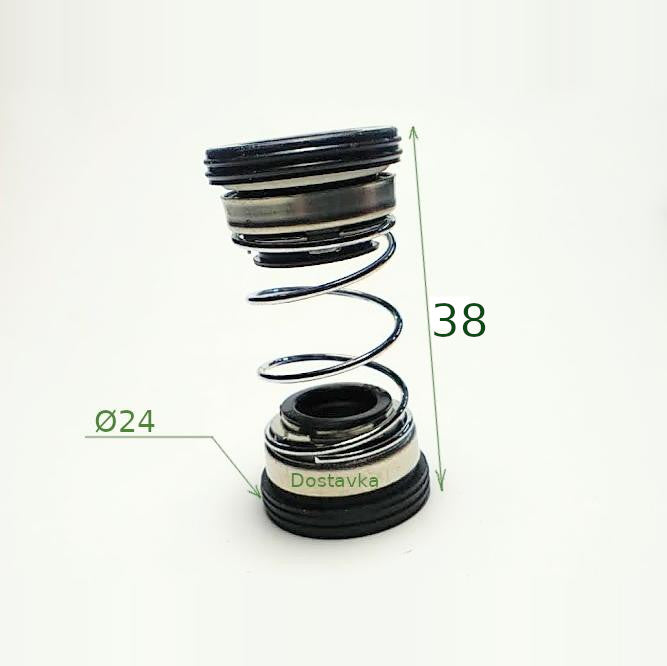

The diameter of the stationary rings in the rubber band is 24 mm
Total height with rings 38mm
Ring height 5mm

Fits NPO/Sprut models

(A05/008): V180F; V250F;
(B01/039): DRQ370F, DRQ450F;
