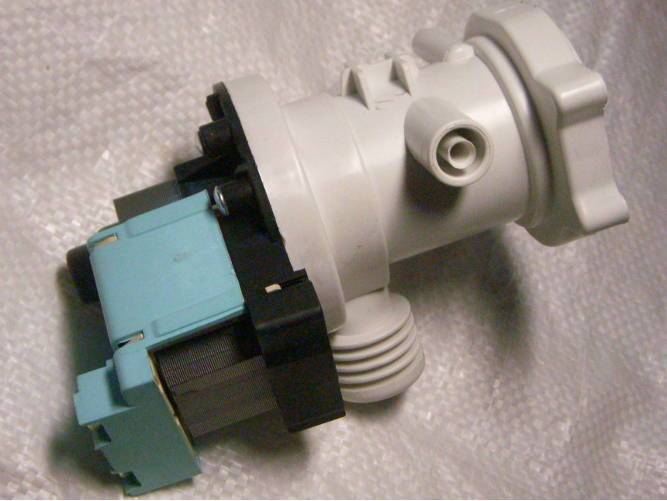

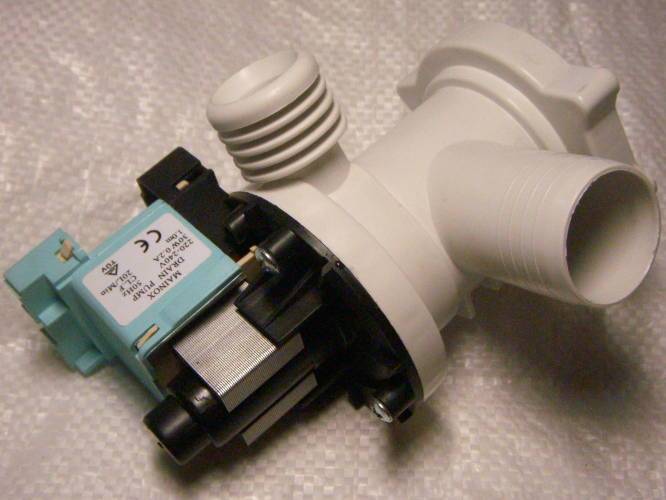

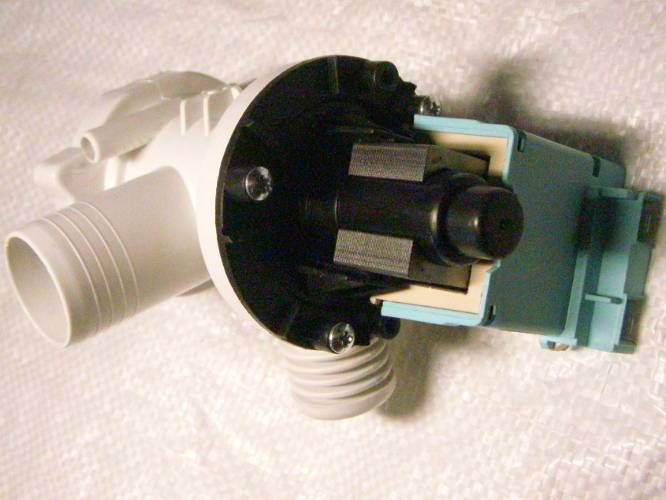

Ariston Indesit washing machine Mainox Drain Pump BPX2-35 with volute

Mainox Drain Pump (BPX2-35) 30w with two separate connection pins, assembled with volute, for repair Indesit Ariston washing machine.

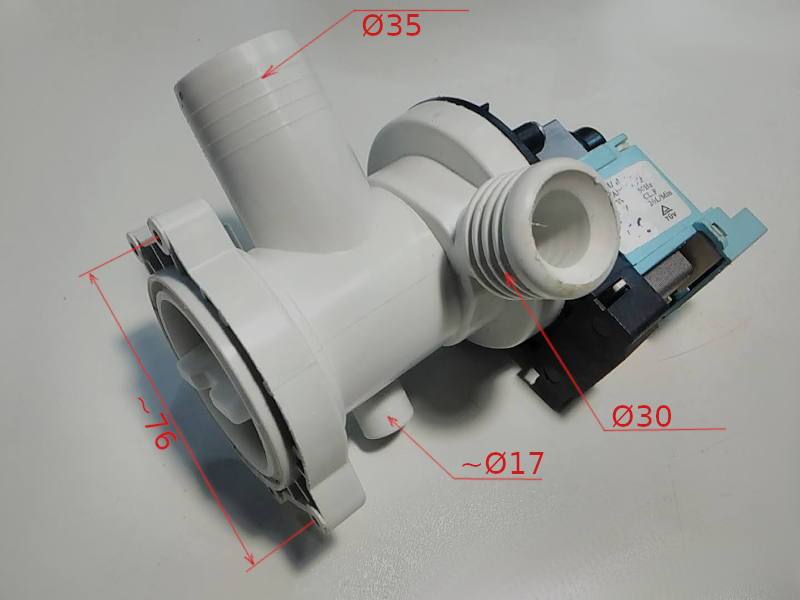

Inlet diameter: 35 mm.

• Output diameter: 30.5 mm.
• Diameter of the overflow pipe: 10 mm.
• Coil: Mainox, 30W.
• Distance between mounting holes (near filter cover): 33 x 76.5 mm

Replacement and analog codes: Indesit C00085617, Indesit C00050334, Indesit 482000027683.

Compatibility list

Ariston Indesit AB103MTK (46283330000) AB66IT (46281190030) AB103TK (46271130000) AB83TK (46225030000) AB104IT (46279130000) AB83TK (46225030001) AB104IT (46279130030) AB84IT (46279140000) AB105TK (46283320000) AB84IT (46279140030) AB107PT (46270940000) AB84PT (46224840000) AB107PT (46270940030) AB84PT (46224840001) AB43IT (46224670000) AB84PT (46224840030) AB43PT (46224890000) AB86FR (46224920000) AB43SP (46238990100) AB86FR (46224920001) AB43SP (46238990130) AB95AUS (46238790000) AB52PT (46275540000) AB95AUS (46238790001) AB52PT (46275540030) AB95AUS (46238790030) AB53AG (46270880000) AB95EU (46237810000) AB53AG (46270880030) AB95EU (46237810101) AB53EO (46237800000) AB95EU (46237810130) AB53EO (46237800030) AB95TK (46283310000) AB53IT (46224600000) AL102PFR (46272990000) AB56FR (46227400000) AL102PFR (46272990040) AB60IT (46269710000) AL109AUS (46238780000) AB60IT (46269710030) AL109AUS (46238780001) AB63AG (46238910100) AL109EU (46288770000) AB63IT (46224550000) AL109EU (46288770030) AB63IT (46224550030) AL10UK (46235900000) AB63SP (46239000000) AL10UK (46235900100) AB63SP (46239000100) AL10UK (46235900101) AB63SP (46239000130) AL65PT (46270930000) AB63TK (46225020000) AL65PT (46270930030) AB63TK (46225020100) AL68EU (46288750000) AB64AG (46243650000) AL88EU (46288760000) AB64PT (46224860000) AL88EU (46288760030) AB64PT (46224860030) AL9UK (46235890000) AB66FR (46224900000) AL9UK (46235890100) AB66FR (46224900030) AL9UK (46235890101) AB66IT (46281190000) W63SP (46233160130) L548IT (46245030000) W63X(IT) (46255440000) L648IT (46245040000) W642TX(EX) (46255480000) LNA1000FR (46293780000) W64IT (46244130000) LNA1000FR (46293780040) W64IT (46244130030) LNA800FR (46256190000) W6521E (46253780100) LNA800FR (46256190001) W6521E (46253780130) LNA850FR (46268480000) W6EX (46247700000) LNA855FR (46276950000) W73FR (46233290000) LNA856FR (46283200000) W73FR (46233290001) W101EX (46295410000) W81EX (46295400000) W101EX (46295410030) W81EX (46295400030) W101EX (46295410046) W83DE (46248330000) W101UK (46286260000) W83DE (46248330001) W101UK (46286260040) W83DE (46248330030) W103NL (46246000000) W83FR (46286740000) W103NL (46246000001) W83FR (46286740040) W103NL (46246000030) W83NL (46245990000) W103UK (46233340100) W83NL (46245990001) W103UK (46233340101) W83SP (46233170000) W103UK (46233340130) W83SP (46233170001) W104DE (46248340000) W83SP (46233170030) W104DE (46248340001) W83TAUS (46258860000) W104DE (46248340030) W83TAUS (46258860030) W104FR (46233400100) W83TEX (46233100100) W104FR (46233400101) W83TEX (46233100201) W104NL (46233860100) W83TEX (46233100301) W104NL (46233860101) W83TEX (46233100401) W104NL (46233860130) W83TEX (46233100430) W104SP (46244150000) W83UK (46233020100) W104SP (46244150001) W83UK (46233020101) W104SP (46244150030) W84FR (46233130100) W104TBE (46254740000) W84FR (46233130101) W104TBE (46254740001) W84TTK (46283830000) W104TBE (46254740030) W84TTK (46283830030) W104TCH (46281930000) W84TXEXTE (46264910000) W104TCH (46281930030) W857PT (46234070100) W104TEX (46233320100) W857PT (46234070101) W104TEX (46233320101) W85FR (46276990000) W104TEX (46233320130) W85FR (46276990040) W104TTK (46284000000) W93TEX (46233080100) W104TTK (46284000030) W93TEX (46233080200) W105FR (46277000000) W93TEX (46233080201) W105FR (46277000040) W93TEX (46233080301) W105NL (46246010000) W93TEX (46233080501) W105NL (46246010001) W93TEX (46233080530) W107FR (46286760000) W93UK (46233300100) W107FR (46286760040) W93UK (46233300101) W113UK (46233350100) W93UK (46233300130) W113UK (46233350101) W93UK (46233300140) W113UK (46233350140) W94FR (46233430100) W115FR (46246140000) W94FR (46233430101) W41SP (46275050000) W9521E (46253790101) W41SP (46275050030) W9521E (46253790130) W432PT (46233180100) W95FR (46286750000) W432SIT (46248060100) WA105UK (46280160000) W432SIT (46248060130) WA105UK (46280160040) W435PT (46233190000) WA10IT (46268800000) W43IT (46232990100) WA10IT (46268800030) W43IT (46232990130) WA10PT (46276410000) W43SP (46275060000) WA10PT (46276410030) W43SP (46275060030) WA115UK (46280170000) W43X(IT) (46255460000) WA6IT (46268780000) W44IT (46232940100) WA6IT (46268780030) W44IT (46232940130) WA6PT (46276390000) W44XIT (46255470000) WA6PT (46276390030) W4521E (46253770100) WA8IT (46268790000) W4521E (46253770130) WA8IT (46268790030) W51SP (46275070000) WA8PT (46276400000) W51SP (46275070030) WA8PT (46276400030) W524PT (46246260000) WAP61EX (46283820000) W535PT (46233850100) WAP61EX (46283820030) W535PT (46233850130) WE109FR (46273000000) W53FR (46254710000) WE10EX (46276480000) W53FR (46254710030) WE10EX (46276480030) W53IT (46233000100) WE10IT.1 (46283060000) W53IT (46233000130) WE10IT.1 (46283060030) W53SP (46233380100) WE8EX (46276470000) W53SP (46233380130) WE8EX (46276470030) W543GIT (46256880000) WE8IT.1 (46283050000) W61EX (46295390000) WE8IT.1 (46283050030) W61EX (46295390030) WG426TPIT (46232970100) W630FR (46246130000) WG833TPIT (46248170000) W630FR (46246130030) WP100EX (46277610000) W634PT (46246270000) WP100EX (46277610030) W634PT (46246270030) WP67EX (46277570000) W63FR (46233410100) WP67EX (46277570030) W63IT (46232950000) WP80EX (46295490000) W63IT (46232950030) W63SP (46233160100)
