Description

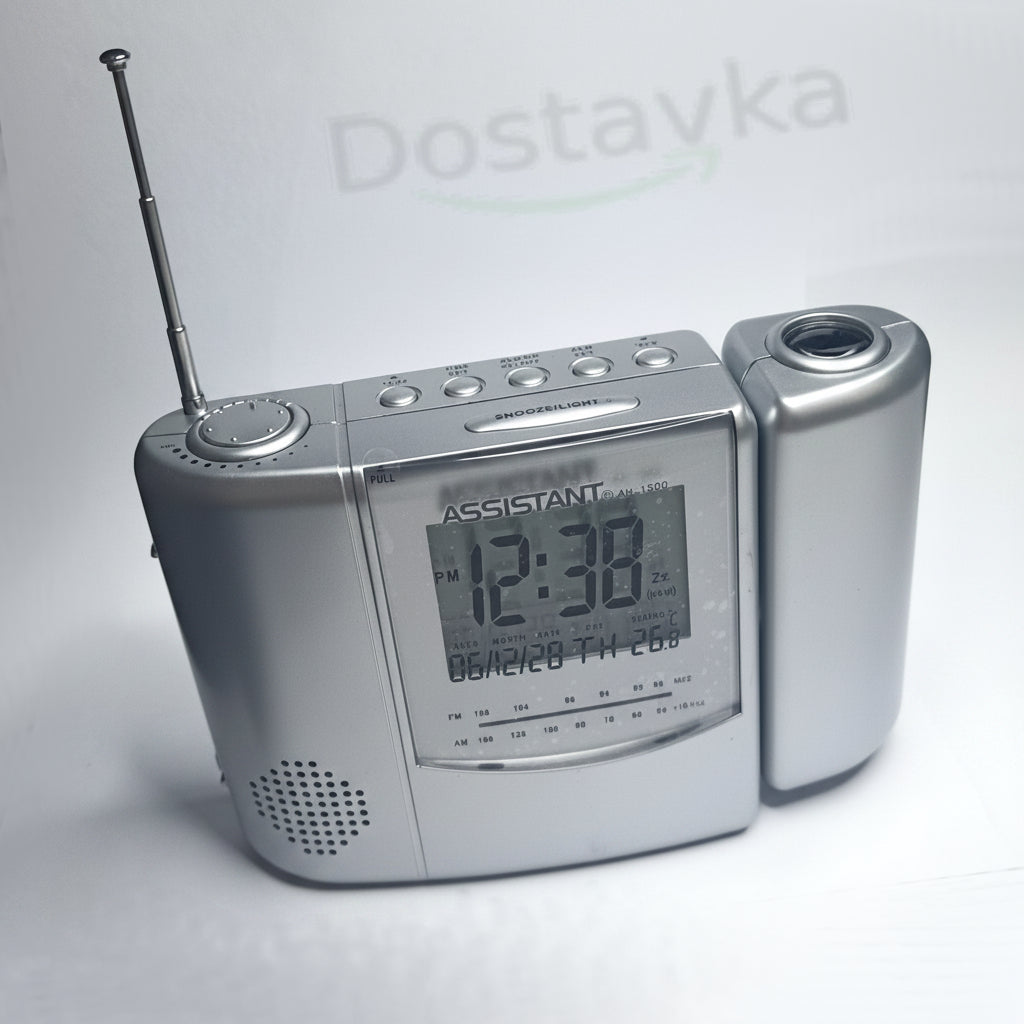

Multifunctional Assistant AH-1500 Projection Clock with Radio, Thermometer, and Alarm
The Assistant AH-1500 multifunctional electronic clock is an advanced desktop device that combines the functions of a time projector, a dual-band radio, a digital thermometer, and a highly customizable alarm. The model features a rotating projection unit, allowing the time to be projected in a blue light beam onto any flat surface (wall or ceiling). The device is an excellent solution for a bedroom or desk, providing convenient time monitoring at any time of day.
Key Advantages and Features:
- Time Projector with Focus: A blue light beam displays the current time on the wall or ceiling. The design allows you to change the projector's tilt angle and precisely adjust image sharpness using the focus control.
- Built-in AM/FM Radio: Supports FM stations (87.5–108 MHz) and AM stations (540–1600 kHz). Equipped with manual frequency tuning and volume control.
- Informative LCD Display: Displays the year, month, date, time (hours and minutes), day of the week (calculated automatically), and current temperature. Supports 12-hour and 24-hour time formats.
- Advanced Alarm: Allows you to set a daily alarm or specify a particular date and month. Supports the Snooze function (repeats after 5 minutes) and selectable alarm signals.
- Digital Thermometer: Temperature measurement range from -5 °C to +50 °C (23 °F – 122 °F) with the ability to quickly switch scales (°C / °F).
- Combined Power Supply: Operates on batteries (for settings retention) or an external AC power adapter. A RESET button is provided on the bottom panel in case of malfunctions.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Brand and Model | Assistant AH-1500 |
| Display Type | Liquid Crystal Display (LCD) with soft backlight |
| Projection Color and Functions | Blue light beam, angle adjustment, manual focus (FOCUS) |
| Recommended Projection Distance | Up to 2 meters |
| Radio Bands | FM: 87.5 MHz – 108 MHz / AM: 540 kHz – 1600 kHz |
| Temperature Measurement Range | from -5 °C to +50 °C (from 23 °F to 122 °F) |
| Calendar Setting Range | from 2000 to 2069 |
| Battery Power | 3 x AAA (1.5V) batteries + 2 x LR44 / G13 (1.5V) batteries |
| External Power Source (Adapter) | DC 4.5 V, current > 150 mA (DC jack on the back cover) |
Controls and Operating Modes:
-
Projector [PROJECTION]: Set the switch to the
ONposition and press theSNOOZE/LIGHTbutton to activate the projection. To adjust clarity, turn theFOCUS Latest updates
