Description

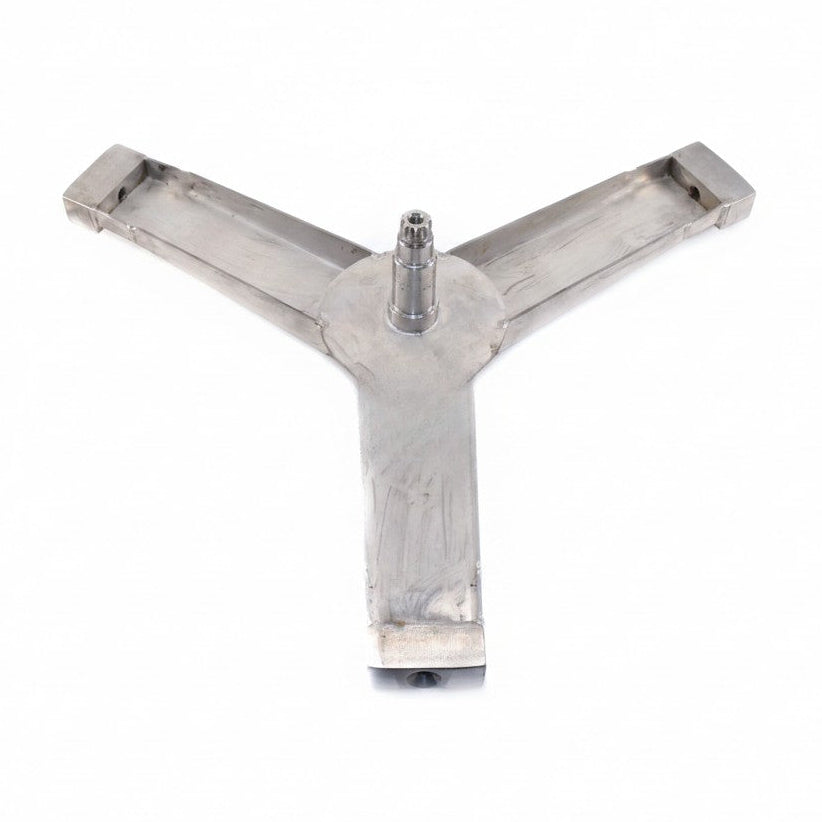

The drum spider for Atlant washing machines is a stainless steel part with three equidistant arms that ensures drum rotation. This product is a high-quality equivalent to the original spare part with code 730136200400.
Signs of failure include unusual noises (knocking, grinding) during operation, often associated with bearing wear. Timely replacement of the part prevents damage to other units of the machine. Main causes of failure: metal corrosion, leaks onto the bushing, or long-term operation.
- Distance between the shaft center and the drum mount: 235 mm;
- Shaft height: 79 mm;
- Mounting type: M8 bolt;
- Distance from the bushing to the outer bearing: 37 mm;
- Distance from the outer bearing seat to the end of the shaft: 26 mm;
- Shaft diameter: 25 mm;
- Oil seal bushing diameter: 30 mm;
- Outer bearing seat diameter: 20 mm;
- Pulley seat: 17 mm spline;
- Material: stainless steel;
- Bushing height: 12 mm;
- Atlant part number: 730136200400;
