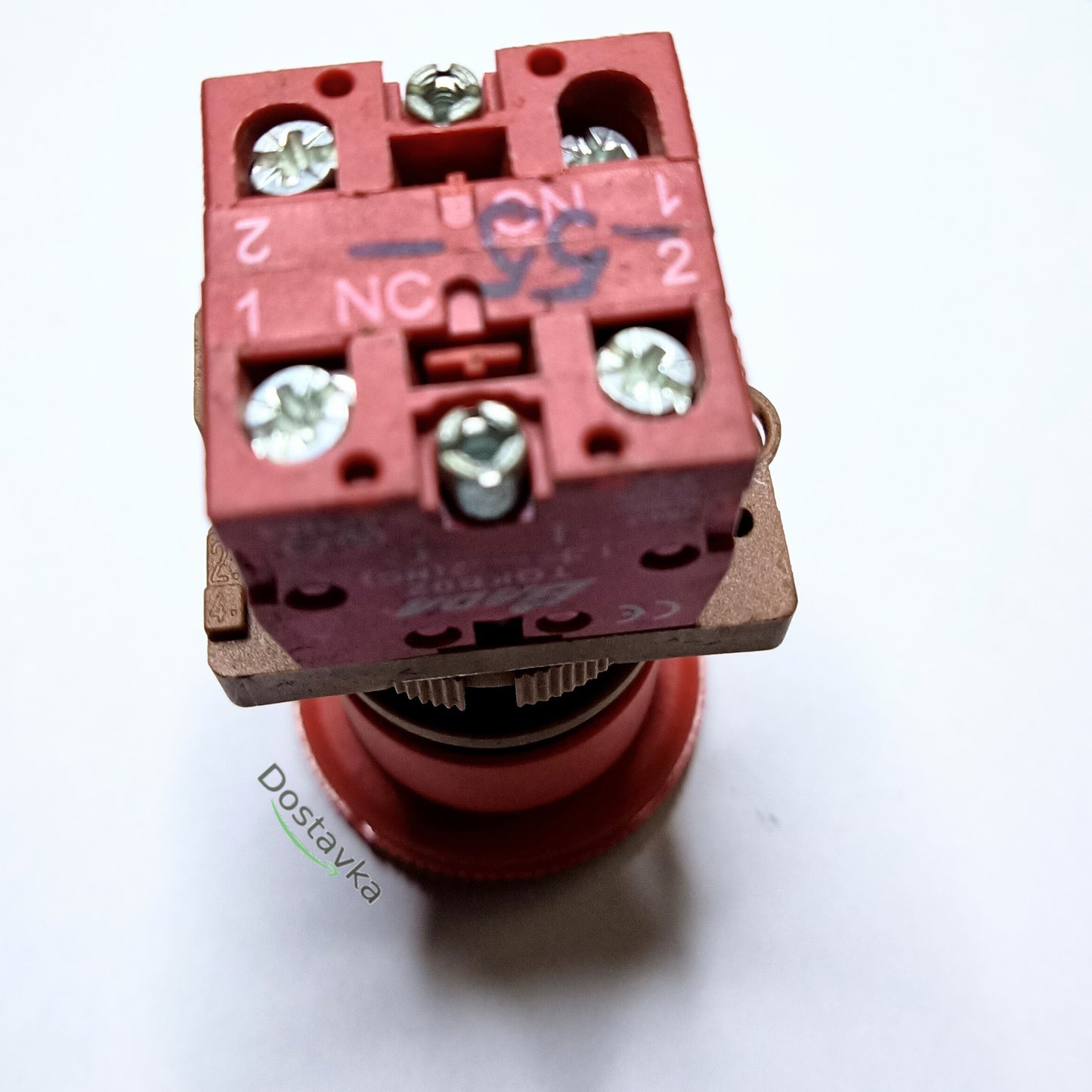

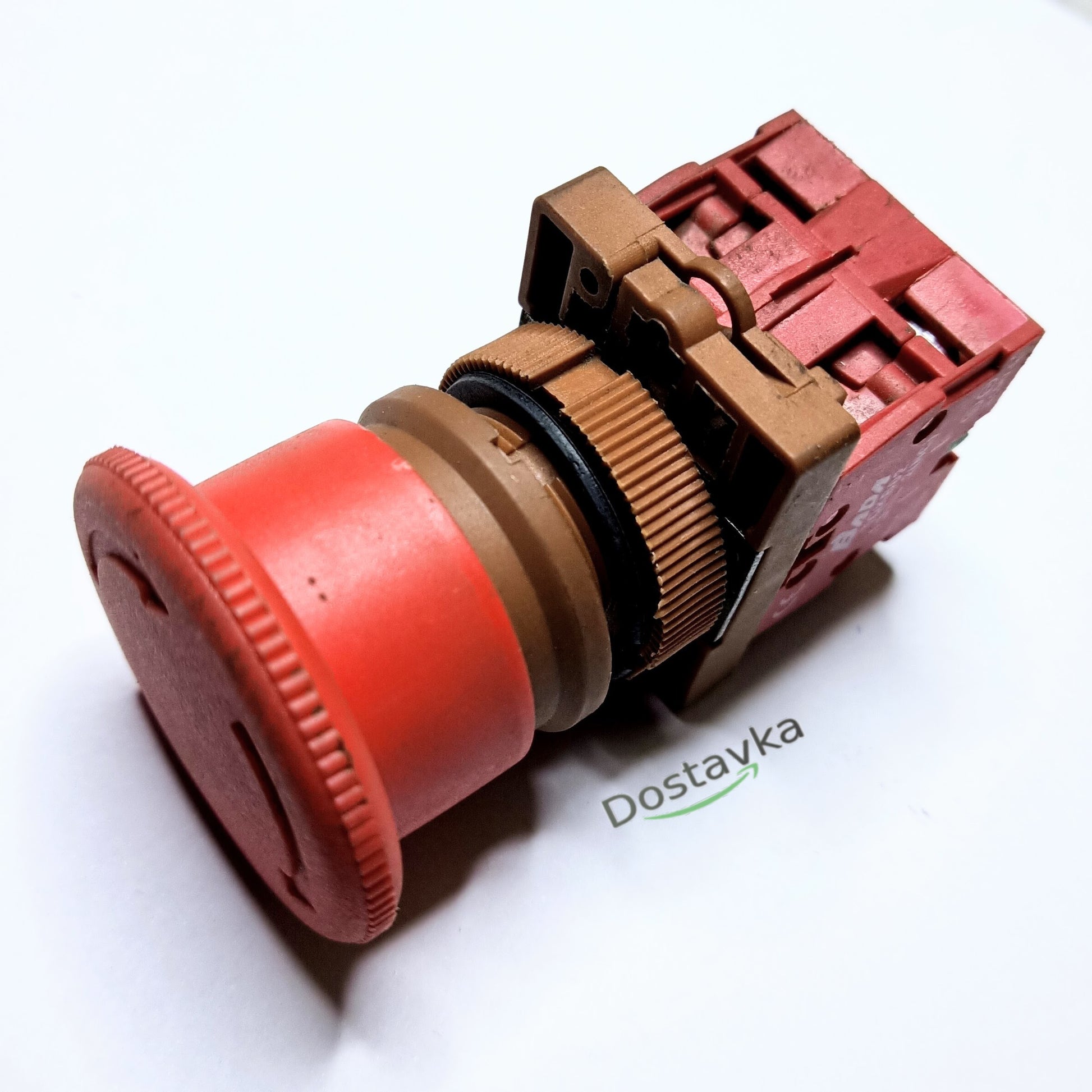

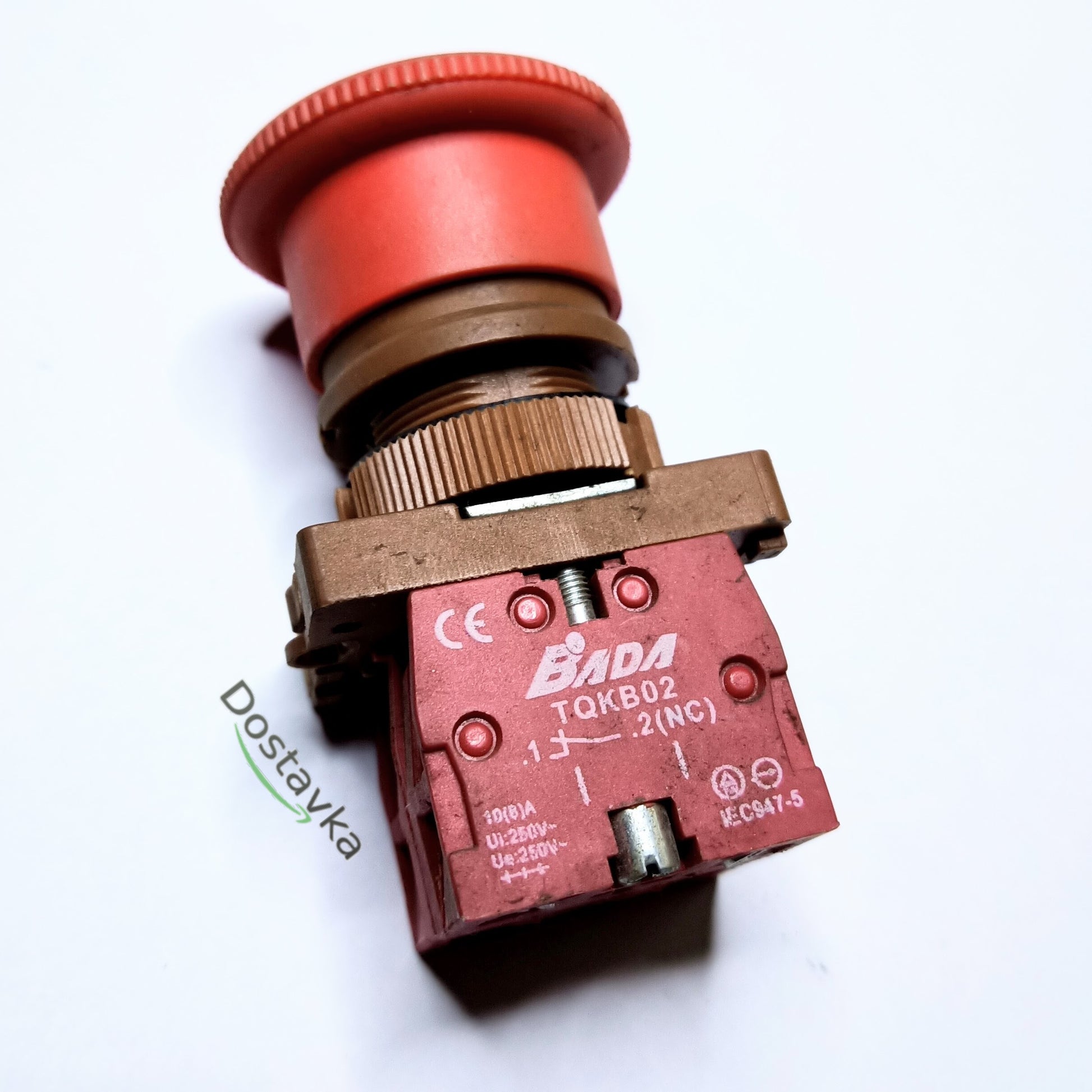

BADA TQKB02 (Schneider) mushroom-shaped emergency STOP button with locking mechanism

BADA TQKB02 Emergency STOP Button with Double Locking Mushroom for a hoist (winch)

8 A (A) 250 V (V) AC-15 IEC947-5

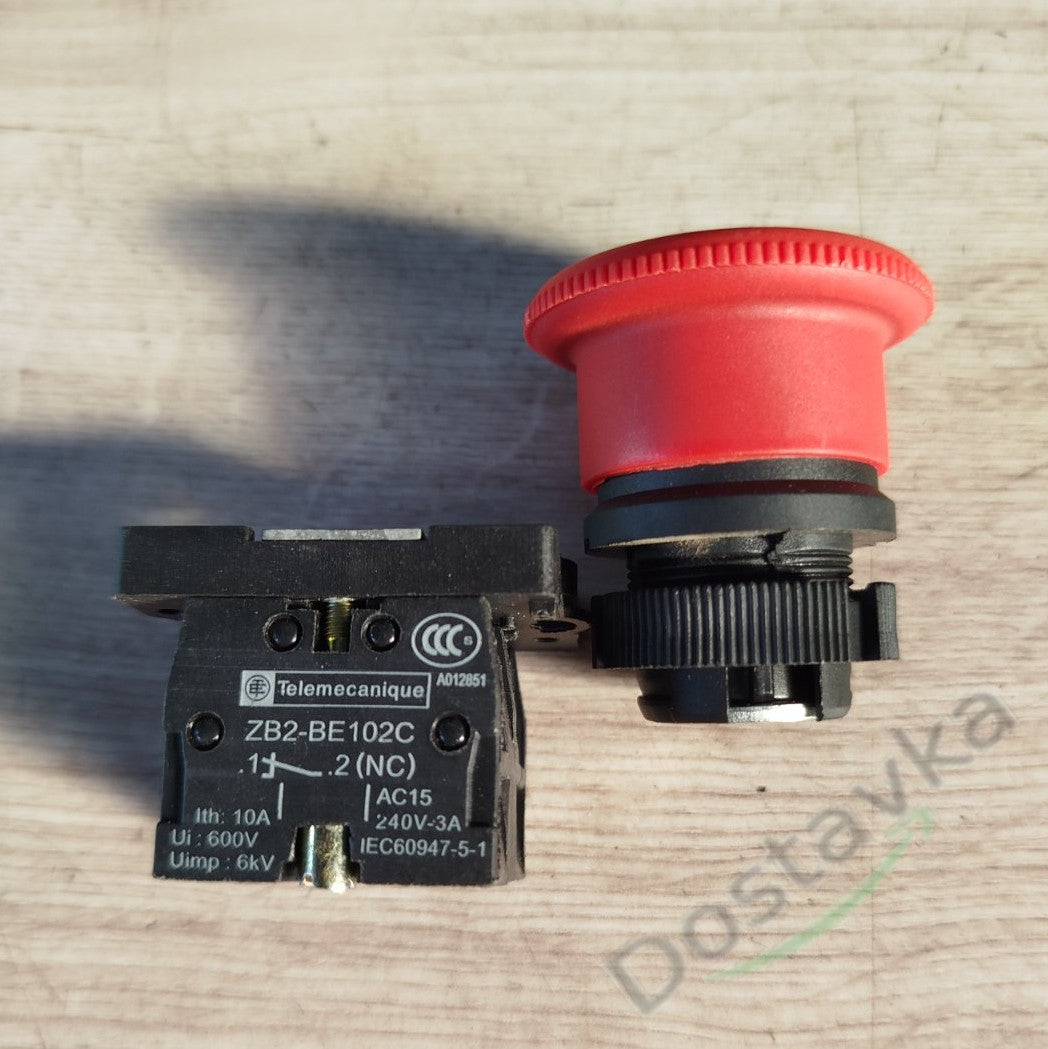

Analogue of XB2-BS542 STOP button with latching, mushroom cap with latching, (Schneider ZB2-BE102C) normally closed contact
Red rotary pushbutton "Mushroom"
Nominal voltage: 660 volts AC
Rated current: 10 Amps
Protection class: IP40
Mounting diameter: 22 mm (button 22 mm)
Dimensions: 74x40x40 mm
Operating temperature range: -10...+40C

AC-15:

- 3 Amperes at 240 Volts according to EN/IEC 60947-5-1
- 6 Amps at 120 Volts according to EN/IEC 60947-5-1
- 1.2 Amperes at 600 Volts according to EN/IEC 60947-5-1
