Description

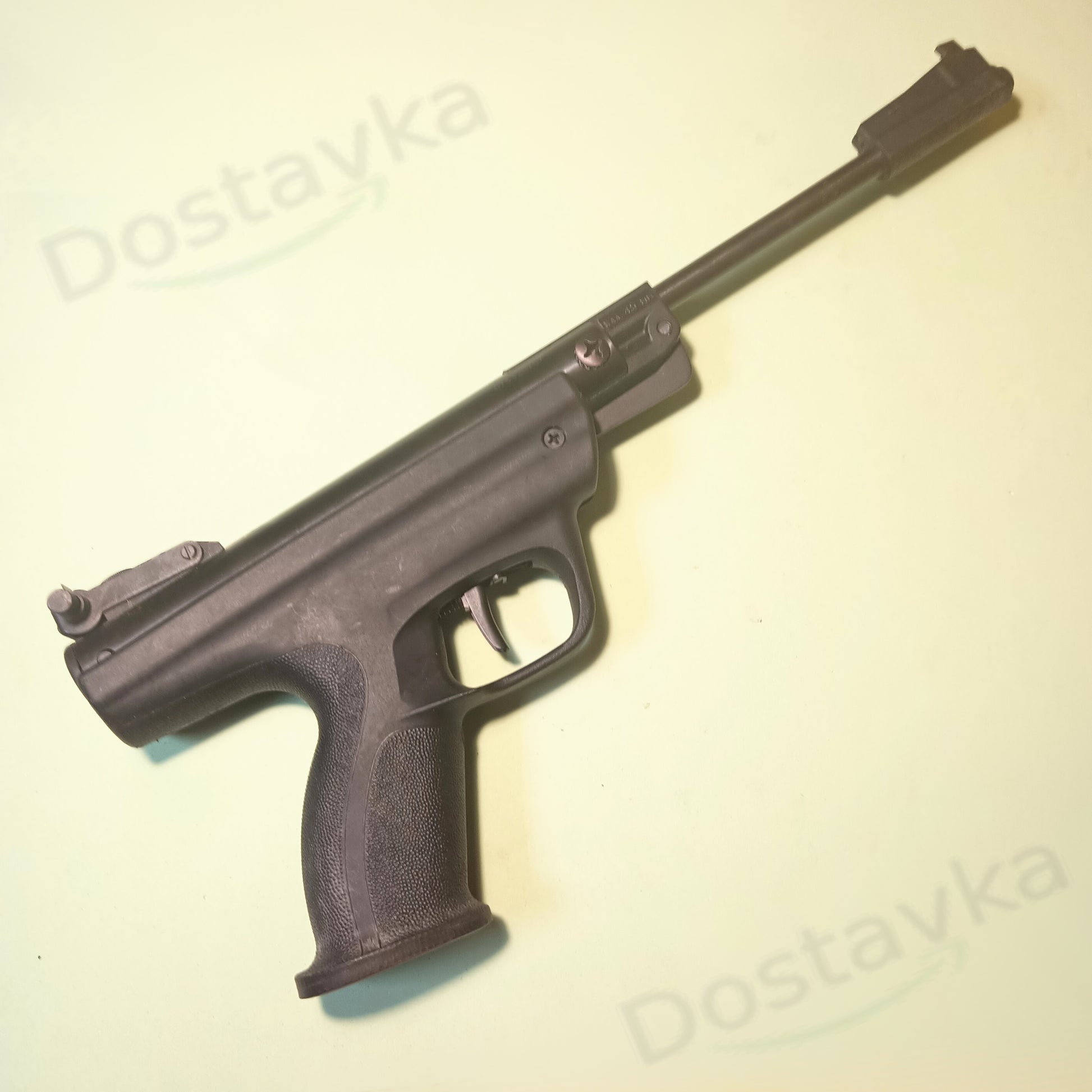

Air Pistol IZH-53M / Baikal (4.5 mm caliber, break-barrel type)
This is a classic spring-piston model designed for training and recreational shooting with 4.5 mm caliber lead pellets. Cocking is performed by breaking the barrel in a vertical plane. The model features high reliability, ease of maintenance, an adjustable sighting device, and an ergonomic plastic grip.
Main Advantages and Features:
- Classic spring-piston system: Cocking is done by breaking the barrel, ensuring independence from CO2 cartridges.
- Adjustable sight: The rear sight is adjustable horizontally and vertically for precise zeroing at distance.
- Trigger adjustment: The trigger mechanism design allows for adjusting the trigger pull length.
- Ergonomic body: Durable plastic grip with a textured surface provides a comfortable and secure hold.
- Reliability and maintainability: A simple and time-tested design from the Izhevsk Mechanical Plant.
Technical Specifications:
| Parameter | Value / Characteristic |
|---|---|
| Model | IZH-53M (Baikal) |
| Manufacturer | FSUE "Izhevsk Mechanical Plant" |
| Caliber | 4.5 mm (.177) |
| Cocking type / Energy source | Spring-piston (break-barrel) |
| Ammunition type | 4.5 mm lead pellets (types "DC", "DCM", etc.) |
| Barrel length | not more than 215 mm |
| Overall dimensions | 407 x 175 x 50 mm |
| Weight | not more than 1.2 kg |
| Trigger pull | 5ā15 N (0.5ā1.5 kgf) |
| Operating temperature range | from -1Ā°C to +50Ā°C |
Package Contents:
- Air pistol IZH-53M ā 1 pc.
- Cleaning rod for the barrel.
- Product passport / user manual.
- Packaging box.
Maintenance tip: To maintain accuracy and extend the life of the seal, clean the barrel bore every 500ā1000 shots, and lubricate the trigger mechanism and barrel locking unit parts every 1500ā2000 shots with gun oil.
