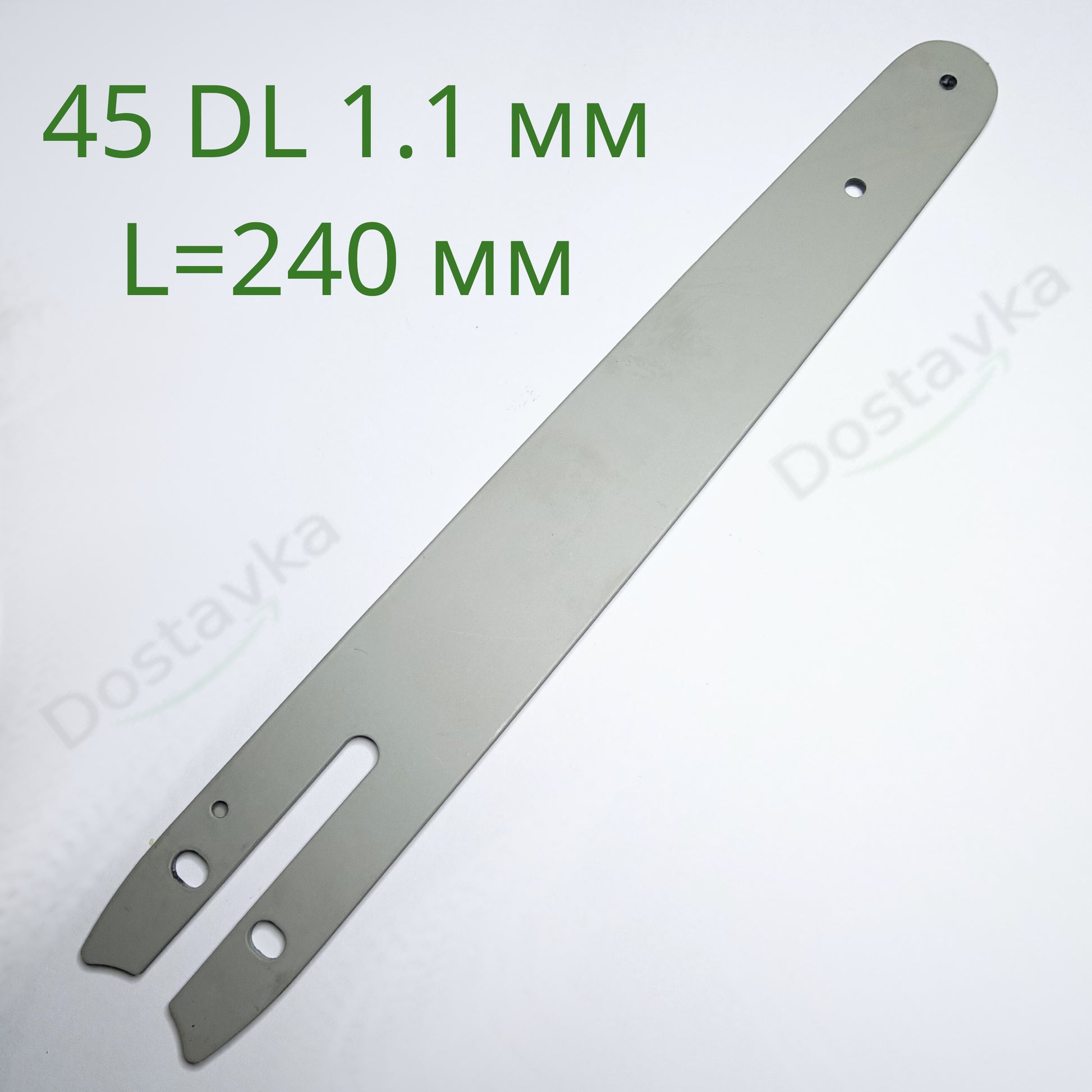

Guide bar for cordless mini saw and pruner 240 mm (45 DL, 1.1 mm)
Compact guide bar with a working cutting length of 240 mm. Designed for use with cordless mini saws, pruners, and reciprocating saw attachments. Provides a precise and clean cut with minimal load on the tool's electric motor due to the narrow groove.
Technical Specifications
| Part type: | Guide bar |
| Application: | Cordless mini saws, chain pruners |
| Working length (h): | 240 mm (effective cutting length) |
| Total bar length: | ~300–305 mm (12") |
| Number of drive links (DL): | 45 drive links (22–23 cutting teeth) |
| Groove width: | 1.1 mm (.043") |
| Chain pitch: | 1/4" / 3/8" Mini Picco (depends on the drive sprocket/cutting equipment) |
| Construction: | Solid steel, with a sprocket nose |
Compatibility
Suitable for most cordless pruners and mini saws of Chinese and European manufacture (Grand, Kraissmann, Vorskla, Dnipro-M, Makita, Milwaukee, Parkside, Procraft, Pro-Craft, Vitals, Tekhmann, AL-KO, Einhell, Vityaz, Supretto, Mustang, Kraissmann, Leader, Revolt, Dewalt, Konsun, Worcraft, Stark, Zenit, Elprom, Vorskla) using cutting equipment for 45 links with a 1.1 mm groove.
Recommended Chain

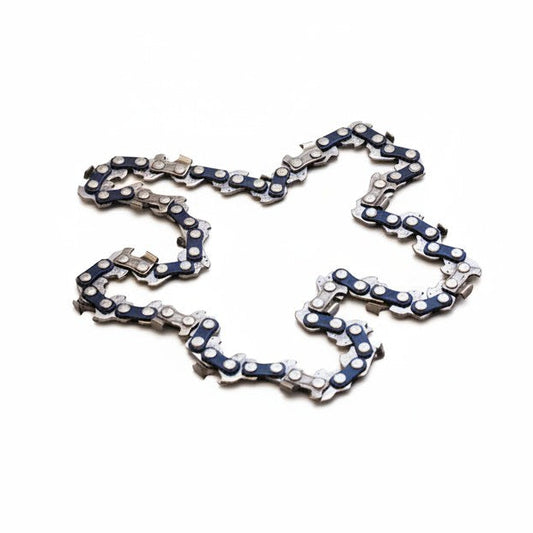

- Chain for cordless mini saw: 1.1 mm (.043") / 45 DL (45 drive links / 23 teeth).
