Bauknecht Ignis Whirlpool washing machine drum support 481010572648 (stainless steel)

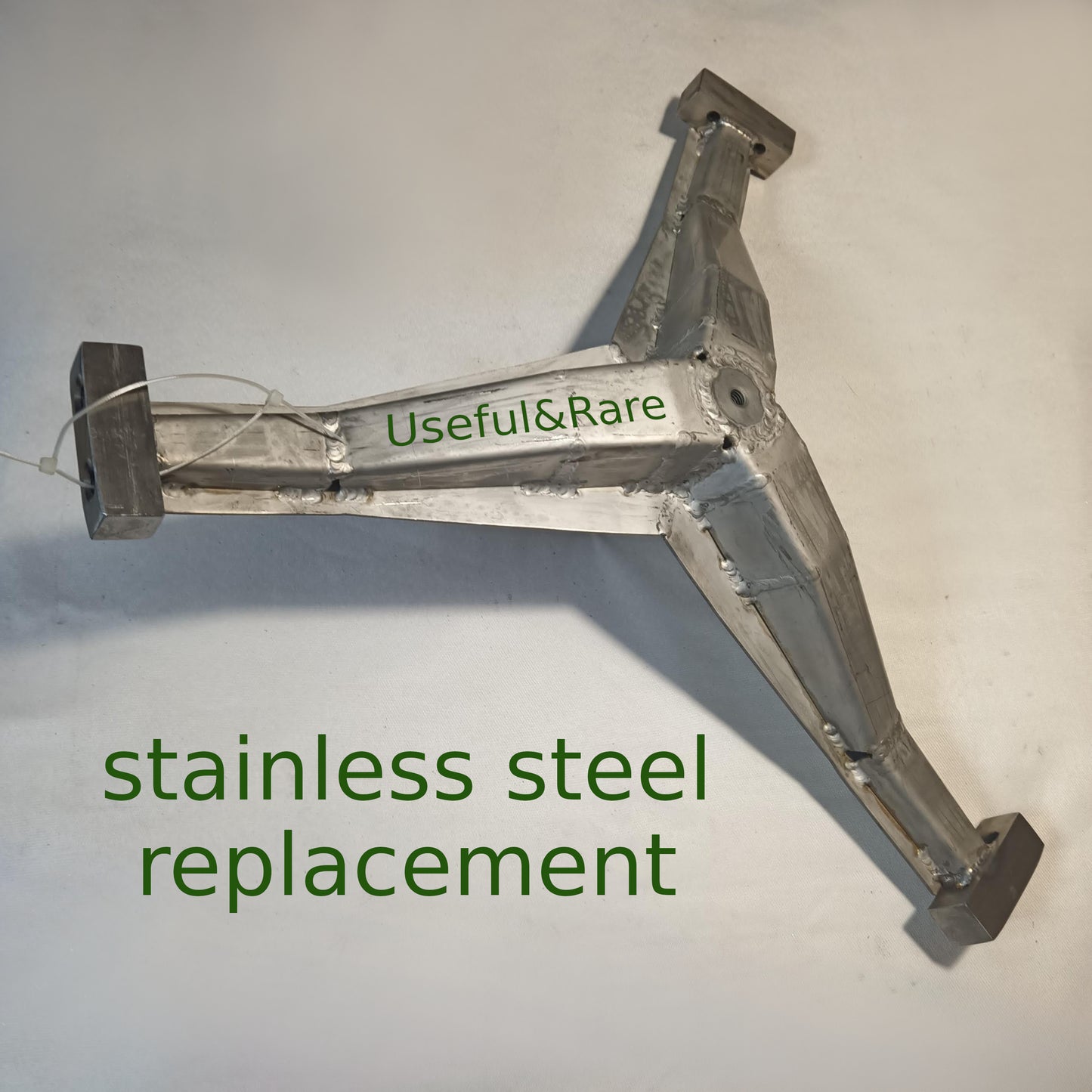

Stainless steel drum support spider 481010572648 for rebuild Bauknecht Ignis Whirlpool washing machine.

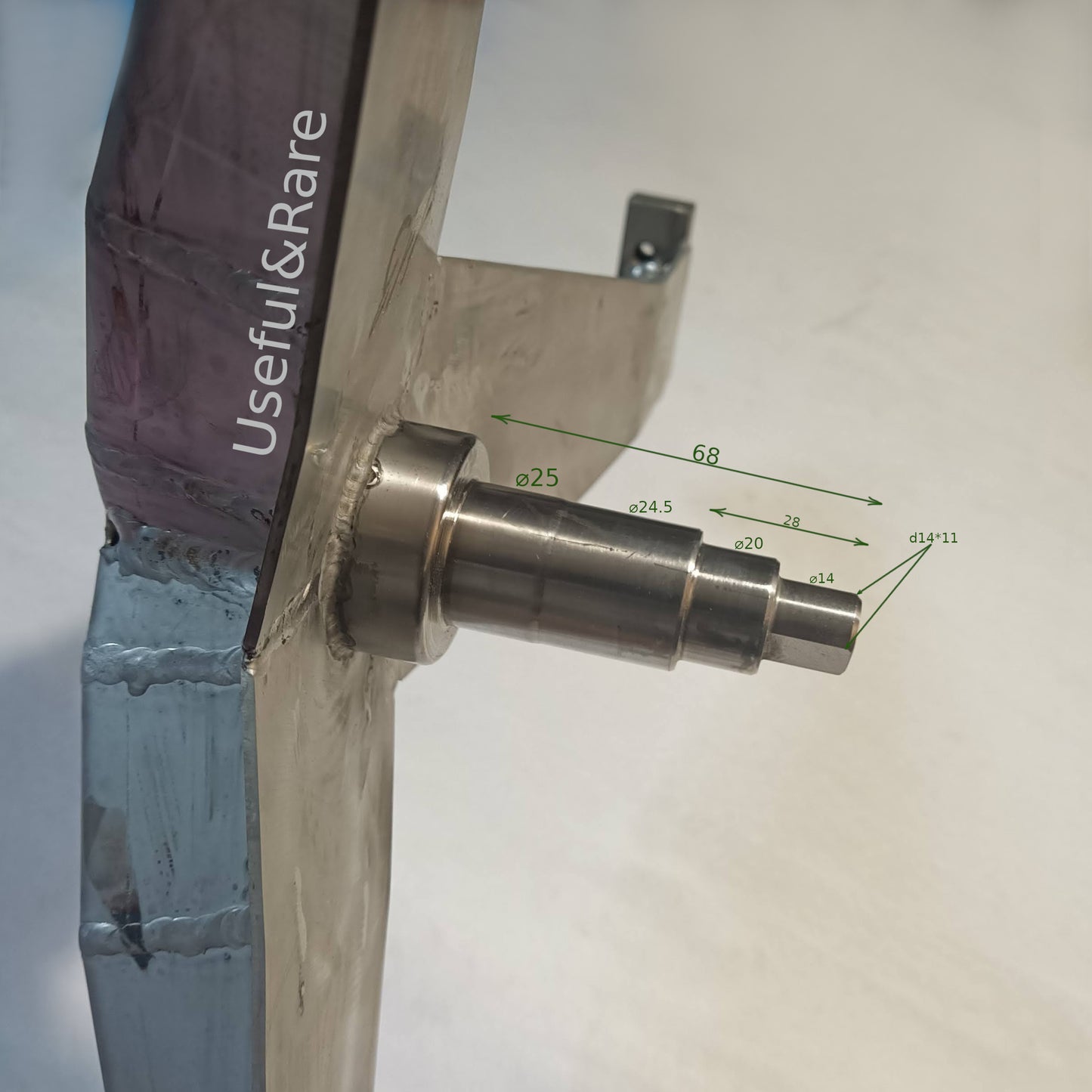

• Mounting height of external bearing 13.5 mm
• The distance from the shaft axis to the mounting axis with the drum is 235.5 mm
• Shaft length 86 mm
• Mounting type M8, flush-mounted
• Extend the bushing to the outer bearing 39.5 mm
• Diameter of the bushing for the oil seal is 40 mm
• Diameter of the outer bearing is 20 mm
• Bearings (6205, 6204) Pulley seat height 14 mm
• Diameter of the inner bearing is 25 mm
• Diameter of the seat ring for the oil seal is 40 mm
• Pulley seat diameter 14 mm
• Groove width for pulleys 11 mm

Compatibility list

Bauknecht IGSM 6000 858010338000 Bauknecht WCMC 64523 858399910000 Bauknecht IGSM 6000 858010338004 Bauknecht AWSB 63213 858335084003 Bauknecht WAK 6145 858300101000 Ignis PFLS 61002P 858410849004 Ignis PFLS 51201P 858410949000 Ignis PFLS 61032P 858410649000 Ignis PFLS 61002P 858410849000 Ignis PFLS 51231P 858410749000 Whirlpool AWS 61012 859236710100 Whirlpool AWS 61211 859237084000 Whirlpool AWS 63013 859234910100 Whirlpool AWS 61011 859236984000 Whirlpool AWS 51011 859235210100
