Description

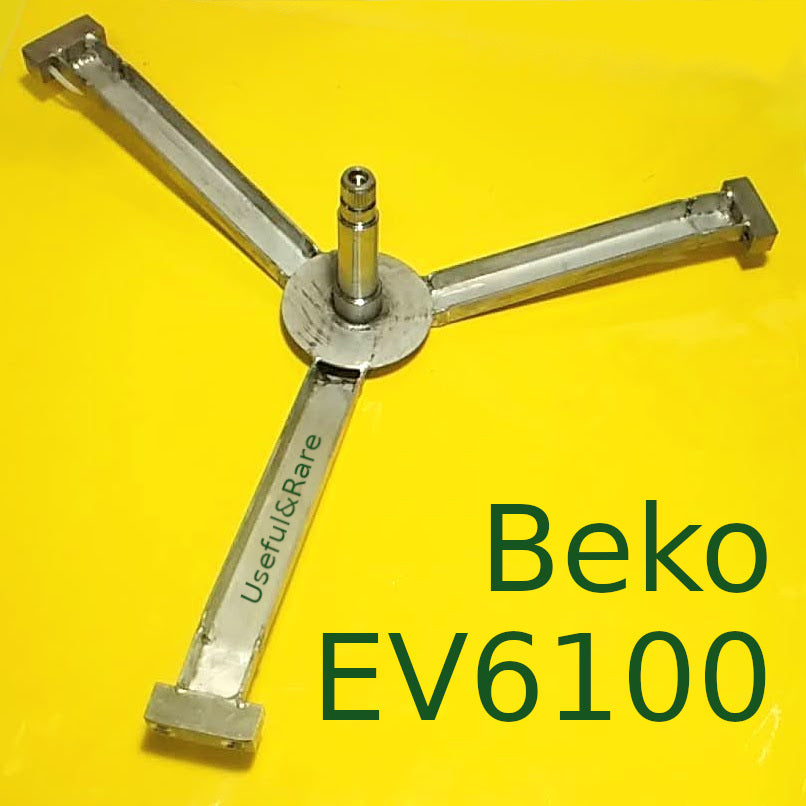

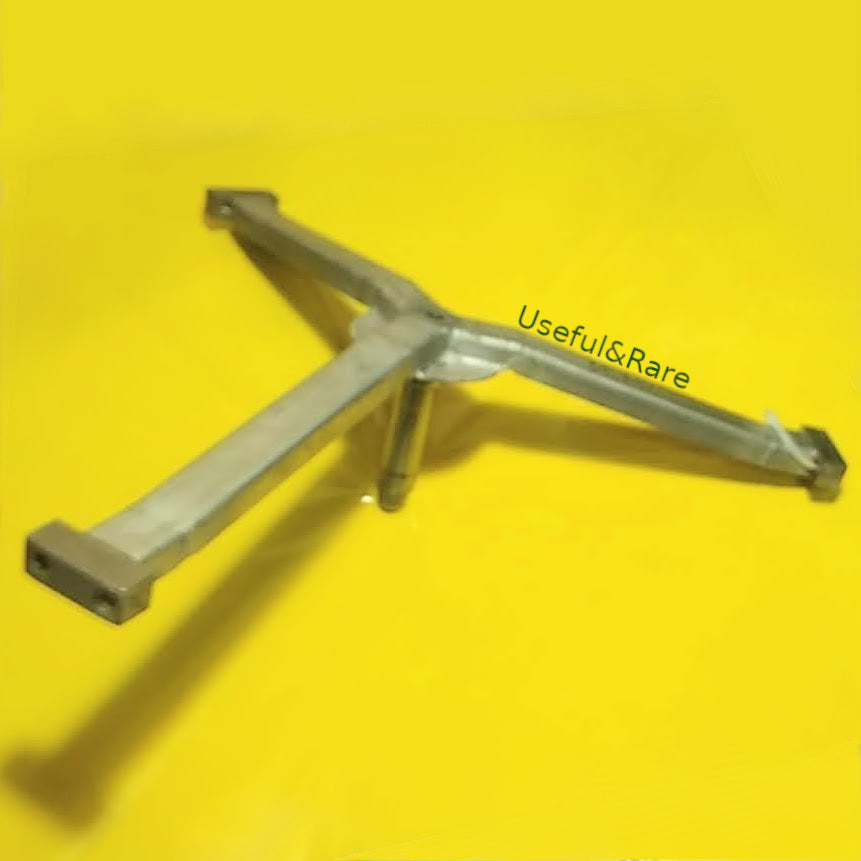

Washing machine Drum support spider for replacement in Beko-EV6100, WS1202400E/04 FD 9302 400245 873020358825002452, made of stainless steel
Parameters:
| The landing height of the external bearing | 12 mm |
| Inner bearing diameter | 20 mm (204) |
| Outer bearing diameter | 17 mm (203) |
| The distance from the axis of the shaft to the axis of the attachment with the drum | 239 mm |
| Shaft length | 98 mm |
| The diameter of the sleeve for the stuffing box | 25 mm |
| Pulley mounting type | M8 |
| Attachment to the drum | M6 6 pcs |
| The height of the landing of the pulley | 13 mm |
| Compatible with equipment | backhoe |
| The height of the sleeve under the oil seal | 18.5mm |
| The width of the groove under the pulley | slot |
