Description
Retaining ring for bicycle mechanisms and agricultural machinery for 35-36 mm shaft, 33 mm internal

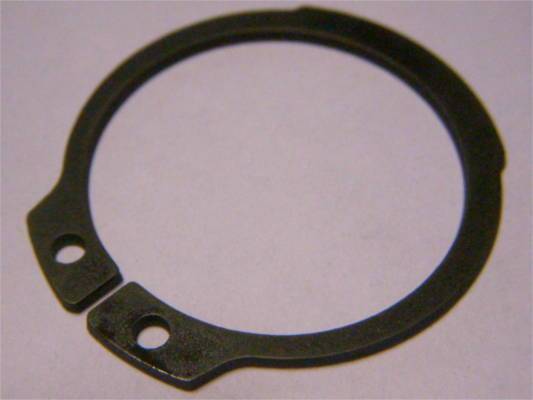

Bicycle rear sprocket retaining ring (d33–35 mm, for three-spline fit)
Spring retaining ring for the rear sprocket (diameter 33–35 mm) for secure fixation of the driven sprocket on the driver (axle) of the rear hub of single-speed, road, and folding bicycles, as well as models with planetary hubs. The ring is installed in a special groove (recess) of the hub and holds the sprocket from longitudinal displacement and play under load.
Key Advantages and Features:
- Secure fixation: Spring steel provides high elasticity, ensuring the ring snaps tightly into the hub groove and does not come off due to vibrations.
- Anti-corrosion coating: Protected from moisture, dirt, and road reagents.
- Precise standard compliance: Perfectly fits the 33–35 mm groove diameter of classic coaster brake and planetary hubs.
- Easy installation: Easily installed and removed using a flathead screwdriver or a special snap ring plier.
Hub Compatibility:
- Road and single-speed hubs (Single Speed / Torpedo): Ukraina, Aist, Minsk, Desna, Salyut, KhVZ, PVZ, Velosteel, and their equivalents.
- Planetary hubs: Shimano Nexus (3, 7, 8 speeds), SRAM, Sturmey Archer.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Part type | Rear sprocket retaining ring (spring type) |
| Working groove/hub diameter | 33 – 35 mm |
| Purpose | Fixation of a three-spline sprocket (16T–22T) on the hub driver |
| Material | Hardened spring steel |
| Color / Coating | Black (bluing) / Galvanized |
Package Includes:
- Rear sprocket retaining ring d33–35 mm — 1 pc.
Installation tip: When replacing the rear sprocket, be sure to check the condition of the old retaining ring. If it has deformed or lost its elasticity during removal, it must be replaced with a new one to prevent the sprocket from slipping off during movement.
