Original Drive Shaft Blade (Disc Holder) for Bosch MUM5 Food Processor (00630760)

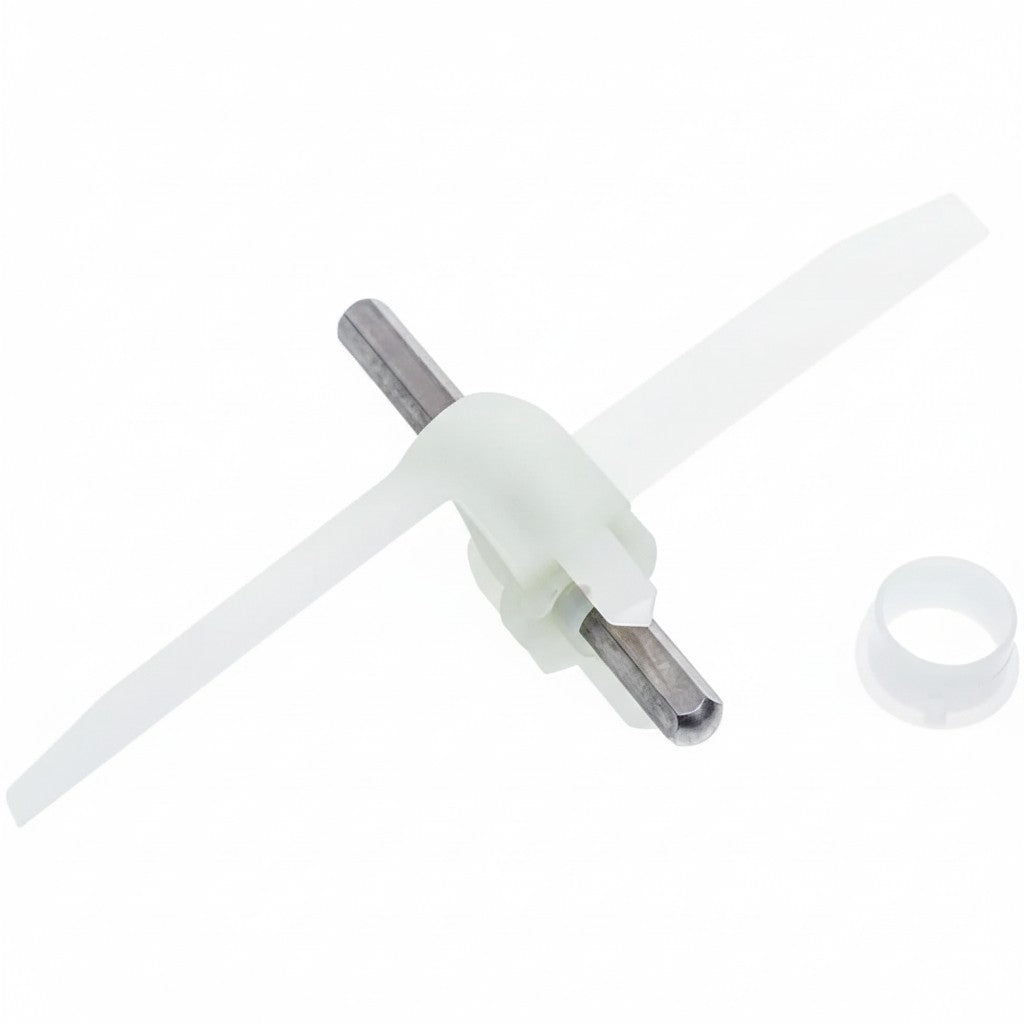

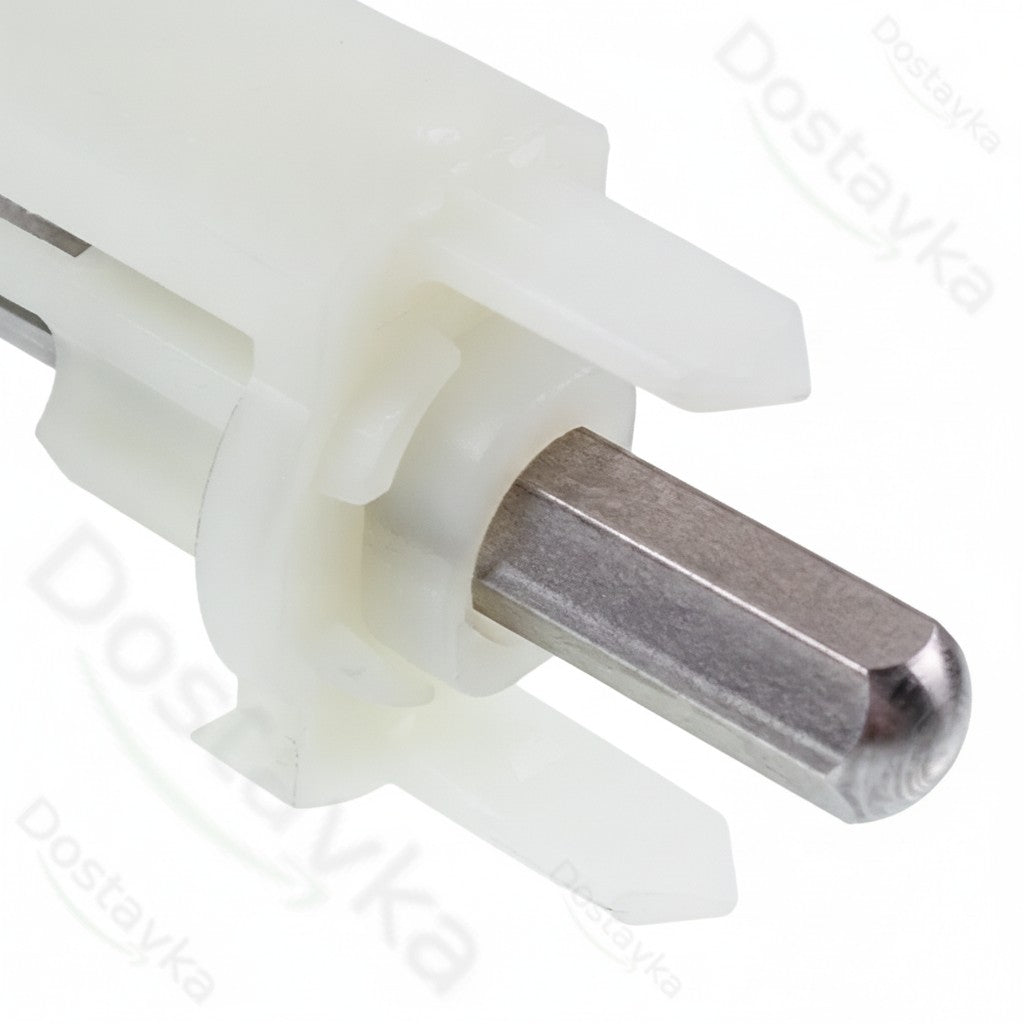

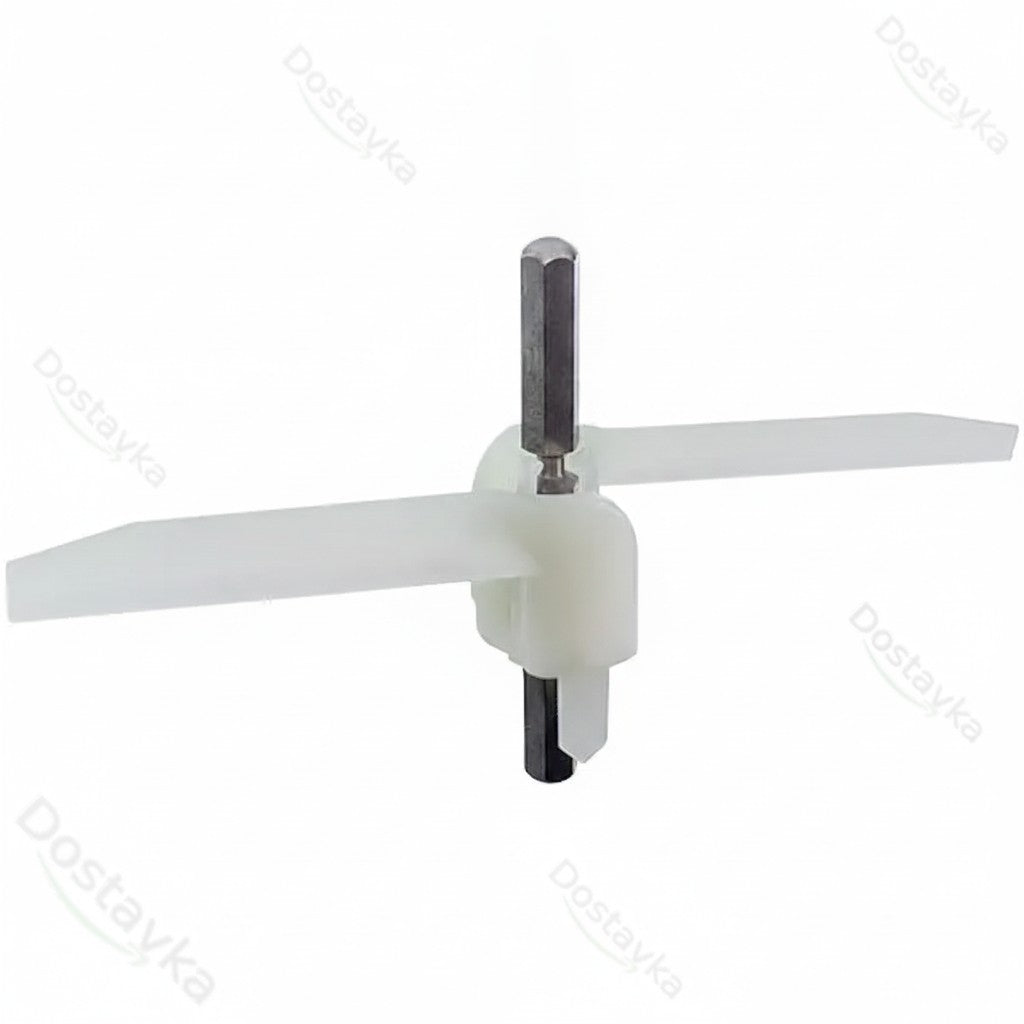

Original Bosch cutting disc spindle holder (part number 00630760) — this is a key drive element of the continuous feed shredder (grater attachment) for Bosch MUM4, MUM5, and MCM series food processors. The part is a plastic ejector blade with a metal core (shaft) that transmits rotation from the processor drive to the metal grating and shredding discs, while also helping to eject processed food into the bowl.
Key Advantages and Features:
- Original Bosch OEM Quality: Full compliance with the manufacturer's factory standards guarantees perfect fit geometry and reliable drive operation.
- Composite Construction: Made of high-density food-grade impact-resistant polymer with a pressed-in metal shaft, ensuring resistance to deformation and high mechanical loads when cutting hard foods.
- Drive Versatility: Suitable for use with most standard Bosch continuous feed shredder discs (for coarse and fine grating, shredding, julienne, and slicing).
- Ergonomics and Easy Maintenance: The blade shape allows for easy installation and removal for cleaning, and prevents food residue from accumulating under the disc.
Compatibility and Application:
- Bosch MUM4 series food processors: MUM44... MUM46... MUM47... MUM48... (MUM4405, MUM4486, MUM4655, MUM4756, MUM4855, MUM4880, etc.).
- Bosch MUM5 series food processors: MUM52... MUM54... MUM56... MUM57... MUM58... (MUM52120, MUM54240, MUM54251, MUM56340, MUM57860, MUM58252, etc.).
- Bosch MCM series food processors: MCM55... MCM6... (if part code 00630760 / 630760 matches).
- Shredder attachments (continuous feed shredder): MUZ4DS3, MUZ5DS1, MUZ4DS4, etc.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Part Type | Drive Shaft Blade (Drive Spindle / Disc Holder) |
| Part Number / Manufacturer Code | 00630760 (equivalent to 00606674, 630760) |
| Manufacturer | Bosch (Original) |
| Material | Wear-resistant food-grade plastic + metal |
| Color | White / Metal |
| Purpose | Fixing and rotating continuous feed shredder discs |
| Condition | New original part |
Package Includes:
- Bosch 00630760 continuous feed shredder drive shaft blade — 1 pc.
Pro Tip: To extend the life of the drive shaft blade, do not overload the food processor with excessively hard frozen foods or bones. Ensure the grating disc fits snugly into the blade slots without misalignment during assembly. After use, rinse the part with warm water without abrasive detergents; dishwasher safe at temperatures up to 60°C.
Compatible Models
Bosch MUM50131/06; MUM50149/03; MUM50149/04; MUM50149/06; MUM50E32DE/03; MUM50E32DE/04; MUM50E32DE/06; MUM51U10UC/01; MUM52110/01; MUM52110/02; MUM52110/03; MUM52120/01; MUM52120/02; MUM52120/03; MUM52120/04; MUM52120/06; MUM52120AU/02; MUM52120AU/03; MUM52120GB/02; MUM52120GB/03; MUM52120GB/05; MUM52130/03; MUM52131/02; MUM52131/03; MUM52133/02; MUM52133/03; MUM52E32/02; MUM52E32/03; MUM53143/02; MUM53143/03; MUM54020/02; MUM54230/01; MUM54230/02; MUM54230/04; MUM54230/06; MUM54230AU/01; MUM54230AU/02; MUM54240/01; MUM54240/02; MUM54240/05; MUM54240/06; MUM54420/01; MUM54420/02; MUM54520/01; MUM54520/02; MUM54530AU/01; MUM54530AU/02; MUM54620/01; MUM54620/02; MUM54630AU/01; MUM54630AU/02; MUM54720/02; MUM54920/02; MUM54920GB/02; MUM54920GB/04; MUM54920GB/06; MUM54Q40/01; MUM54Q40/02; MUM54W41/01; MUM54W41/02; MUM54W41/06; MUM55761/02; MUM55761/04; MUM55761/06; MUM56320CH/01; MUM56320CH/02; MUM56320CH/04; MUM56320CH/06; MUM56340/01; MUM56340/02; MUM56340/04; MUM56340/06; MUM56340AU/01; MUM56340AU/02; MUM56740/02; MUM56740/04; MUM56740/06; MUM56S40/01; MUM56S40/02; MUM56S40/04; MUM56S40/06; MUM56Z40/02; MUM56Z40/04; MUM56Z40/06; MUM57810/01; MUM57810/02; MUM57830/01; MUM57830/02; MUM57830GB/01; MUM57830GB/02; MUM57830GB/04; MUM57830GB/05; MUM57860/01; MUM57860/02; MUM57860/04; MUM57860/05; MUM57860AU/02; MUM57860AU/04; MUM57860AU/05; MUM57B22/02; MUM57B22/04; MUM57B22/05; MUM57B224/02; MUM57B224/04; MUM57B224/05; MUM58020/02; MUM58020/05; MUM58020GB/02; MUM58020GB/05; MUM58224/02; MUM58224/04; MUM58224/06; MUM58227/06; MUM58231/02; MUM58231/04; MUM58231/06; MUM58234/02; MUM58234/04; MUM58234/06; MUM58235/02; MUM58235/04; MUM58235/06; MUM58243/02; MUM58243/04; MUM58243/06; MUM5824C/06; MUM58250/02; MUM58250/04; MUM58250/06; MUM58253/02; MUM58253/04; MUM58253/06; MUM58257/02; MUM58257/04; MUM58257/06; MUM58258/02; MUM58258/04; MUM58258/06; MUM58259/04; MUM58259/06; MUM58420/02; MUM58420/05; MUM58720/02; MUM58720/05; MUM58720GB/02; MUM58720GB/05; MUM58920/02; MUM58920/05; MUM58A20/06; MUM58C10/06; MUM58CR60/06; MUM58K20/02; MUM58K20/04; MUM58K20/06; MUM58K20TW/06; MUM58L20/02; MUM58L20/04; MUM58L20/06; MUM58L20TW/06; MUM58M59/04; MUM58M59/06; MUM58MG60/06; MUM58NP60/06; MUM58W20/06; MUM58W56DE/02; MUM58W56DE/04; MUM58W56DE/06; MUM59340GB/02; MUM59340GB/04; MUM59340GB/06; MUM59340TW/06; MUM59343/02; MUM59343/04; MUM59343/06; MUM5934D/06; MUM59363/02; MUM59363/04; MUM59363/06; MUM59N26DE/02; MUM59N26DE/04; MUM59N26DE/05; MUM59N37DE/02; MUM59N37DE/04; MUM59N37DE/05; MUM59S81DE/02; MUM59S81DE/04; MUM59S81DE/06; MUM5LOVE/06; MUM5XW10/06; MUM5XW10CH/06; MUM5XW10GB/06; MUM5XW20/06; MUM5XW40/06; MUMS2EB01/01; MUMS2ER01/01; MUMS2ER01G/01; MUMS2EW01/01; MUMS2EW20/01; MUMS2EW30/01; MUMS2EW30G/01; MUMS2EW40/01; MUMVC204CN/02; MUMVC204CN/05; MUMVC20QCN/02; MUMVC20QCN/05; MUMVC20RCN/02; MUMVC20RCN/05; MUMVC312CN/05; MUMVH48BCN/02; MUMVH48BCN/04; MUMVH48BCN/05; MUMVXW20CN/06; MUZ5VL1(00)
