Description

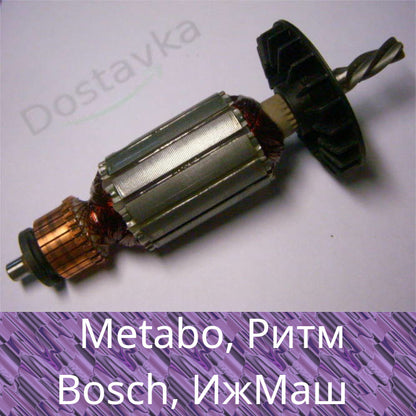

Armature with 4 teeth left, 35 mm diameter, total length 153 mm, distance between bearings 117 mm, for Metabo rotary hammer, Ritm 780 DFR, Bosch PSB-550 RE, IzhMash 1300, stack length 43 mm

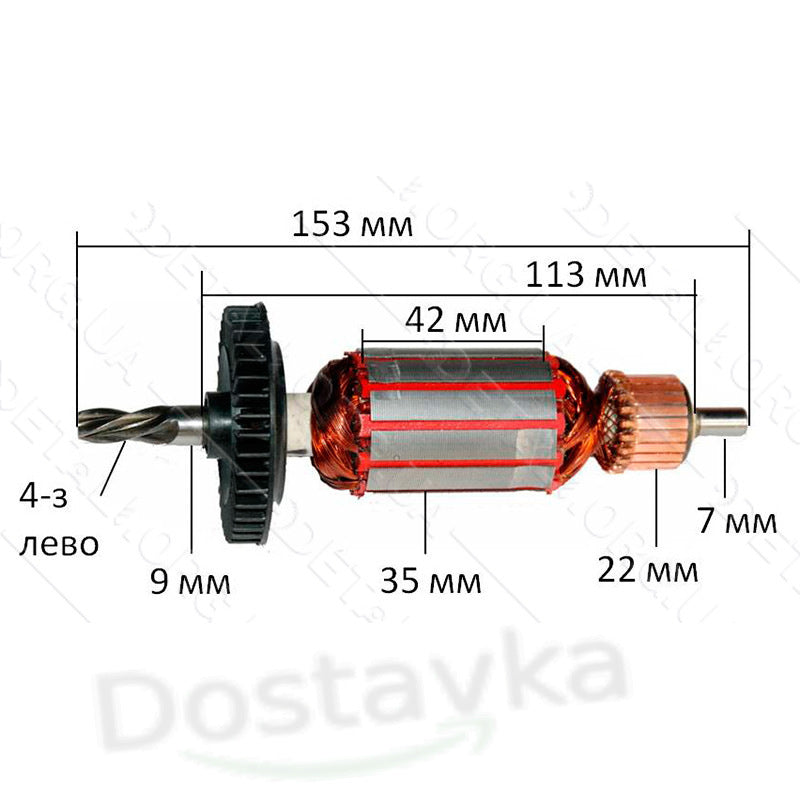

Main Parameters
- shank: 4 teeth left, 6.5 mm diameter
- total length (mm): 153
- stack diameter (mm): 35
- stack length (mm): 42
- commutator diameter (mm): 22
- lower bearing (mm): 7
- upper bearing (mm): 9
- distance between bearings (mm): 113
