Description

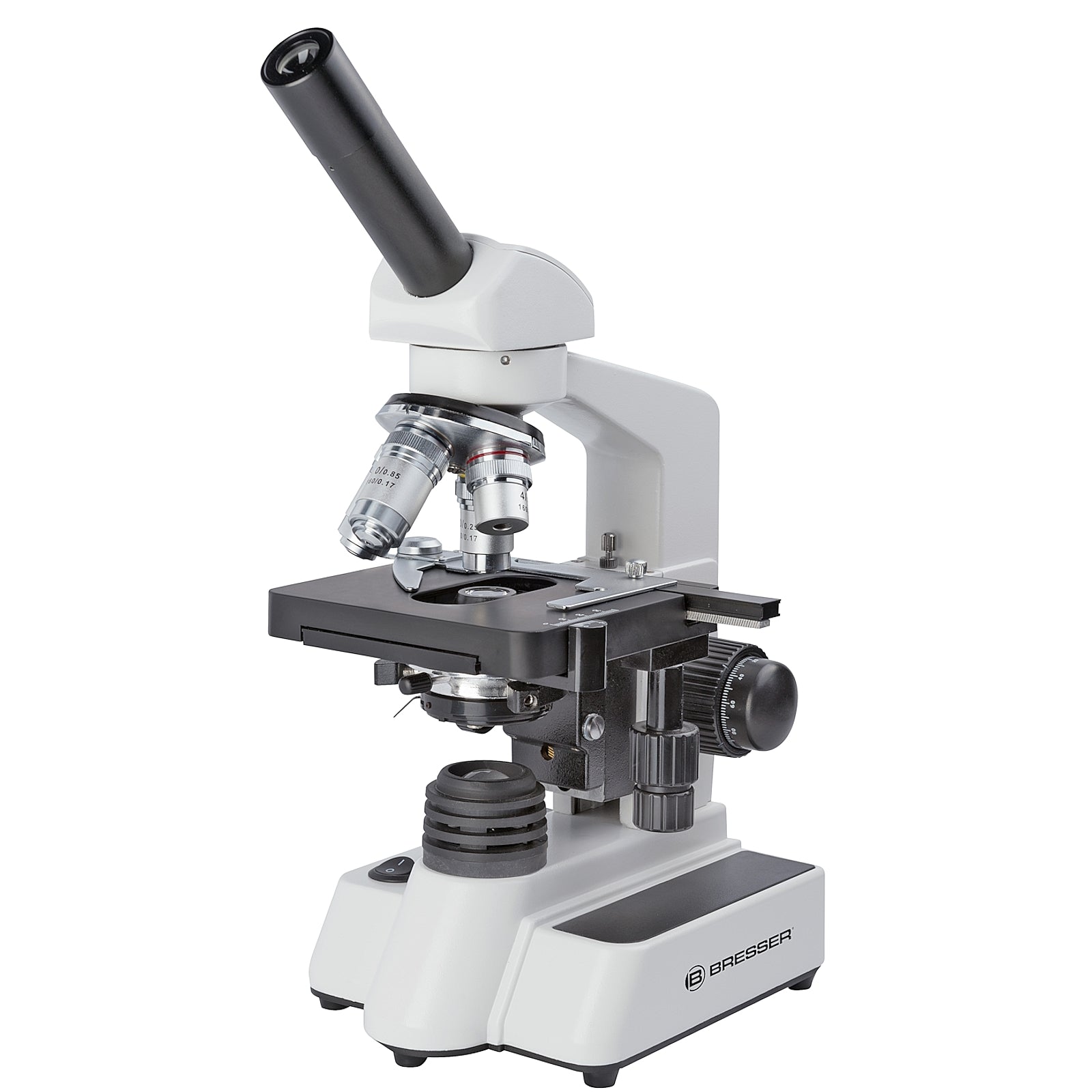

The BRESSER Erudit DLX 40-600x microscope is a high-quality transmitted-light educational biological microscope with achromatic DIN optics for school, training and serious hobby. Four magnifications (40x, 100x, 400x, 600x) and achromatic DIN objectives provide bright, detailed images, and no immersion oil is required for operation. The height-adjustable Abbe condenser with field diaphragm and filter holder allows for fine control of illumination and contrast, and the coaxial mechanical stage with vernier scale allows for precise positioning of the specimen. The LED backlight with brightness adjustment and power supply from the mains or USB make the device convenient for everyday use. Thanks to the DIN standard, the microscope can be easily expanded with interchangeable objectives and accessories for more complex tasks.
About the Bresser brand
Bresser was founded in 1957 by Josef Bresser in Rhede (Germany), and today it is one of the leading European manufacturers of optical instruments. A special place in the brand's assortment is occupied by telescopes - from affordable models for beginners to serious refractors, reflectors and mirror-lens systems for experienced amateur astronomers. Bresser has its own developments in the field of astronomical optics, mounts and accessories, and is also the owner of the well-known American brand Explore Scientific, which strengthens its position in the telescope market. In addition to astronomical equipment, the company produces microscopes, binoculars, spotting scopes and weather stations, combining a German engineering approach with an affordable price.
Features

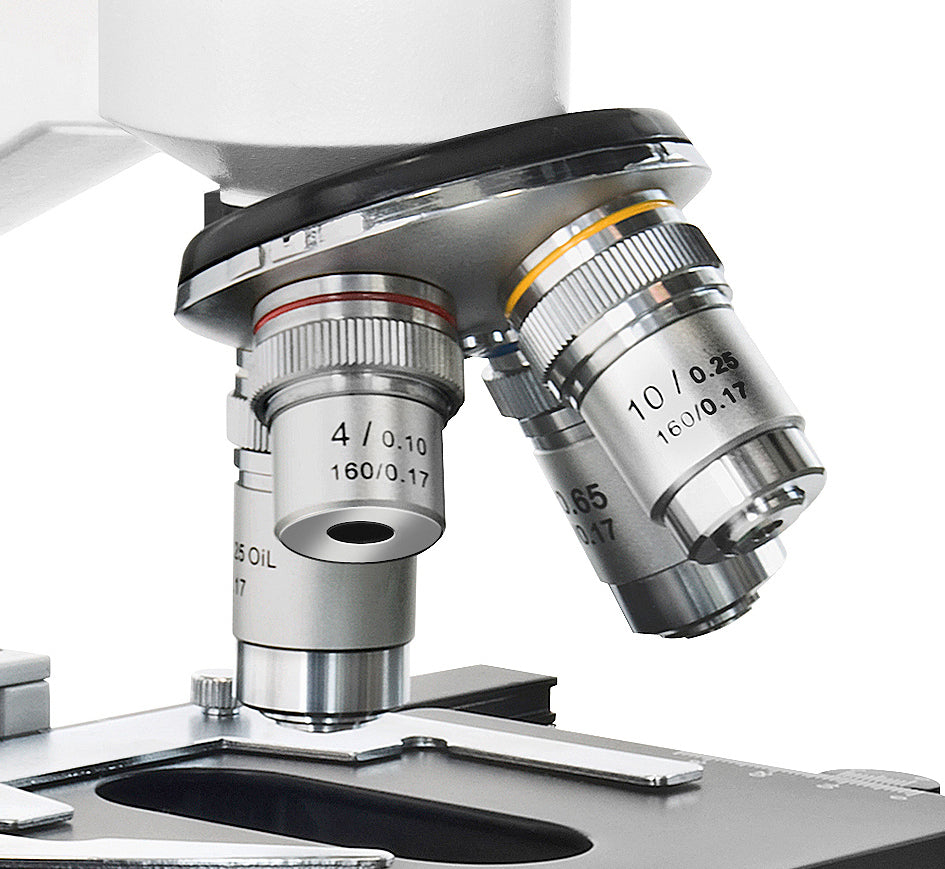

- Achromatic DIN objectives (4x, 10x, 40x, 60x) — The microscope is equipped with four achromatic DIN objectives that provide sharp images with good detail. Achromatic correction reduces color distortion at the edges of the field of view. The DIN standard ensures compatibility with interchangeable objectives of the same type for expansion needs.
- Four magnifications 40x / 100x / 400x / 600x - the combination of objectives and a 10x eyepiece provides four practical magnification levels. The low values are convenient for visual search of an object, and 600x allows you to examine the small structures of cells and microorganisms. To work at these multiplicities, immersion oil is not required, which simplifies observations.
- Protected 40x and 60x objectives - the strongest objectives have a spring-loaded mount that softens contact with the specimen. This protects both the lenses themselves and the slide from damage in the event of accidental contact. Especially useful when focusing at close range to the specimen.
- WF 10x Eyepiece with Pointer — The kit includes a wide-field eyepiece with a built-in pointer arrow. The pointer is convenient for training when you need to point to a specific detail in the field of view. The eyepiece's mounting diameter is 23.2 mm, so you can purchase compatible eyepieces if necessary.

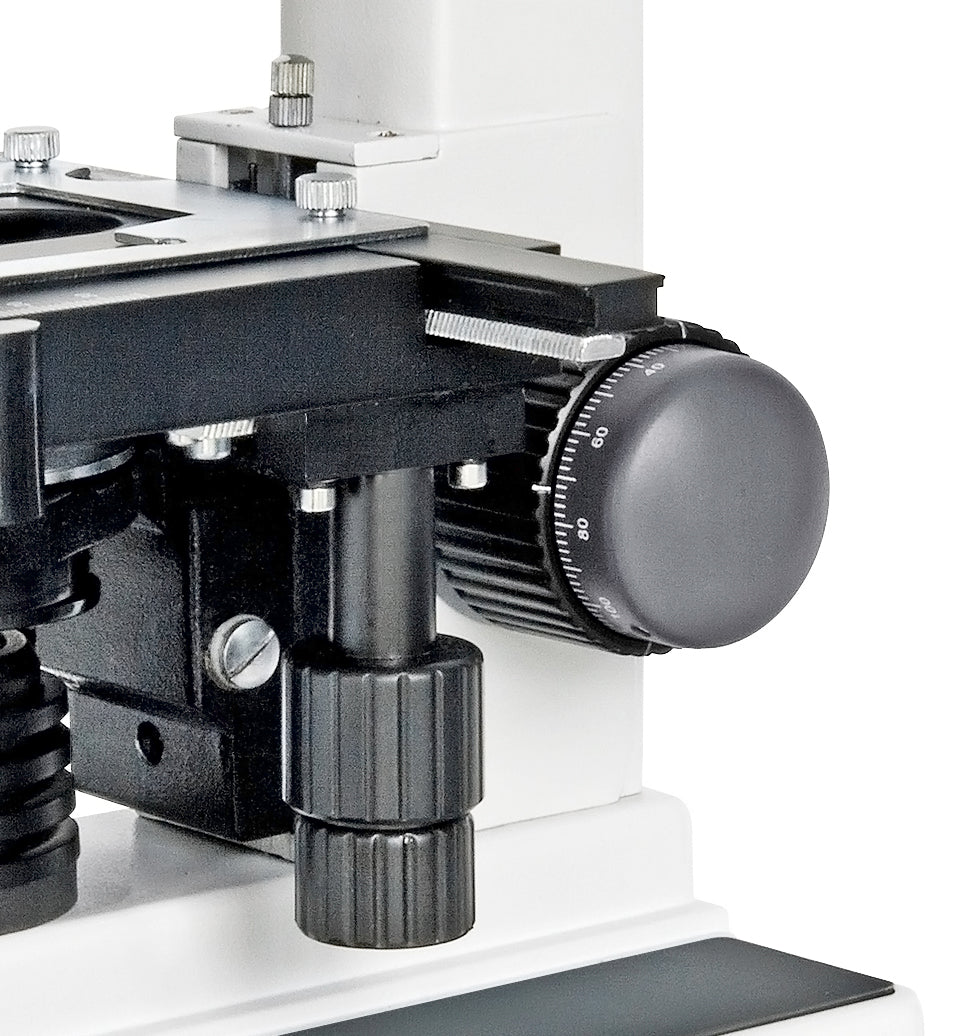

- Coarse and fine focusing — focusing is performed by two mechanisms on a common axis. The coarse screw quickly brings the specimen into focus, while the fine screw allows you to carefully "crop" the image at high magnifications, where the depth of field is minimal. This provides a clear image and reduces the risk of the lens colliding with the specimen.
- Coaxial mechanical stage with vernier scale - the specimen is moved along two axes by a mechanical stage, and the vernier scale allows you to accurately read and reproduce the coordinates of the area. This is especially useful when you need to return to the same place on the specimen. Accurate positioning saves time and makes observation more comfortable.
- Adjustable Abbe condenser with field diaphragm - the condenser is height adjustable and equipped with a field diaphragm to control contrast and brightness of the illumination. Proper adjustment significantly increases the clarity and sharpness of the image. The filter holder allows you to add color filters...
