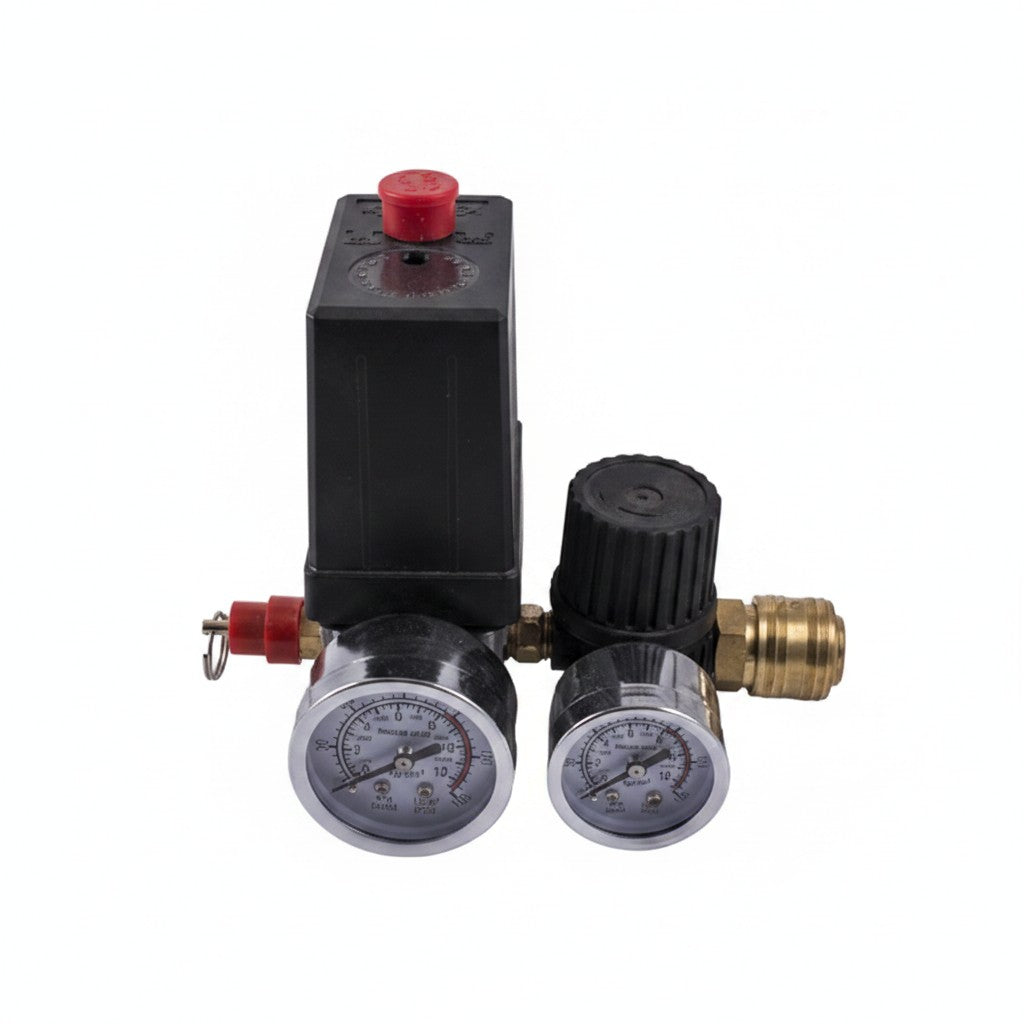

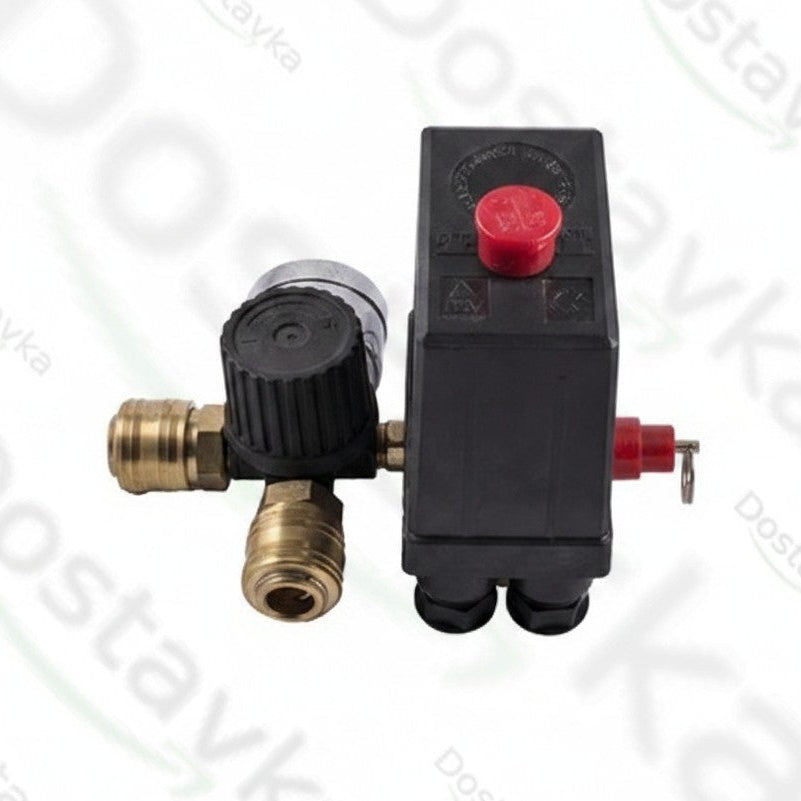

PSI175 compressor control unit for Edon ED-1100-10L, Edon ED1100-50L with three outlets, complete with valves, pressure gauges, and quick-release couplings
Small kit (220V, 1/4" thread, 2 quick-release couplings, regulator, 2 pressure gauges)
Compact control unit (pressure switch) complete with brass quick-release couplings is designed for automatic control of single-phase piston compressors (220V). The unit ensures timely starting and stopping of the electric motor based on pressure changes in the receiver. It is equipped with a built-in regulator for pressure adjustment, two pressure gauges, a safety relief valve, and two universal brass quick-release couplings for instant hose connection.
Key Advantages and Features:
- Brass quick-release couplings included: Allow connecting and changing pneumatic tools in one motion without using wrenches or adapters.
- Ready-to-install assembly: Pressure switch, regulator, 2 pressure gauges, safety valve, and quick-release couplings are pre-assembled into a single unit.
- 1/4" (Ø 12 mm) receiver connection: Standard threaded connection for installation on most compact domestic compressors.
- Easy start (unloader valve): Equipped with a fitting for an unloader tube (6 mm) to release pressure from the cylinder head when the motor stops.
- Precise adjustment: The regulator's rotary handwheel allows for quick setting of the required working output pressure.
Compatibility and Application:
- Compressors: Piston oil and oil-free compressors with 220V power and receiver volumes of 24L, 50L.
- Brands: Dnipro-M, Werk, Forte, Miol, Sigma, Intertool, Metabo, Hyundai, Denzel, Einhell, and similar.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Part type | Control unit assembly (small pressure switch with quick-release couplings) |
| Supply voltage / Current | 220 V / 16 A (single-phase) |
| Receiver connection | 1/4" internal thread (Ø ~12 mm) |
| Output connectors | 2 x Quick-release couplings (Euro standard / Universal, brass) |
| Unloader tube connection | For Ø 6 mm tube (nut with collet) |
| Operating pressure (factory setting) | Cut-in: ~6 bar (0.6 MPa) / Cut-out: ~8 bar (0.8 MPa) |
| Maximum pressure | 12 bar (175 PSI) |
| Pressure gauges | 2 pcs (in chrome-plated metal housing) |
Package Contents:
- 220V pressure switch with start button — 1 pc.
- Pressure regulator — 1 pc.
- Brass quick-release couplings — 2 pcs.
- Analog pressure gauges — 2 pcs.
- Safety relief valve — 1 pc.
