Description

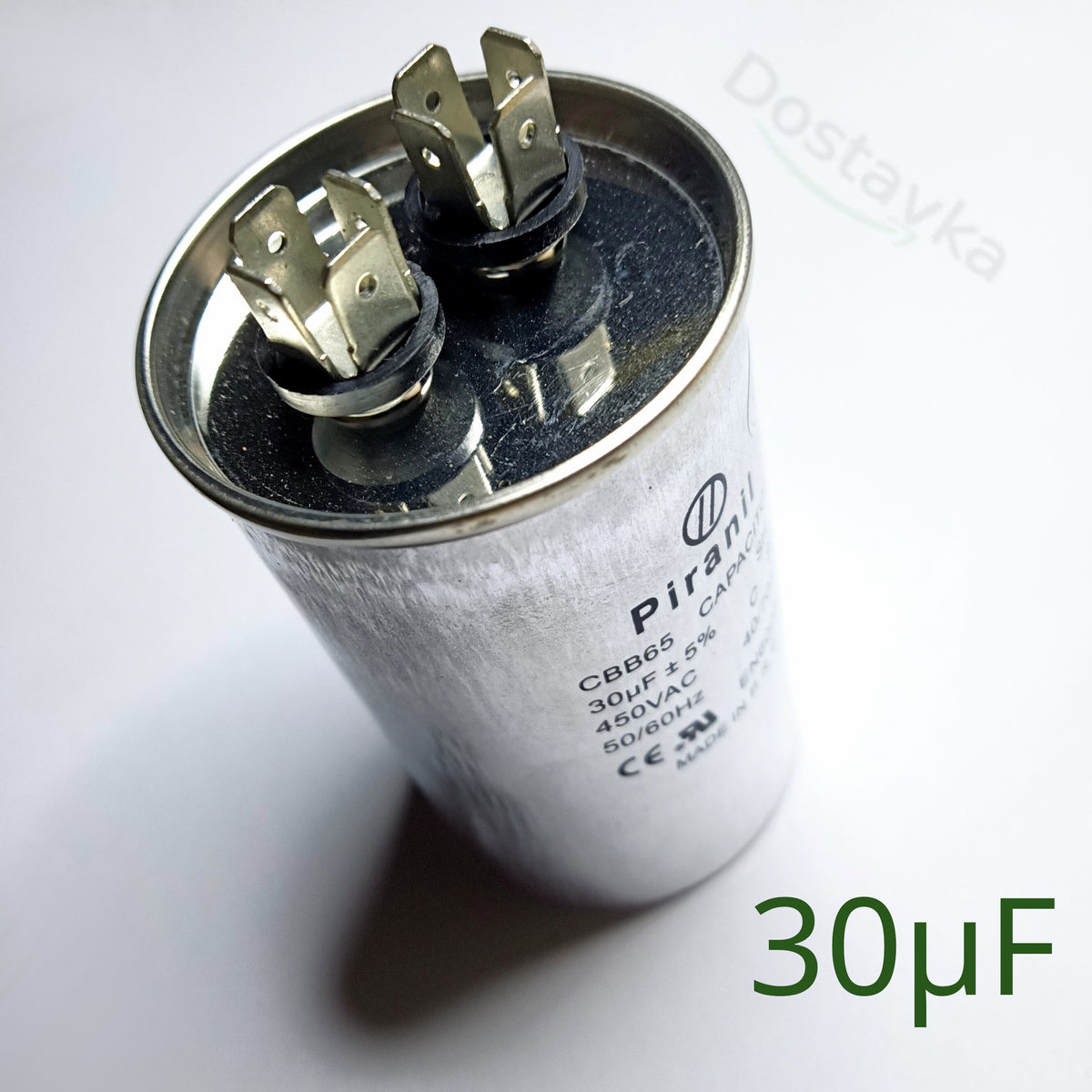

CBB65 capacitor with a capacity of 30μF 450V in a metal case d50 h102 with two or four terminal outputs.
Main parameters:
- Diameter 50 mm
- Height 85/102 mm
- Total height with terminals 98/115 mm
- Capacitance 30μF
CBB65 30 uF 450V AC Start/Run Capacitor (in metal case)
Non-polar phase-shifting metalized film CBB65 start-run capacitor with 30 μF (30 uF) capacitance at 450 V for starting and ensuring continuous operation of single-phase asynchronous electric motors, compressors, and pumping equipment. The sealed metal case provides efficient heat dissipation and resistance to high external and internal loads.
Key advantages and features:
- Sealed metal case: The aluminum cylinder protects internal components from moisture and mechanical damage, ensuring high-quality cooling during continuous operation.
- High reliability and safety: The CBB65 type capacitor is equipped with a self-healing dielectric (polypropylene film), which prevents breakdown during short-term voltage spikes.
- Ease of connection: Standard dual flat terminals (Faston 6.3 mm) allow for quick connection and wire branching without soldering.
- Wide range of applications: Suitable for both household appliances and industrial HVAC and pumping equipment.
Application area:
- HVAC equipment: Air conditioner compressors, split systems, and chillers.
- Pumps and ventilation: Submersible, borehole, and surface water pumps, powerful exhaust fans.
- Household and garden equipment: High-pressure washers, concrete mixers, air compressors, lawn mowers, and machine tools.
Technical specifications:
| Parameter | Value / Specification |
|---|---|
| Part type | Start/Run Capacitor |
| Series / Marking | CBB65 |
| Nominal capacitance | 30 μF (30 µF / uF) |
| Capacitance tolerance | ± 5% |
| Rated AC voltage | 450V AC |
| Operating frequency | 50 / 60 Hz |
| Case design | Metal (aluminum) cylinder |
| Terminal type | Dual 6.3 mm flat terminals (Faston) |
| Polarity | Non-polar (connection in any direction) |
Package includes:
- CBB65 30 uF 450V AC capacitor — 1 pc.
Pro tip: When replacing a start capacitor, select a capacitance that exactly matches the rating of the failed part (30 uF). Installing a part with lower capacitance will cause the motor to overheat during startup, while a significantly higher capacitance will lead to humming and overheating during operation.
