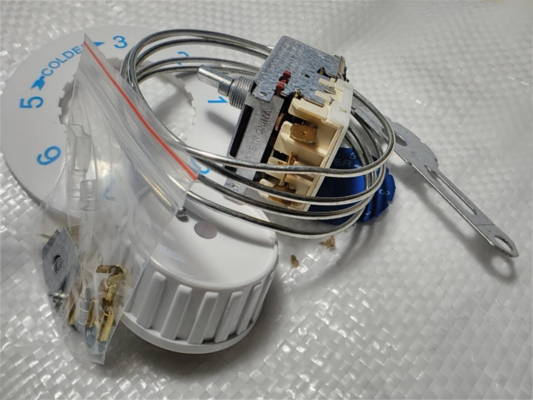

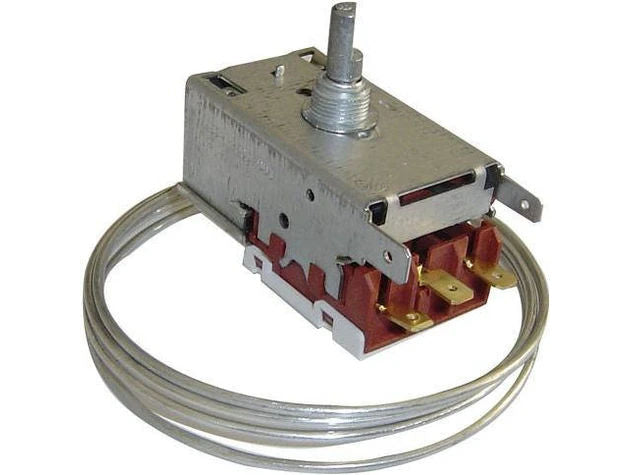

Thermostat K59 1.3 meters L2122 for European refrigerators

Thermoregulator K59 L2122 (P1761, L1360) for European and domestic two-chamber refrigerators INDESIT NBA160 (58754210010), Snaige Rf 315, Hanseatic, Ardo, Dnepr, Nord DH 239-7, Nord-OSCAR, NORD 431-7-010. Capillary 1.3 meters in the freezer.
Maximum current 6A.
Maximum temperature: 36C, minimum: -6C.
Three terminals (not counting the ground terminals), "3", "6" and "4".
For the compressor, contacts "3" and "4".
The state of the contacts depends on the temperature of the evaporator and the logic of the thermostat.
When the knob is turned counterclockwise, the device opens contacts "3" and "6", turning off the power supply to the refrigerator, otherwise these contacts are closed. Contacts "3" and "4" open when the temperature drops below the response (disconnection) threshold.
By turning the knob you can change the thermostat shutdown threshold.
Contacts "3" and "4" close when the temperature of the weeping evaporator rises above the switch-on threshold.
The response threshold does not depend on the position of the handle, but is set at the factory.

Compressor connection circuit on the 3rd and 4th terminals.
