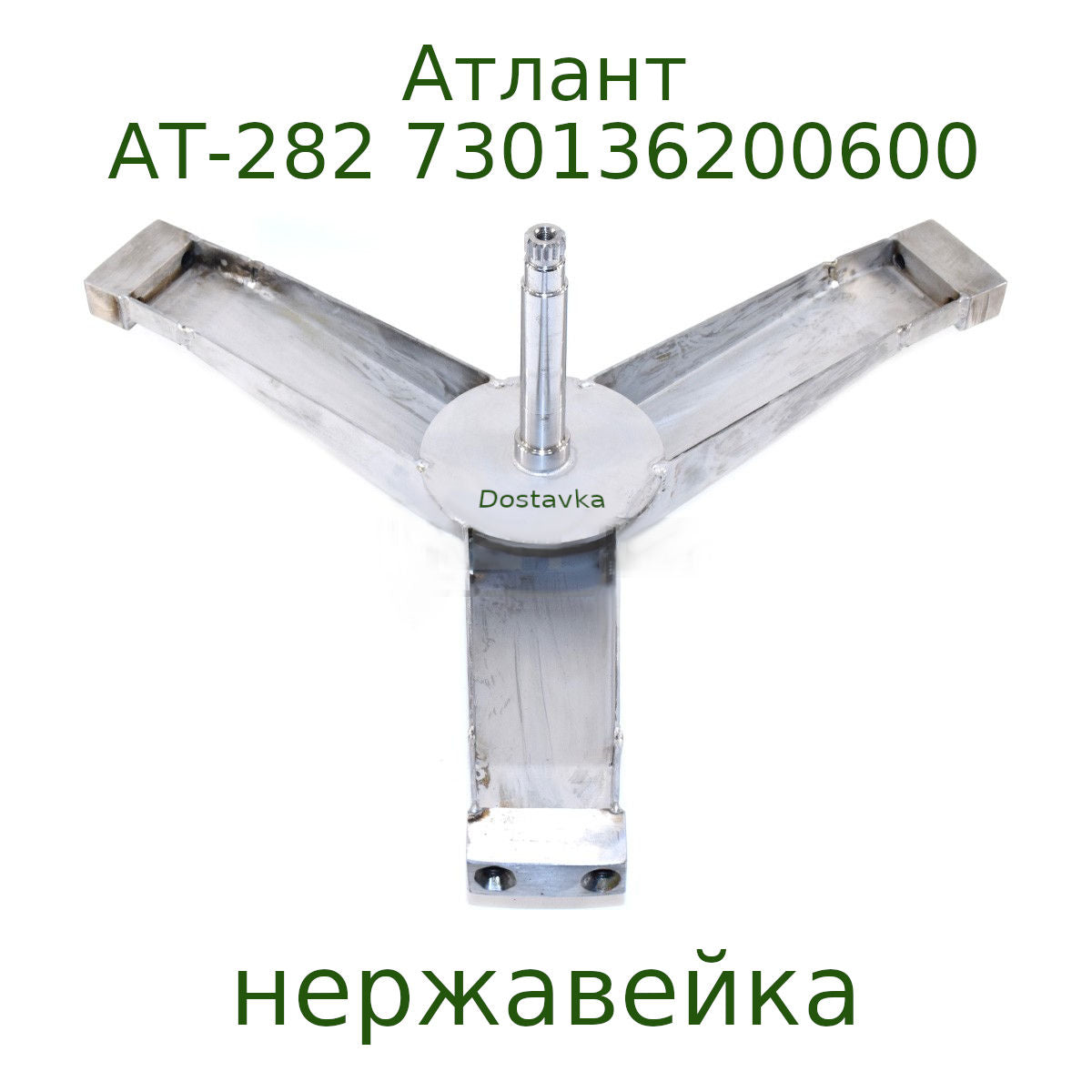

Drum support crosspiece 730136200600 for washing machine Atlant AT-282 (stainless steel)

Drum support crosspiece 730136200600 of the washing machine Atlant AT-282, 50С82, 50С81, 50С101, СМА 70С87 (stainless steel). Distance between shaft center and drum mount 230 mm. Shaft height 122 mm. Mounting type M8 Distance from sleeve to outer bearing 86 mm. The distance from the seat of the outer bearing to the end of the shaft is 24 mm. Shaft diameter 20 mm (6203 in.) The diameter of the bushing under the oil seal is 25 mm (6204 under.) The outer bearing seat diameter is 17 mm. Pulley seat 17 mm spline 15 teeth Material: stainless steel The height of the sleeve is 12 mm.
