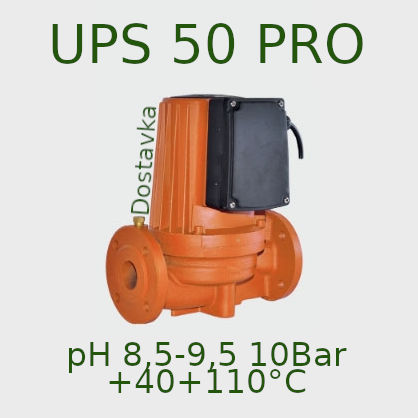

Circulation pump UPS 50 PRO

Circulation pump EUROAQUA LPA UPS 50 PRO for water heating system, replacement Grandfar UP50-16F-280.

Umovi zastosuvannya

• – Working quality: non-sticky, chemically non-aggressive, without fibrous inclusions or mechanical houses
• – pH value 8.5-9.5
• – Maximum working vice 10 atm.
• – Maximum temperature of the pumped medium +110 0С
• – Maximum core temperature +40 0С

Zastosuvannya area

Circulation pumps are used for pumping working fluids in closed and open-type combustion systems, as well as air conditioning systems with a constant volume of working fluid.

Design characteristics:

• – Mid stator winding
• – Asynchronous motor with short-circuit “wet” rotor of closed type
• – Cooling of the engine with pumped liquid
• – Three pressure modes
• – Monoblock visco with one impeller
• – Pump chamber housing made from chavun
• – Impeller made of PES polymer
• – Drive shaft made of high-acid metal ceramics
• – Stator housing made of aluminum
• – Ceramic graphite bearings
• – Union nuts included
• – Mounting base 250 mm
