Description

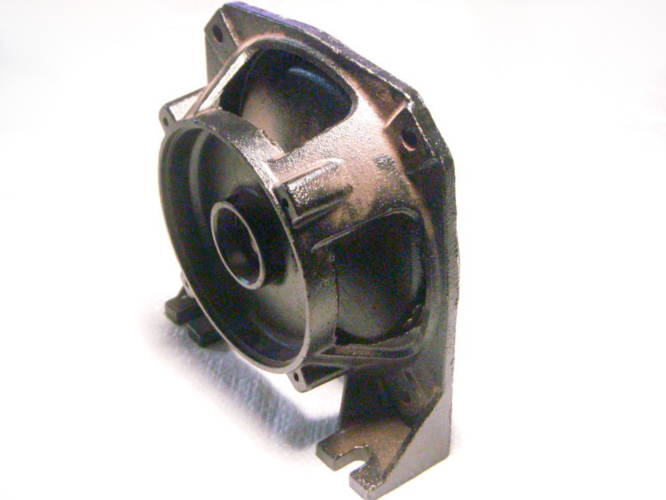

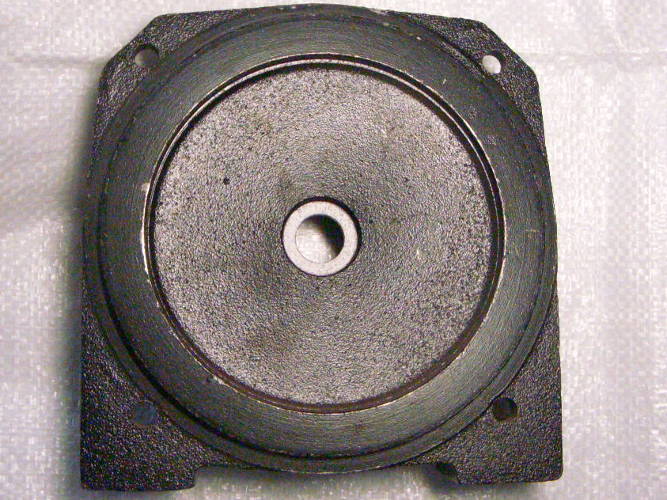

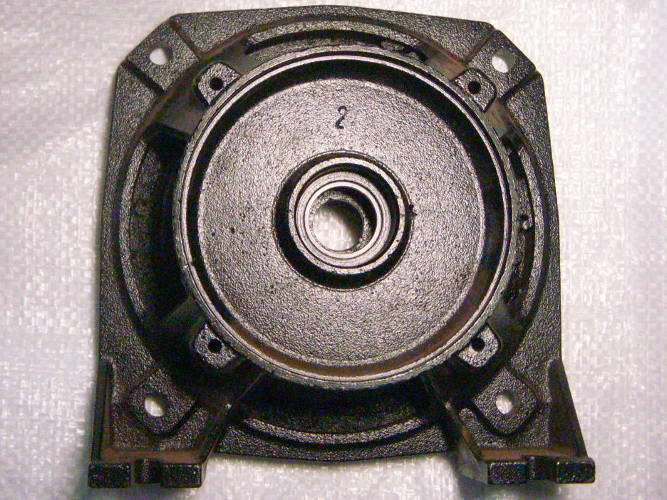

Central cast iron flange support (shield) of the Taifu TDP370A pumping station, Pumps + JET80B/JET110B JET-B(X/AX) (Ø35) (type C) (from 2003) (chavun) NPO (A05/021) : JET80B; JET80X; JET80AX; JET110B; JET110X; JET110AX;

Parameters:

202nd bearing (35 mm).
mechanical seal (usually for 14-shaft) with a fixed ring in a 30 mm rubber band.
Typically the impeller is up to 130 mm.
Between the mounting holes 187 (from the impeller side) and 128 (engine side) mm diagonally along the centers.

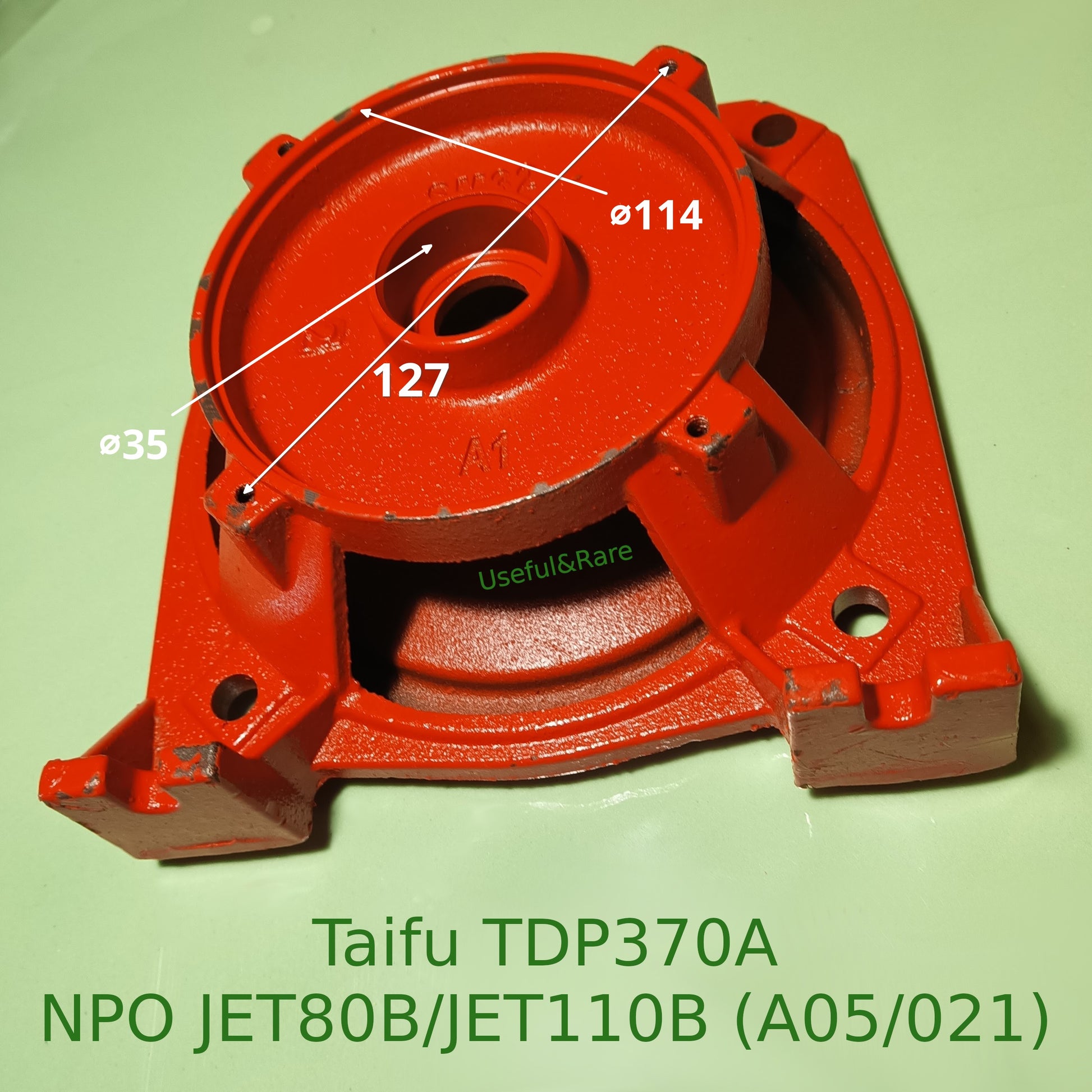

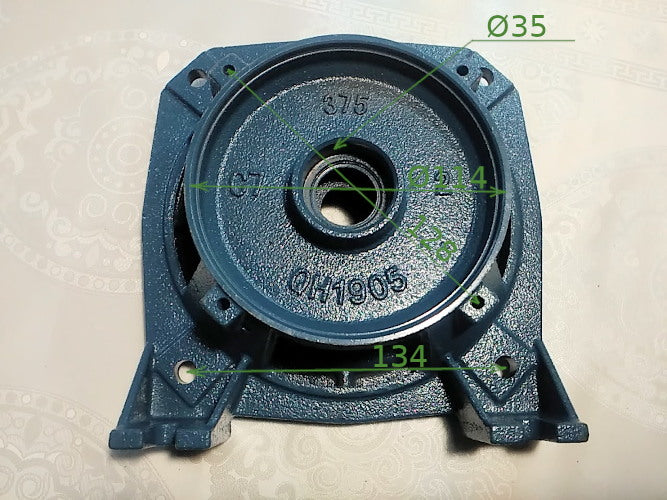

Control measurements are indicated on the drawings.
