Description

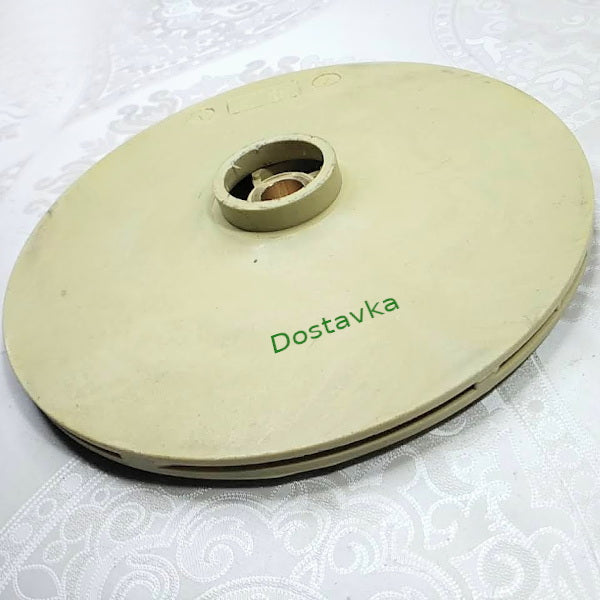

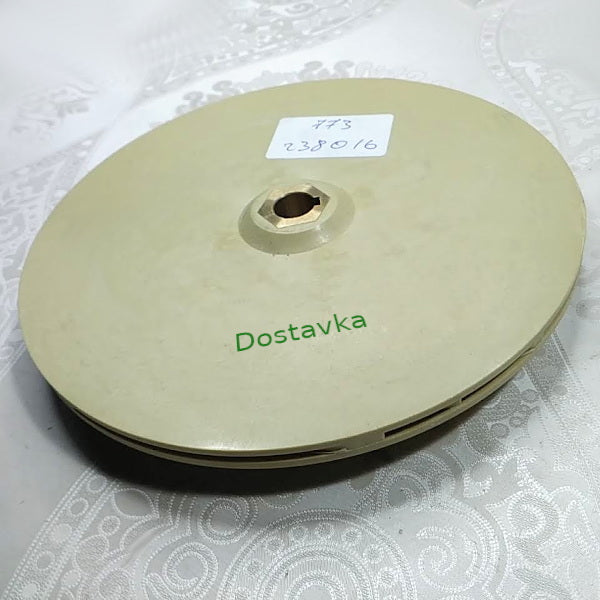

Impeller of centrifugal pump Sprut QDX1,5-32-0,75FA (d12*162 h2,8) (plastic) (A06), AQUATICA CPM 773238, 773208 (773238016).
Shaft diameter 12
Outer diameter 162
Bushing height 16
Total height 24mm
Between discs 2.8mm

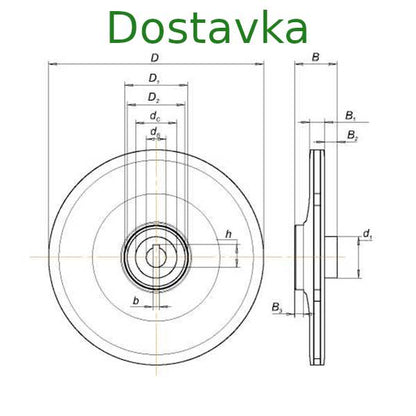

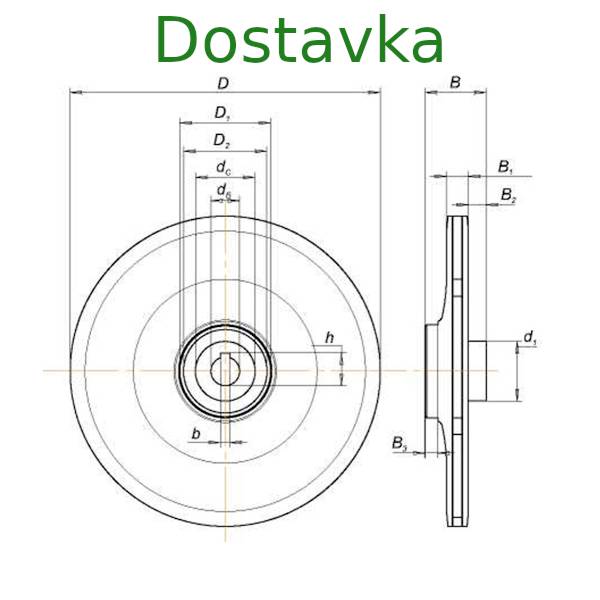

Dimensions according to the drawing: D - 162 mm D1 - 34 mm D2 - 27.5 mm dB - 12 mm dc - 20 mm d1 - 34 mm B - 24 mm B1 - 8 mm B2 - 4 mm B3 - 7.75 mm b - 4 mm h - 14 mm
