Einhell Bavaria Rotary Hammer Armature BRH 850 (L159, d41, t4)

Name: Einhell Bavaria Rotary Hammer Armature BRH 850 (L159, d41, t4)
Brand: Dostavka
SKU: 11320
Price: 677.14 UAH
Availability: InStock
Rating: 5 (40 reviews)

Einhell Bavaria Rotary Hammer Armature BRH 850 (L159, d41, t4)

SKU: 11320 0

€13.82 EUR

₴677.14 UAH

Sale Sold out

Possible shipping in the coming days/ weeks

Shipping costs are calculated when placing your order.

Parameters:

diameter_1 : 41

diameter_2 : 28

diameter_3 : 12

diameter_4 : 8

diameter_5 : 8

length_1 : 159

length_2 : 122

length_3 : 45

teeth : 4

We deliver by regular mail with track number

Return & Warranty policy

067-7555557

View all information

Description

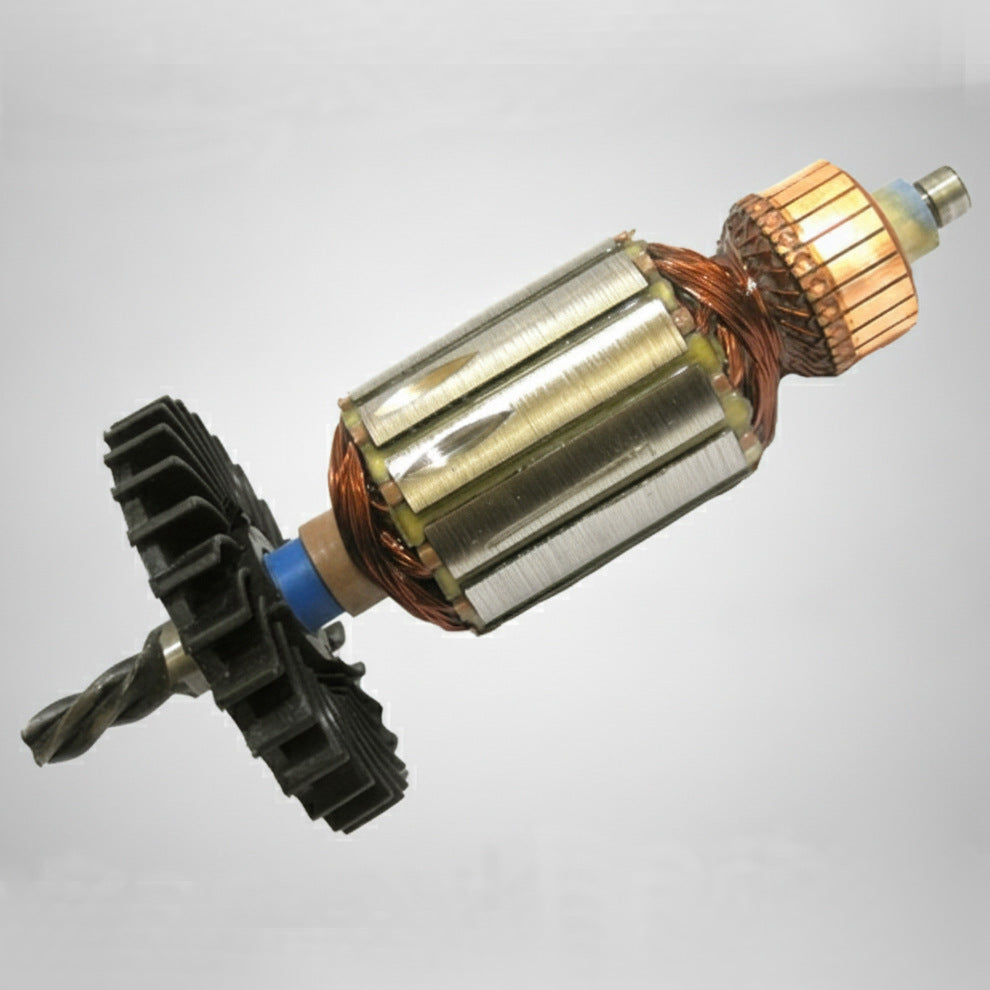

4-tooth rotary hammer motor armature for Matrix EHD-900-26, Einhell BRH 850, BBH 850 Bav, Craft 626, Zenit ZPP-1450, Zenit PT-1352, Craft-Tec HDA 303; length 159 mm, winding diameter 41 mm, distance between 12 and 8 mm bearings is 122 mm, drive via 4 helical splines, stack length 45 mm

Total length 159mm
Winding stack diameter 41mm
Teeth: 4 left

Winding stack diameter D1, mm	41
Total length L1, mm	159
Number of teeth, slant Z	4 left
Commutator diameter d2, mm	28
Shank/Front	teeth
Rear/front bearing diameters, d4 mm/ d3 mm	8/12
Mounting distance (between bearings) L2, mm	122
