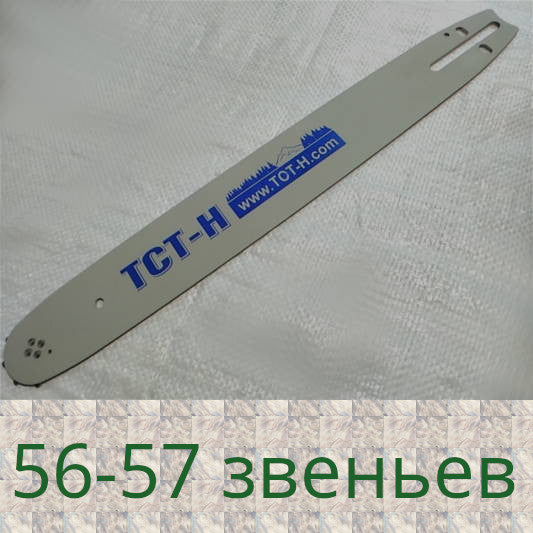

Electric Chainsaw Guide Bar (16", 3/8", 1.3mm, 56-57DL, ZLA16-59-509P)

Guide Bar for Electric Chainsaws 40 cm / 16" (3/8" LP / 1.3 mm / 56–57 links) ZLA16-59-509P

The 40 cm (16-inch) guide saw bar with part number ZLA16-59-509P is designed for installation on domestic and semi-professional corded electric chainsaws. The bar is made of high-strength structural steel resistant to overheating, bending loads, and abrasion. It features a sprocket nose to reduce chain friction and minimize engine wear.

Key Advantages and Features:

• High-strength steel alloy: Provides structural rigidity and resistance to deformation if the cutting equipment gets stuck in the wood.
• Sprocket nose with oiler: The built-in bearing in the bar nose reduces chain rotation resistance and the load on the electric saw's gearbox.
• Standard 1.3 mm (.050") groove: Ensures precise guidance of the chain drive links without excessive side play or cut wandering.
• Universal tail section: Fits most standard tensioning and chain lubrication systems of electric chainsaws.

Compatibility and Application:

The bar is designed for saw chains with a 3/8" pitch (Picco / Low Profile), a 1.3 mm groove width, and 56–57 drive links (some tensioners allow up to 59 links). Compatible with a wide range of domestic and imported electric saws:

• FORTE electric saws: FORTE FES-2440 and similar models.
• Rexton electric saws: Rexton ПЦ-2500.
• Tatra Garden electric saws: MSE series (MSE 210, MSE 220, MSE 230, MSE 240).
• Other brands: Vitals, Dnipro-M, Werk, Foresta, Grunhelm, Craft-Tec, Grand, Sturm, Zenit, etc., with a 40 cm (16") working length.

Technical Specifications:

Package Contents:

1. 16" (40 cm) saw bar ZLA16-59-509P — 1 pc.

Maintenance Tip: When replacing the bar, always check the condition of the oil feed channel in the tail and clean the inner groove of the bar from compressed sawdust. To extend the service life, regularly flip the bar 180° (top side down) so that the wear on the guide rails is even, and lubricate the sprocket nose through the special grease hole.
