Electric Chainsaw Guide Bar (L256, A10-39-507P, 39 links)

Guide bar A10-39-507P with a working length of 256 mm, for electric chainsaws, designed for 39 drive links

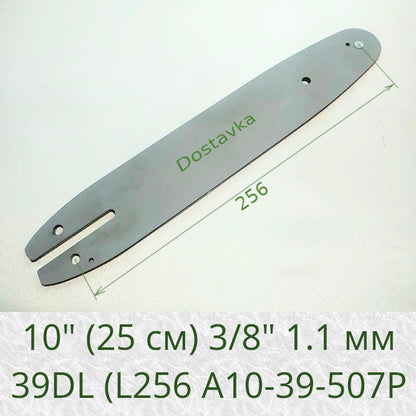

Guide Bar 10" (25 cm) 3/8" 1.1 mm 39DL (L256 A10-39-507P, Master Series)

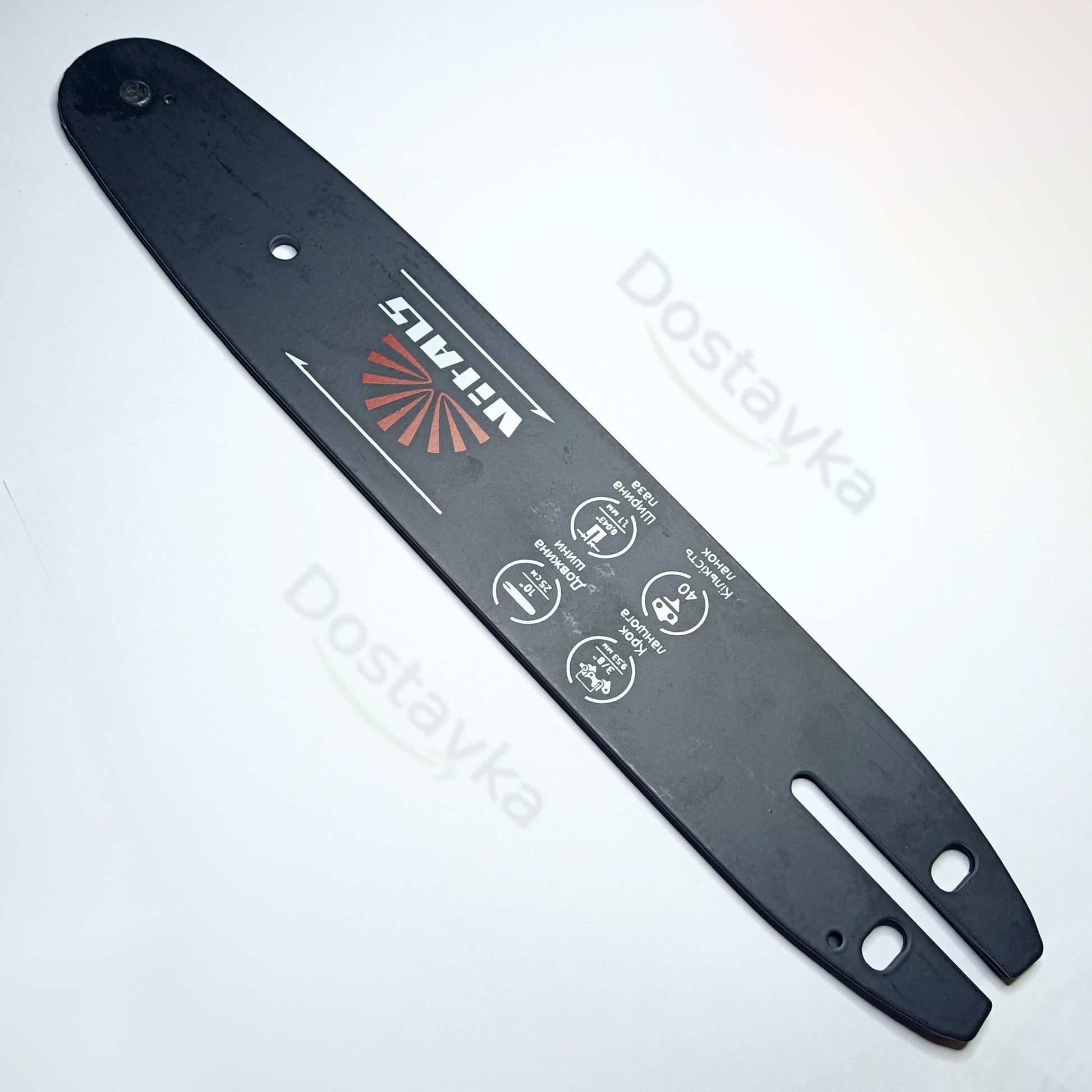

The compact Master series guide bar (part number L256 A10-39-507P) with a length of 10 inches (25 cm) is designed for installation on lightweight cordless saws, compact electric saws, and pole saws. The bar features an ultra-thin 1.1 mm (.043") groove and a 3/8" pitch, which significantly reduces the load on the tool's motor, saves battery power, and ensures a clean and precise cut.

Key Advantages and Features:

• Energy saving for cordless tools: Due to the narrow kerf (1.1 mm groove), the saw experiences minimal resistance during cutting.
• Minimal kickback and vibration: The 3/8" Micro pitch combined with the sprocket nose ensures smooth and safe chain operation.
• Wear-resistant design: Made of high-strength tool steel with a protective coating against corrosion and overheating.
• Universal mount: Fits most modern compact saws of Chinese and European manufacture.

Application and Compatibility:

• Tools: Cordless chainsaws, mini-saws, corded electric saws, pole pruners.
• Applications: Pruning branches and tree crowns in the garden, preparing small firewood, carpentry, and construction work.

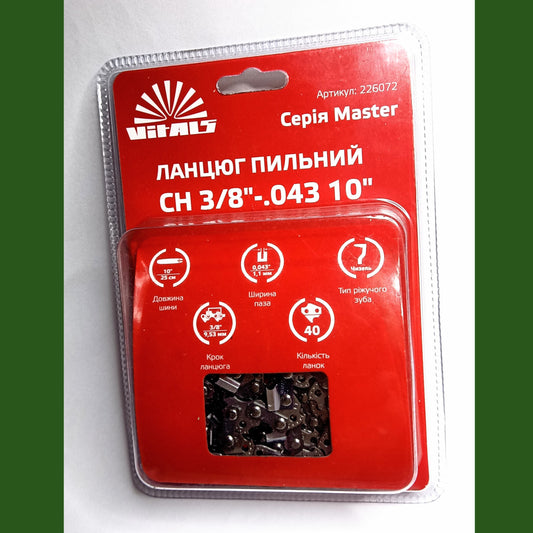

• Chain parameters: Designed for a saw chain with the following specs: 3/8" pitch, 1.1 mm (.043") gauge, and 39 DL (drive links).

Technical Specifications:

Parameter	Value / Specification
Part Number / Model	L256 A10-39-507P (Master Series)
Bar Length	10" / 25 cm
Chain Pitch	3/8" (Picco / Micro / Low Profile)
Groove Width (Gauge)	1.1 mm / .043"
Number of Drive Links (DL)	39 links
Nose Design	Sprocket nose with rivets
Material	High-carbon spring steel

Package Includes:

1. 10" Guide Bar (L256 A10-39-507P) — 1 pc.

Pre-purchase tip: When selecting a chain for this bar, ensure the parameters match: 3/8" pitch, 1.1 mm gauge, and exactly 39 drive links. Don't forget to lubricate the sprocket nose through the designated grease hole.
