Description

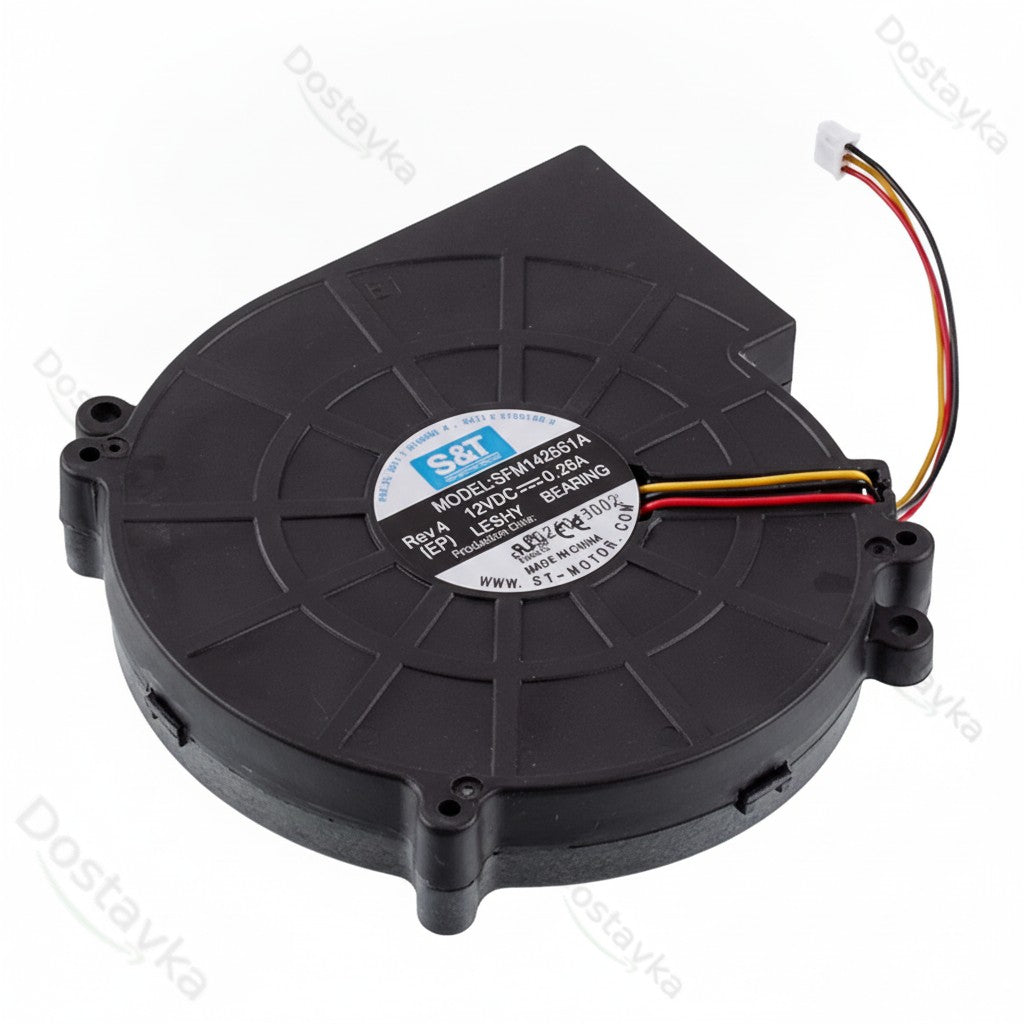

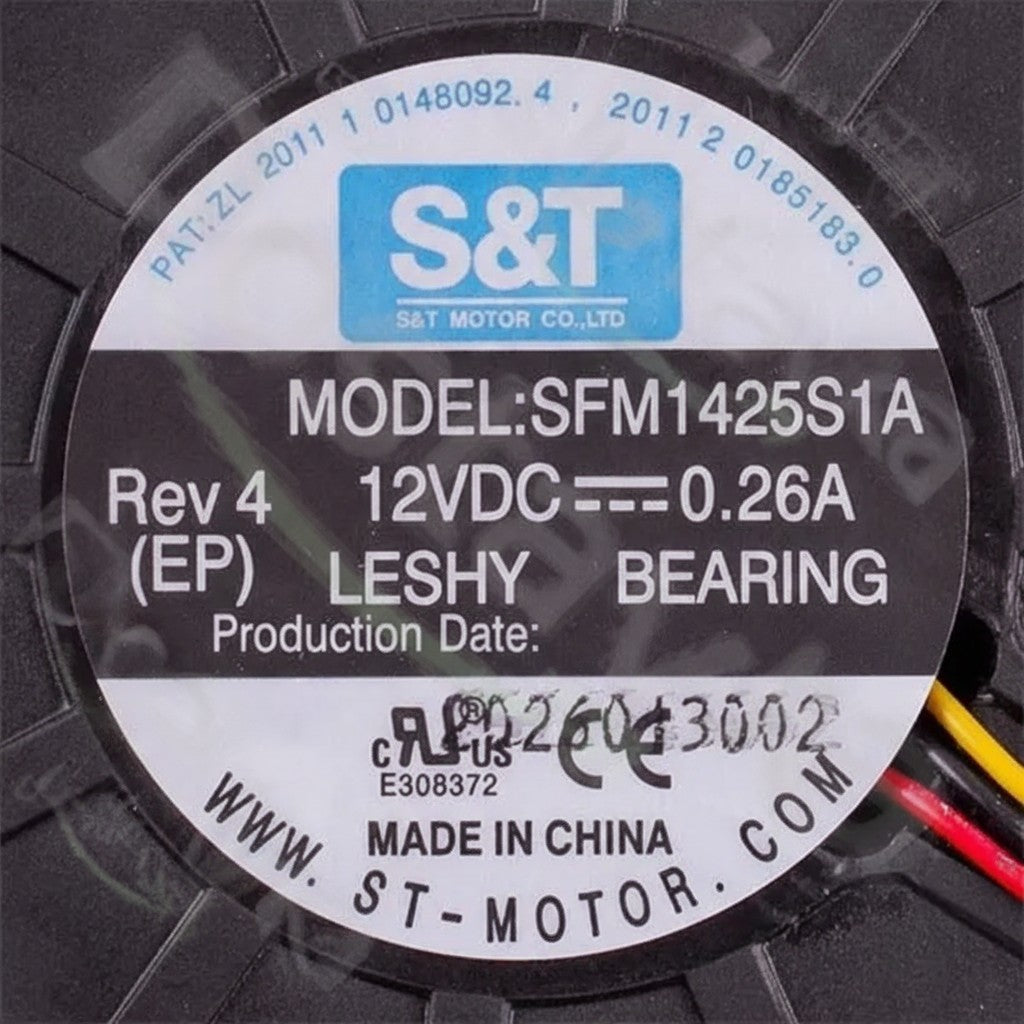

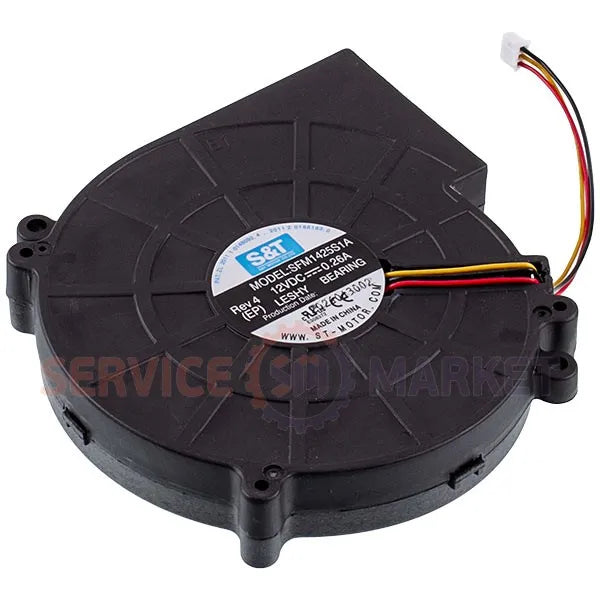

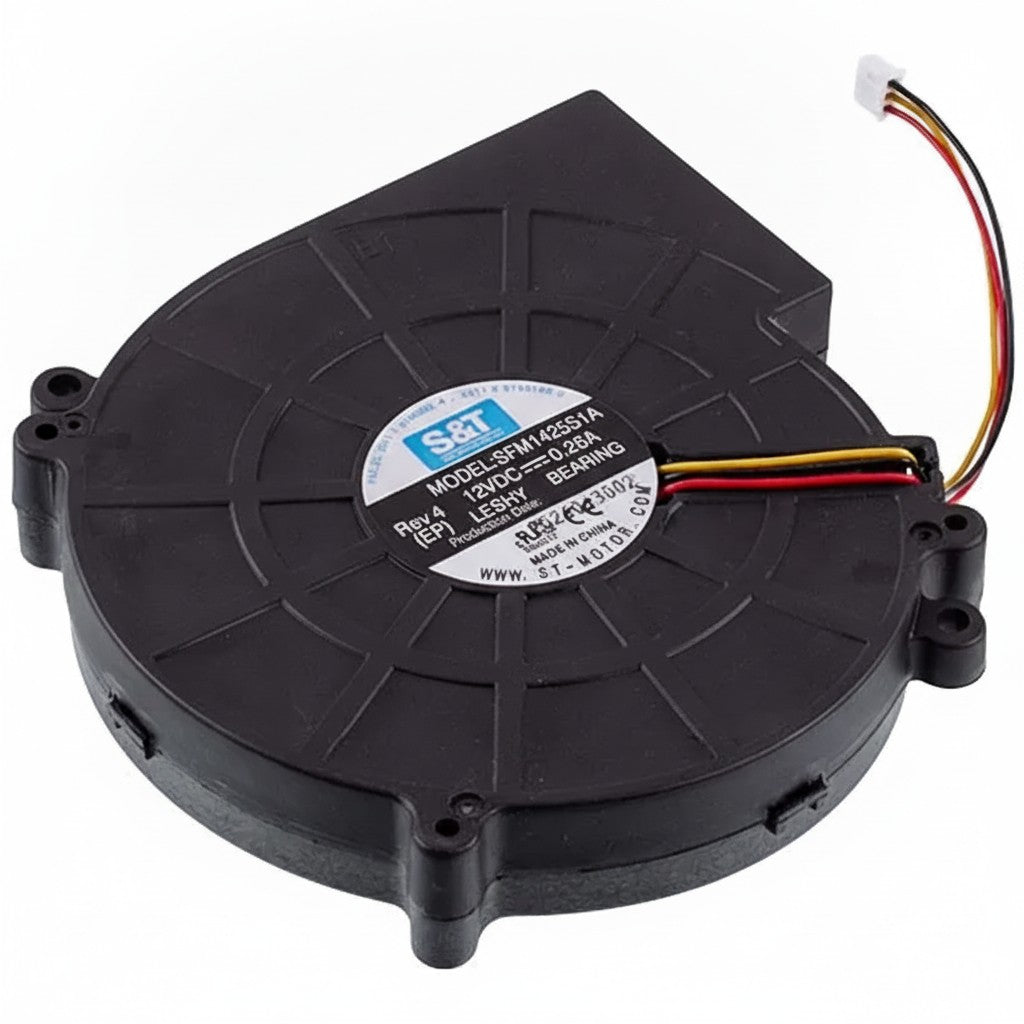

Power Module Cooling Fan for Electrolux / AEG / Zanussi Induction Hobs (Part Number: 140061345033)
The original Electrolux 140061345033 cooling fan (cooler) is designed for airflow and heat dissipation from the heat sinks of power transistors (IGBT modules) and the power control board of the induction hob. Stable fan operation directly affects the prevention of electronic component overheating and prevents emergency shutdown of the hob during cooking.
Signs of Cooling Fan Failure:
- The induction hob shuts down after a few minutes of operation under load and displays an overheating error (e.g., error code E6, E7, or E9 depending on the model).
- A loud hum, crackling, vibration, or unusual noise appears when the cooking zones are turned on.
- The fan does not rotate when the hob heating is activated.
Key Advantages:

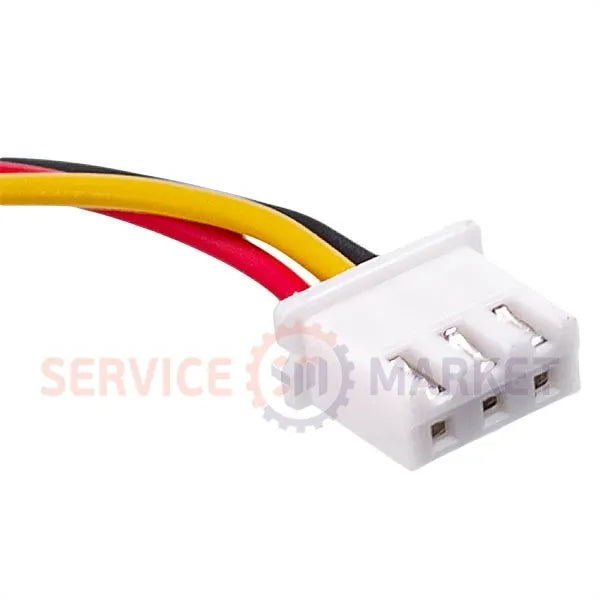

- Original Electrolux Quality: Full compatibility with mounting points, diffuser profile, and the connection plug on the power board.
- High Airflow Performance: Provides effective heat dissipation from the power unit heat sink even when all cooking zones are operating in PowerBoost mode.
- Low Noise Level: High-quality bearings ensure quiet operation and minimal vibration levels.
Compatibility and Application Range:
Used in a wide range of induction and combined hob models from Electrolux Group brands (Electrolux, AEG, Zanussi, IKEA):
- Electrolux Induction Hobs: EHH, EIV, IPE, EHO, EHM series, etc.
- AEG Induction Hobs: IKB, IKE, HKB series, etc.
- Zanussi & IKEA Induction Hobs: Models with the corresponding part code.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Brand / Manufacturer | Electrolux Group (Original) |
| Part Number (P/N) | 140061345033 (140 06 13 45 03/3) |
| Part Type | Power unit / inductor cooling fan (cooler) |
| Purpose | Cooling the IGBT transistor heat sink and control board |
| Current Type / Power Supply | DC / AC (according to the module board specification) |
Package Contents:
- Electrolux 140061345033 cooling fan — 1 pc.
Technician's tip: When replacing the fan, be sure to clean the ventilation channels and air ducts of the hob housing from accumulated dust and grease. We also recommend renewing the thermal paste under the power transistors (IGBT) on the cooling heat sink.
Compatible Models
AEG NII63Q30AZ WE1 949598178 01 NII64B30AB VH5 949598016 NII64B30AZ WD2 949598172 NII74B30AB VT5 949598019 TI63IQ30FB WD8 949598175 TI63IQ30FZ WD9 949598179 TI63IQ3BFB 949598392 TI64IB30FB WD3 949598163 949598451 TI64IB30IZ WD4 949598188 TI64IB3BIZ VW2 949598617 00 V64IIB30IB WL6 949598537 Electrolux CIV63340BK UF2 949492865 CIV634 UF1 949492866 EH60KB6CSC WD5 949599342 EHI9575BF 949163552 EIS67356IZ WE2 949599344 EIS67453 WD1 949599286 EIV634 949492855 EIV63440BW UF3 949492867 HHB660CSC 949599343 KIS67453IT WE7 949599547 949599596 KIS67453IZ 949599605 KIS97550 WE5 949599519 KIS97550BZ 949599518 XH606BCCS WD6 949599369 Y67IS453 949599430 Y67IS453IZ 949599496
