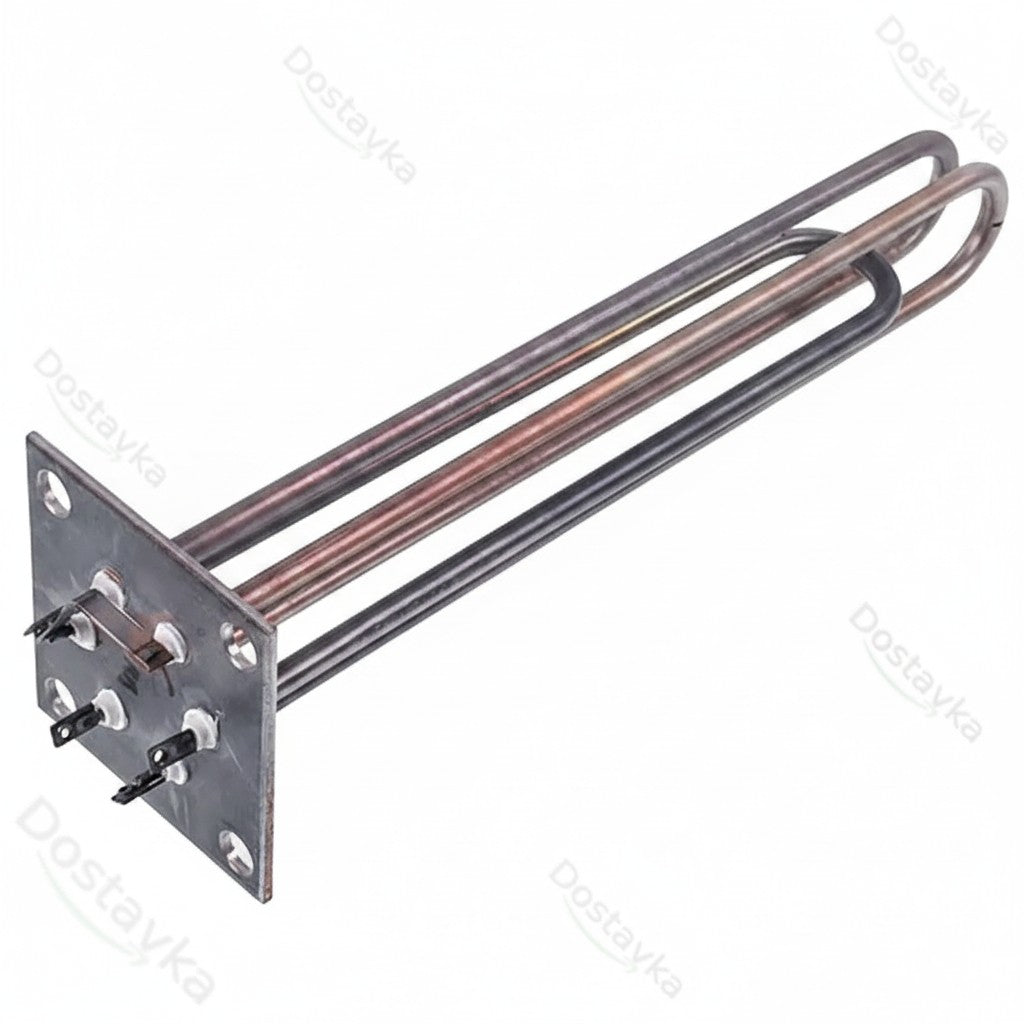

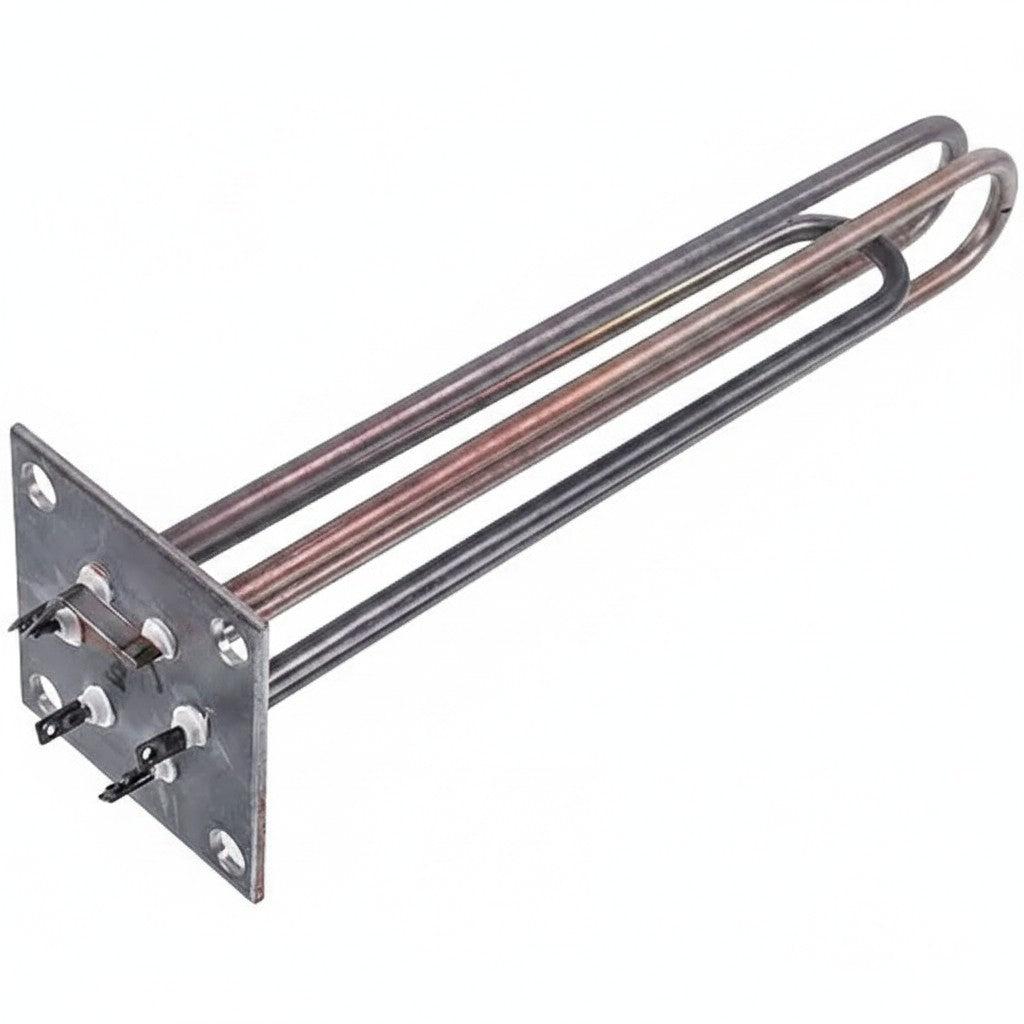

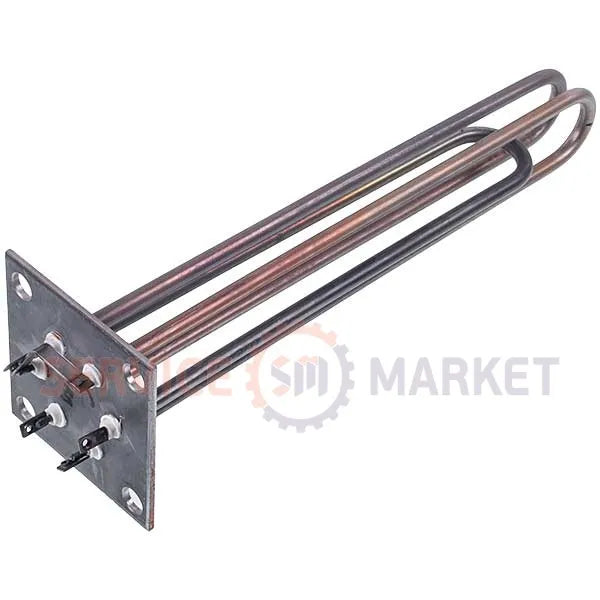

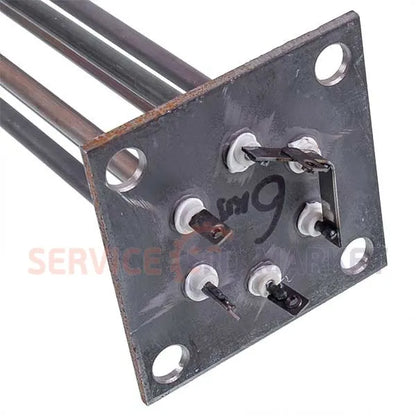

6 kW Heating Element for Electron-T Boiler (Stainless Steel, 100x100 mm Flange, L=340 mm)
Powerful three-phase heating element assembly 6000 W (6 kW) on a 100x100 mm square flange for heating the coolant in electric heating boilers, water heaters, and industrial storage tanks. It consists of three independent U-shaped heating elements with a power of 2 kW each, brazed into a steel flange. Made of high-quality stainless steel, resistant to corrosion and high-temperature operation.
Key Advantages and Features:
- Stepwise power regulation: The presence of three independent 2 kW circuits allows the assembly to be connected in a 2 kW + 2 kW + 2 kW configuration (stepwise heating) to save electricity.
- High-quality stainless steel: The heating tubes are made of heat-resistant stainless steel, which guarantees a long service life even in hard water.

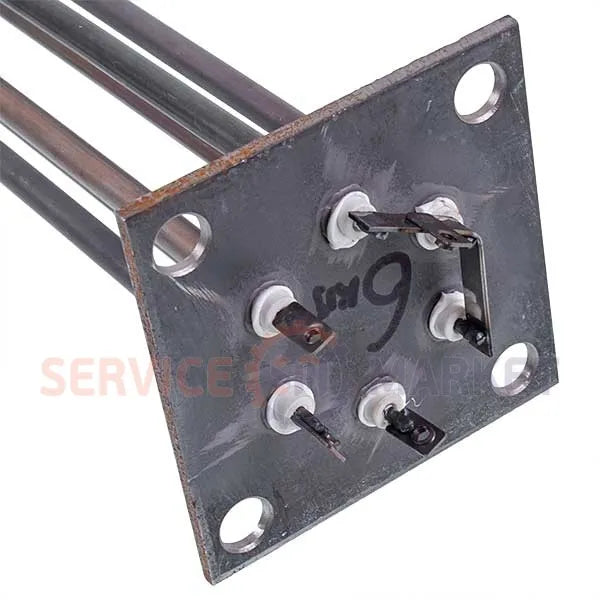

- Standard square mounting (100x100 mm): The flange with 4 mounting holes at the corners ensures a reliable, airtight fix via a sealing gasket.
- Universal connection: Can be connected to a single-phase 220 V network (with jumpers) or to a three-phase 380 V network ("star" or "delta" configuration).
- Convenient flat contacts: Wiring is connected using standard automotive/industrial terminals or screw clamps.
Compatibility and Application:
- Heating equipment: Electric heating boilers Electron-T, Dnipro, Tenko, Kospel, Protherm, Titan, EKO, and analogues.
- Water heating installations: Industrial boilers, steam generators, storage tanks, and domestic hot water (DHW) systems.
Technical Specifications:
| Parameter | Value / Characteristic |
|---|---|
| Part type | Heating element assembly (TENB) for electric boiler |
| Total power | 6000 W (6.0 kW) |
| Element configuration | 3 circuits x 2000 W (3 x 2.0 kW) |
| Rated voltage | 220 V / 380 V (1-phase or 3-phase) |
| Overall length (L) | 340 mm (immersion length) |
| Flange size | Square 100 x 100 mm |
| Mounting holes | 4 holes at the flange corners |
| Tube / flange material | Stainless steel / Steel |
| Contact type | Flat terminals (Faston) |
Package Contents:
- 6 kW heating element assembly (100x100 mm flange) — 1 pc.
Installation tip: When installing the heating element assembly, be sure to use a new heat-resistant paronite or rubber flange gasket. To prevent scale formation and extend the life of the heaters, fill the heating system with treated soft water or a special coolant (antifreeze).
