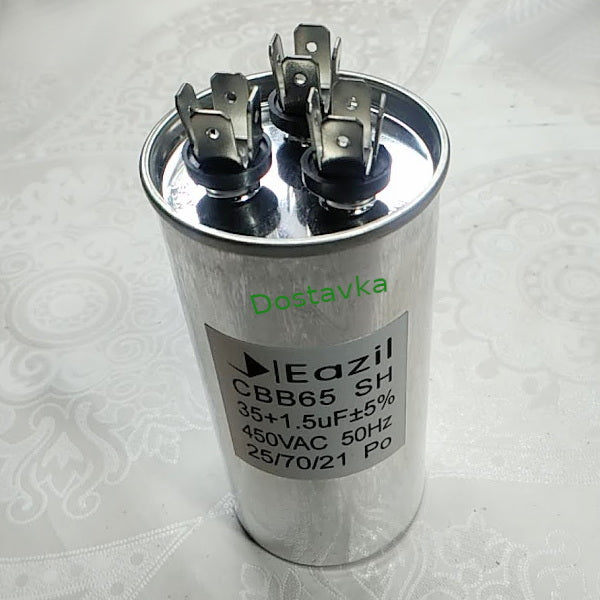

Double capacitor CBB65 35+1.5mf 450V metal case d50 h103 three terminals

Double paired starting capacitor CBB65 with a capacity of 35+1.5mf 450V, in a metal case d50 h103 on three contact terminals. Usually used in air conditioners, where a large capacity is used to start the compressor, and a smaller capacity for the turbine.
Purpose and marking of terminals:
C (Common Connection) – common connection;
HERM (Hermetically Sealed Compressor) – for connecting the working winding of the compressor;
FAN (Fan Condenser) – connection of the fan motor.
Type – starting, phase-shifting
Nominal capacitance (C) 35/1.5 μF
Permissible deviation of capacity (∆С) -+5%
Nominal voltage (U) 450 V
The height of the capacitor is 105.5 mm.
The height of the capacitor with terminals is 117 mm.
Diameter 49.7 mm
Starting capacitors of the CBB65 and SVV60 (SVV65A, SVV65A-1/2, SVV65V) series comply with the provisions and classification of DIN 41 379 and current DIN IEC 60384 - these are film self-renewable capacitors on polypropylene film
