Digital Panel Thermometer TPM-910 Elitech (220V, -30°C to +110°C, Remote Sensor)
The Elitech TPM-910 Digital Panel Mount Thermometer is designed for accurate measurement and display of air, liquid, or surface temperatures. The device is powered directly from the 220V mains, completely eliminating the need for regular battery replacement. It features a bright LED display and a remote waterproof NTC sensor with a long cable.
Key Advantages and Features:
- Direct 220V Mains Power: Connects directly to phase and neutral (220V AC) without the need for external adapters or batteries.
- Panel Mount Housing: Equipped with side spring clips for quick installation into a rectangular cutout in instrument panels, control cabinets, or equipment housings.
- Wide Temperature Range: Measures temperatures from -30°C to +110°C, covering the needs of most domestic and industrial systems.
- Remote Sealed NTC Sensor: Allows for readings to be taken at a distance from the display itself (inside refrigeration chambers, pipelines, incubators, and aquariums).

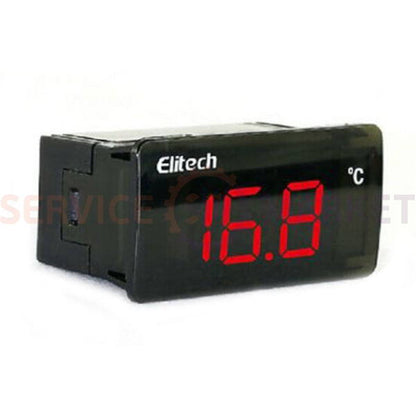

- Informative LED Display: Bright digits are easy to read even in the dark and from a distance.
Applications:
- Refrigeration Equipment: Display cases, freezers, cold rooms, and refrigerated trucks.
- Heating and Climate Control: Boilers, water heaters, heating stations, underfloor heating, and ventilation ducts.
- Agriculture and Domestic Use: Incubators, brooders, smokehouses, fermentation tanks, autoclaves, and drying cabinets.
Technical Specifications:
| Parameter | Value / Characteristic |
|---|---|
| Brand / Model | Elitech TPM-910 |
| Device Type | Digital panel mount thermometer |
| Temperature Measurement Range | -30°C to +110°C |
| Resolution | 0.1°C (at T < 100°C) / 1°C (at T ≥ 100°C) |
| Measurement Accuracy | ± 1°C |
| Supply Voltage | 220V AC ± 10% (50/60 Hz) |
| Power Consumption | Less than 3W |
| Sensor Type | Remote NTC sensor in plastic/metal sleeve |
| Sensor Cable Length | ~ 1.5 – 2.0 meters |
| Mounting Dimensions (Panel Cutout) | Standard rectangular cutout ~ 58.4 x 25.7 mm |

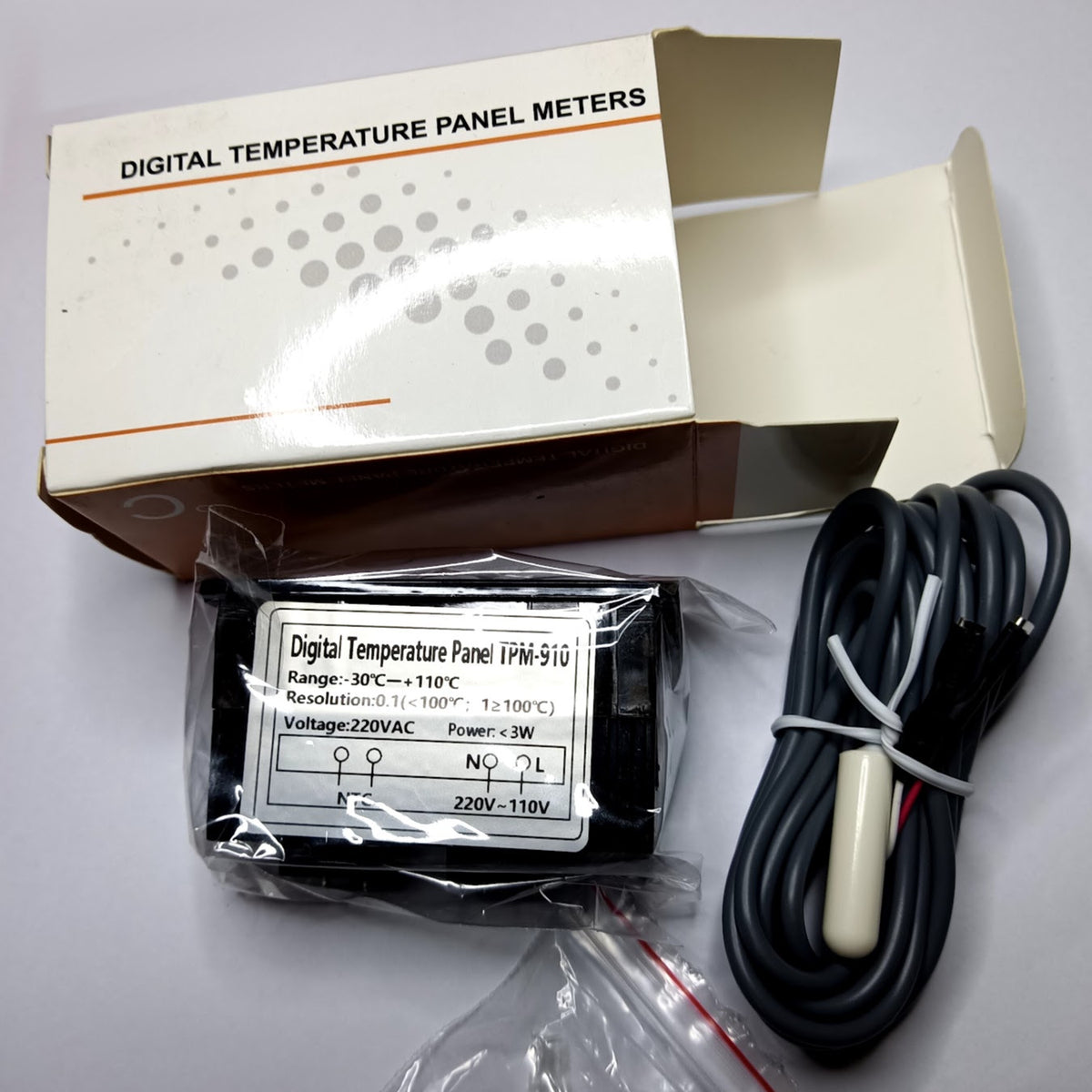

Package Contents:

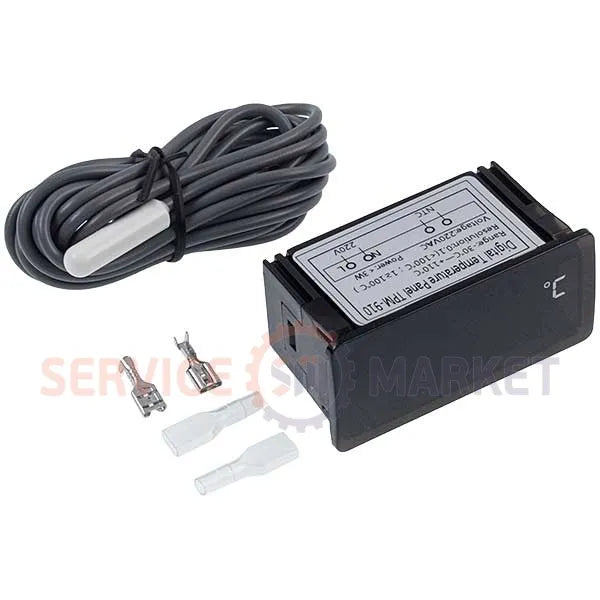

- Elitech TPM-910 Digital Thermometer — 1 pc.
- Remote NTC temperature sensor with cable — 1 pc.
- Factory packaging box — 1 pc.
Connection Tip: A wiring diagram is provided on the back sticker of the device: the "NTC" terminals are des
